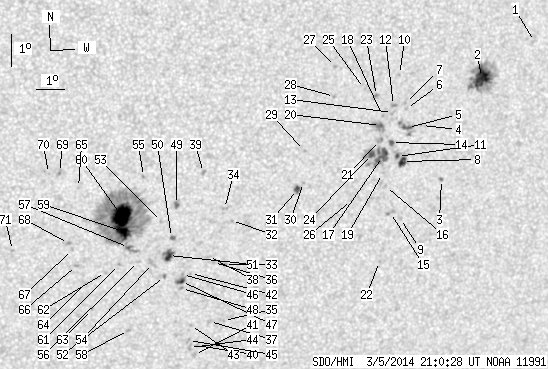

SDO HMI 2014-03-05 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 92.22 | 438.36 | 51.65 | 244.71 | -25.42 | 89.26 | 20.91 | 224.56 | 0.4612 | -144.1 | -74.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 0.71 | -20.30 | 98.81 | 30.46 | 243.02 | 0.5357 | 621.0 | 429.2 | |
| 18.58 | 56.95 | 10.76 | 33.00 | -21.51 | 97.13 | 28.78 | 239.80 | 0.5204 | 1049.4 | 480.7 | |
| 0.00 | 1.64 | 0.00 | 0.96 | -24.72 | 96.40 | 28.05 | 233.72 | 0.5320 | -768.0 | -661.6 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -23.09 | 95.29 | 26.94 | 235.59 | 0.5073 | 599.0 | 387.5 | |
| 2.16 | 11.93 | 1.24 | 6.82 | -23.18 | 94.80 | 26.45 | 235.02 | 0.5019 | 761.4 | 427.7 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -22.60 | 94.64 | 26.30 | 235.92 | 0.4958 | 736.0 | 517.4 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -22.42 | 94.57 | 26.22 | 236.19 | 0.4937 | 716.0 | 606.2 | |
| 4.49 | 11.23 | 2.58 | 6.45 | -24.24 | 94.85 | 26.50 | 233.22 | 0.5101 | 705.2 | 495.8 | |
| 0.00 | 1.47 | 0.00 | 0.86 | -26.01 | 95.19 | 26.85 | 230.56 | 0.5276 | 342.0 | 396.6 | |
| 0.00 | 1.12 | 0.00 | 0.63 | -21.57 | 94.19 | 25.84 | 237.42 | 0.4831 | 808.0 | 664.0 | |
| 1.12 | -8.00 | 0.64 | -8.00 | -24.09 | 94.63 | 26.29 | 233.28 | 0.5065 | 821.6 | 999999 | |
| 0.00 | 2.42 | 0.00 | 1.37 | -22.53 | 94.16 | 25.82 | 235.63 | 0.4893 | 897.0 | 760.2 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -22.75 | 94.17 | 25.82 | 235.24 | 0.4910 | 638.0 | 625.5 | |
| 1.21 | 2.59 | 0.69 | 1.48 | -23.67 | 94.33 | 25.98 | 233.73 | 0.4996 | 838.6 | 696.2 | |
| 0.00 | 3.02 | 0.00 | 1.75 | -25.85 | 94.78 | 26.44 | 230.47 | 0.5216 | 727.0 | 725.5 | |
| 0.00 | 1.21 | 0.00 | 0.70 | -25.05 | 94.41 | 26.07 | 231.45 | 0.5110 | 605.0 | 441.4 | |
| 7.52 | 30.94 | 4.29 | 17.65 | -24.12 | 94.10 | 25.75 | 232.74 | 0.5002 | 907.4 | 771.7 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -22.86 | 93.83 | 25.49 | 234.74 | 0.4876 | 878.0 | 780.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -24.65 | 94.21 | 25.87 | 231.94 | 0.5056 | 501.0 | 441.2 | |
| 0.78 | 9.33 | 0.44 | 5.29 | -23.17 | 93.83 | 25.48 | 234.18 | 0.4898 | 1011.7 | 866.8 | |
| 0.00 | 3.63 | 0.00 | 2.07 | -23.63 | 93.88 | 25.54 | 233.40 | 0.4940 | 907.0 | 838.2 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -27.40 | 94.76 | 26.41 | 227.96 | 0.5339 | 653.0 | 621.8 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -22.26 | 93.50 | 25.16 | 235.55 | 0.4791 | 969.0 | 842.2 | |
| 2.85 | -17.00 | 1.62 | -17.00 | -24.08 | 93.69 | 25.34 | 232.44 | 0.4950 | 1065.3 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.24 | -22.06 | 93.04 | 24.70 | 235.48 | 0.4719 | 533.0 | 461.0 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -25.54 | 93.28 | 24.94 | 229.54 | 0.5020 | 746.0 | 652.9 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -21.44 | 91.91 | 23.57 | 235.60 | 0.4529 | 865.0 | 739.1 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -22.36 | 92.04 | 23.69 | 233.96 | 0.4615 | 886.0 | 729.7 | |
| 0.00 | 1.21 | 0.00 | 0.68 | -24.07 | 91.30 | 22.95 | 230.03 | 0.4665 | 708.0 | 617.1 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -25.06 | 91.45 | 23.11 | 228.45 | 0.4770 | 691.0 | 638.6 | |
| 2.16 | 3.80 | 1.22 | 2.14 | -25.29 | 91.28 | 22.94 | 227.88 | 0.4771 | 943.4 | 782.7 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -26.36 | 89.14 | 20.79 | 223.54 | 0.4637 | -615.0 | -591.0 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -27.76 | 89.16 | 20.81 | 221.33 | 0.4781 | -808.0 | -685.9 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -25.99 | 88.82 | 20.48 | 223.75 | 0.4566 | -723.0 | -644.7 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -29.54 | 89.50 | 21.15 | 219.08 | 0.5000 | -666.0 | -582.6 | |
| 0.00 | 1.38 | 0.00 | 0.78 | -27.71 | 88.76 | 20.41 | 220.90 | 0.4735 | -636.0 | -502.5 | |
| 0.00 | 2.16 | 0.00 | 1.23 | -29.59 | 88.99 | 20.65 | 218.38 | 0.4959 | -763.0 | -581.4 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -27.53 | 88.54 | 20.20 | 220.91 | 0.4695 | -716.0 | -618.6 | |
| 0.00 | 2.25 | 0.00 | 1.24 | -24.90 | 87.90 | 19.55 | 224.42 | 0.4355 | -904.0 | -635.9 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -30.38 | 88.69 | 20.34 | 216.89 | 0.5016 | -517.0 | -482.5 | |
| 0.00 | 2.94 | 0.00 | 1.68 | -30.67 | 88.68 | 20.33 | 216.48 | 0.5047 | -640.0 | -443.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | -28.09 | 88.00 | 19.66 | 219.33 | 0.4702 | -654.0 | -567.0 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -29.75 | 88.33 | 19.99 | 217.33 | 0.4914 | -737.0 | -585.7 | |
| 0.00 | 2.68 | 0.00 | 1.53 | -30.46 | 88.45 | 20.10 | 216.48 | 0.5003 | -687.0 | -636.2 | |
| 0.00 | 1.99 | 0.00 | 1.13 | -30.23 | 88.36 | 20.02 | 216.69 | 0.4970 | -773.0 | -630.0 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -28.13 | 87.73 | 19.38 | 218.90 | 0.4680 | -665.0 | -531.0 | |
| 2.42 | 4.75 | 1.36 | 2.66 | -28.36 | 87.73 | 19.39 | 218.57 | 0.4705 | 417.6 | 390.1 | |
| 0.00 | 1.30 | 0.00 | 0.73 | -28.58 | 87.77 | 19.43 | 218.30 | 0.4733 | 762.0 | 584.2 | |
| 0.95 | 4.06 | 0.52 | 2.24 | -25.93 | 87.13 | 18.78 | 221.58 | 0.4381 | 934.5 | 741.4 | |
| 0.35 | 2.51 | 0.19 | 1.39 | -26.98 | 87.13 | 18.78 | 219.88 | 0.4494 | -887.0 | -705.2 | |
| 4.93 | 10.80 | 2.74 | 6.00 | -27.55 | 87.12 | 18.78 | 218.97 | 0.4557 | -844.3 | -698.2 | |
| 0.00 | 1.30 | 0.00 | 0.72 | -28.22 | 87.10 | 18.75 | 217.92 | 0.4629 | -695.0 | -560.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -26.49 | 86.69 | 18.35 | 220.05 | 0.4397 | -639.0 | -419.5 | |
| 0.00 | 4.75 | 0.00 | 2.64 | -27.82 | 86.60 | 18.26 | 217.82 | 0.4538 | -588.0 | -380.9 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -25.10 | 85.85 | 17.51 | 221.15 | 0.4158 | 882.0 | 607.7 | |
| 0.00 | 1.38 | 0.00 | 0.77 | -27.78 | 86.10 | 17.75 | 217.17 | 0.4485 | -316.0 | -294.3 | |
| 0.78 | 207.32 | 0.43 | 113.36 | -27.35 | 85.68 | 17.33 | 217.20 | 0.4395 | -779.2 | -421.5 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -29.99 | 86.13 | 17.79 | 214.04 | 0.4747 | -677.0 | -465.1 | |
| 11.67 | -57.00 | 6.40 | -57.00 | -26.85 | 85.39 | 17.04 | 217.54 | 0.4310 | -1050.7 | 999999 | |
| 30.25 | -57.00 | 16.53 | -57.00 | -26.35 | 85.28 | 16.93 | 218.17 | 0.4241 | -1403.7 | 999999 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.89 | 85.45 | 17.10 | 216.03 | 0.4438 | -902.0 | -741.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -28.16 | 85.00 | 16.65 | 214.95 | 0.4430 | -541.0 | -460.8 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -29.36 | 84.73 | 16.39 | 212.86 | 0.4552 | -677.0 | -560.5 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -28.54 | 84.35 | 16.01 | 213.41 | 0.4418 | -735.0 | -695.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -25.52 | 83.68 | 15.34 | 216.94 | 0.3989 | -660.0 | -619.4 | |
| 0.00 | 1.21 | 0.00 | 0.66 | -27.97 | 83.95 | 15.61 | 213.58 | 0.4314 | -756.0 | -594.8 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -27.47 | 83.74 | 15.40 | 213.97 | 0.4233 | -834.0 | -668.5 | |
| 0.00 | 1.90 | 0.00 | 1.04 | -27.29 | 83.58 | 15.23 | 213.97 | 0.4196 | -942.0 | -797.3 | |
| 0.00 | 2.68 | 0.00 | 1.44 | -25.07 | 82.98 | 14.63 | 216.47 | 0.3867 | -955.0 | -771.4 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -25.11 | 82.61 | 14.27 | 215.73 | 0.3837 | -612.0 | -608.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -27.56 | 81.68 | 13.33 | 210.28 | 0.4071 | -703.0 | -585.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
