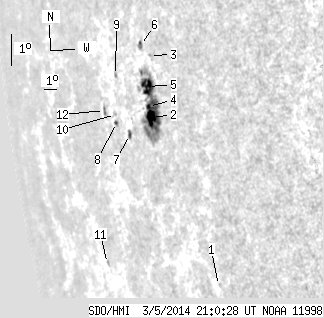

SDO HMI 2014-03-05 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.36 | 104.13 | 34.41 | 137.43 | -10.00 | 359.56 | -68.79 | 97.89 | 0.9283 | 415.7 | 192.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.69 | 0.00 | 0.81 | -15.85 | 2.29 | -66.06 | 104.15 | 0.9085 | 362.0 | 360.4 | |
| 9.94 | 86.33 | 12.89 | 111.73 | -10.46 | 359.98 | -68.36 | 98.35 | 0.9256 | 625.4 | 296.3 | |
| 0.00 | 0.69 | 0.00 | 0.88 | -8.65 | 0.59 | -67.76 | 96.36 | 0.9224 | -344.0 | -230.0 | |
| 1.90 | -2.00 | 2.48 | -2.00 | -10.11 | 359.89 | -68.45 | 97.99 | 0.9263 | 451.9 | 999999 | |
| 12.88 | -2.00 | 16.65 | -2.00 | -9.53 | 0.07 | -68.28 | 97.35 | 0.9254 | 596.2 | 999999 | |
| 0.00 | 3.89 | 0.00 | 5.07 | -8.28 | 359.99 | -68.35 | 96.01 | 0.9265 | -720.0 | -358.1 | |
| 0.69 | 3.28 | 0.98 | 4.64 | -10.73 | 357.93 | -70.42 | 98.79 | 0.9382 | 174.0 | 143.4 | |
| 0.95 | 1.73 | 1.41 | 2.56 | -10.25 | 356.97 | -71.38 | 98.35 | 0.9440 | -438.7 | -387.6 | |
| 0.00 | 1.56 | 0.00 | 2.25 | -8.90 | 357.55 | -70.79 | 96.87 | 0.9412 | 337.0 | 273.5 | |
| 0.00 | 1.30 | 0.00 | 1.92 | -10.01 | 357.00 | -71.35 | 98.09 | 0.9439 | -277.0 | -202.5 | |
| 0.00 | 1.38 | 0.00 | 2.47 | -14.10 | 353.18 | -75.16 | 102.64 | 0.9621 | -410.0 | -359.7 | |
| 0.00 | 3.28 | 0.00 | 5.10 | -9.78 | 356.05 | -72.30 | 97.92 | 0.9493 | -395.0 | -286.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
