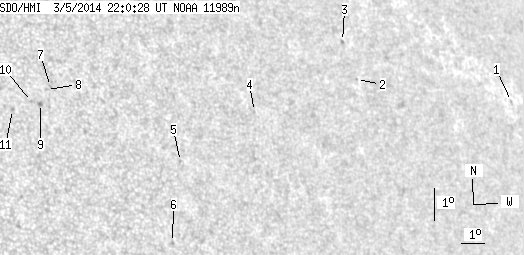

SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.32 | 0.00 | 7.75 | 9.95 | 107.65 | 39.85 | 293.31 | 0.6831 | 328.7 | 299.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.89 | 11.71 | 122.82 | 55.02 | 288.74 | 0.8494 | -471.0 | -414.8 | |
| 0.00 | 0.69 | 0.00 | 0.54 | 11.63 | 115.23 | 47.44 | 291.46 | 0.7775 | -316.0 | -311.5 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 12.78 | 114.88 | 47.08 | 293.02 | 0.7782 | -539.0 | -409.3 | |
| 0.00 | 0.60 | 0.00 | 0.43 | 10.20 | 110.56 | 42.76 | 291.78 | 0.7219 | 436.0 | 411.3 | |
| 0.00 | 0.78 | 0.00 | 0.52 | 8.38 | 107.32 | 39.52 | 290.95 | 0.6765 | 652.0 | 498.3 | |
| 0.00 | 1.21 | 0.00 | 0.79 | 5.86 | 106.74 | 38.95 | 287.65 | 0.6586 | 644.0 | 534.7 | |
| 0.00 | 0.95 | 0.00 | 0.61 | 10.34 | 102.64 | 34.84 | 296.48 | 0.6302 | 533.0 | 484.9 | |
| 0.00 | 0.95 | 0.00 | 0.60 | 10.23 | 102.48 | 34.68 | 296.44 | 0.6277 | 606.0 | 497.3 | |
| 0.00 | 1.99 | 0.00 | 1.25 | 9.78 | 102.20 | 34.40 | 295.97 | 0.6216 | 711.0 | 636.7 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 9.82 | 101.87 | 34.08 | 296.24 | 0.6179 | 689.0 | 580.5 | |
| 0.00 | 1.56 | 0.00 | 0.97 | 9.52 | 101.15 | 33.35 | 296.31 | 0.6072 | 671.0 | 559.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
