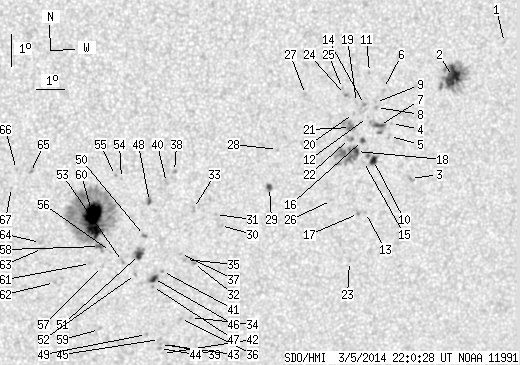

SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 84.87 | 408.36 | 47.63 | 228.79 | -25.29 | 89.44 | 21.64 | 225.67 | 0.4679 | -175.2 | -58.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.76 | -20.36 | 98.80 | 31.00 | 243.22 | 0.5430 | 639.0 | 499.3 | |
| 18.84 | 56.70 | 10.97 | 33.04 | -21.51 | 97.13 | 29.34 | 240.18 | 0.5275 | 1013.8 | 433.8 | |
| 0.00 | 2.42 | 0.00 | 1.42 | -24.73 | 96.34 | 28.54 | 234.10 | 0.5379 | -792.0 | -614.7 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -23.07 | 95.25 | 27.45 | 236.04 | 0.5134 | 494.0 | 394.1 | |
| 0.00 | 1.90 | 0.00 | 1.10 | -23.48 | 95.26 | 27.47 | 235.35 | 0.5163 | 476.0 | 367.9 | |
| 0.00 | 0.69 | 0.00 | 0.39 | -22.02 | 94.73 | 26.94 | 237.51 | 0.4999 | 330.0 | 441.8 | |
| 2.94 | 12.36 | 1.69 | 7.10 | -23.16 | 94.83 | 27.03 | 235.55 | 0.5088 | 654.2 | 316.9 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -22.61 | 94.60 | 26.81 | 236.34 | 0.5023 | 759.0 | 563.7 | |
| 0.00 | 0.95 | 0.00 | 0.54 | -22.46 | 94.53 | 26.74 | 236.55 | 0.5004 | 714.0 | 644.9 | |
| 4.15 | 9.94 | 2.40 | 5.74 | -24.25 | 94.85 | 27.06 | 233.69 | 0.5168 | 677.5 | 567.9 | |
| 0.00 | 1.04 | 0.00 | 0.59 | -21.55 | 94.14 | 26.34 | 237.88 | 0.4893 | 753.0 | 544.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -22.93 | 94.35 | 26.55 | 235.54 | 0.5013 | 588.0 | 455.9 | |
| 0.00 | 1.12 | 0.00 | 0.66 | -25.88 | 94.95 | 27.15 | 231.06 | 0.5300 | 733.0 | 598.0 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -22.54 | 94.16 | 26.36 | 236.09 | 0.4962 | 881.0 | 799.2 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -24.30 | 94.50 | 26.70 | 233.30 | 0.5129 | 408.0 | 350.5 | |
| 1.21 | 2.77 | 0.69 | 1.59 | -23.65 | 94.32 | 26.52 | 234.26 | 0.5060 | 791.9 | 649.7 | |
| 0.00 | 1.81 | 0.00 | 1.06 | -25.92 | 94.70 | 26.90 | 230.77 | 0.5275 | 832.0 | 696.1 | |
| 1.90 | 27.05 | 1.09 | 15.50 | -24.00 | 94.18 | 26.38 | 233.52 | 0.5069 | 857.0 | 828.9 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -22.49 | 93.86 | 26.06 | 235.92 | 0.4922 | 783.0 | 655.7 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -22.84 | 93.82 | 26.03 | 235.26 | 0.4941 | 758.0 | 664.6 | |
| 1.30 | 9.68 | 0.74 | 5.51 | -23.27 | 93.80 | 26.01 | 234.47 | 0.4970 | 930.7 | 823.1 | |
| 0.00 | 3.54 | 0.00 | 2.02 | -23.61 | 93.84 | 26.04 | 233.90 | 0.4999 | 874.0 | 804.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -27.44 | 94.75 | 26.95 | 228.39 | 0.5401 | 670.0 | 566.0 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -22.27 | 93.42 | 25.63 | 235.95 | 0.4851 | 825.0 | 787.8 | |
| 0.00 | 0.86 | 0.00 | 0.49 | -22.09 | 93.28 | 25.48 | 236.15 | 0.4820 | 720.0 | 616.7 | |
| 0.00 | 0.52 | 0.00 | 0.30 | -25.57 | 93.62 | 25.82 | 230.36 | 0.5123 | 819.0 | 610.3 | |
| 0.00 | 1.81 | 0.00 | 1.02 | -22.34 | 92.02 | 24.22 | 234.52 | 0.4679 | 775.0 | 659.4 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -24.08 | 91.35 | 23.56 | 230.67 | 0.4737 | 646.0 | 643.6 | |
| 1.99 | 3.80 | 1.12 | 2.15 | -25.27 | 91.31 | 23.51 | 228.54 | 0.4834 | 926.6 | 731.0 | |
| 0.00 | 1.99 | 0.00 | 1.12 | -26.54 | 89.80 | 22.01 | 224.73 | 0.4784 | -544.0 | -481.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -26.20 | 89.56 | 21.76 | 225.00 | 0.4725 | -776.0 | -605.4 | |
| 0.00 | 1.64 | 0.00 | 0.93 | -27.77 | 89.08 | 21.29 | 221.89 | 0.4831 | -834.0 | -689.2 | |
| 0.00 | 2.51 | 0.00 | 1.40 | -26.04 | 88.75 | 20.95 | 224.27 | 0.4622 | -830.0 | -654.2 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -29.50 | 89.34 | 21.55 | 219.62 | 0.5034 | -624.0 | -541.9 | |
| 0.00 | 1.56 | 0.00 | 0.88 | -27.66 | 88.77 | 20.98 | 221.69 | 0.4787 | -692.0 | -547.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -29.54 | 88.99 | 21.19 | 219.12 | 0.5004 | -565.0 | -386.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -27.48 | 88.56 | 20.76 | 221.71 | 0.4747 | -643.0 | -631.1 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -24.92 | 87.88 | 20.08 | 225.10 | 0.4415 | -885.0 | -645.2 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -30.40 | 88.70 | 20.90 | 217.56 | 0.5069 | -502.0 | -496.1 | |
| 0.00 | 3.02 | 0.00 | 1.67 | -25.27 | 87.66 | 19.86 | 224.19 | 0.4426 | -221.0 | -248.9 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -28.07 | 88.03 | 20.23 | 220.11 | 0.4756 | -633.0 | -612.7 | |
| 0.00 | 0.60 | 0.00 | 0.35 | -30.70 | 88.58 | 20.78 | 217.01 | 0.5090 | -483.0 | -328.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -30.41 | 88.44 | 20.65 | 217.23 | 0.5046 | -761.0 | -659.9 | |
| 0.00 | 1.38 | 0.00 | 0.79 | -30.54 | 88.43 | 20.64 | 217.04 | 0.5060 | -655.0 | -567.3 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -30.25 | 88.37 | 20.57 | 217.37 | 0.5022 | -826.0 | -572.5 | |
| 3.11 | 5.01 | 1.75 | 2.82 | -28.31 | 87.75 | 19.96 | 219.40 | 0.4754 | 249.7 | 232.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -28.56 | 87.76 | 19.97 | 219.03 | 0.4783 | 728.0 | 609.6 | |
| 1.04 | 2.85 | 0.57 | 1.57 | -25.89 | 87.17 | 19.37 | 222.48 | 0.4438 | 923.8 | 813.1 | |
| 0.00 | 1.47 | 0.00 | 0.84 | -30.11 | 87.86 | 20.07 | 216.93 | 0.4961 | -753.0 | -618.6 | |
| 0.43 | 1.99 | 0.24 | 1.10 | -26.96 | 87.18 | 19.38 | 220.73 | 0.4553 | -818.2 | -685.6 | |
| 4.49 | 10.20 | 2.51 | 5.68 | -27.57 | 87.11 | 19.32 | 219.68 | 0.4611 | -832.2 | -667.2 | |
| 0.00 | 1.64 | 0.00 | 0.92 | -28.21 | 87.09 | 19.29 | 218.67 | 0.4679 | -548.0 | -296.6 | |
| 0.00 | 1.90 | 0.00 | 1.06 | -27.81 | 86.55 | 18.76 | 218.54 | 0.4584 | -673.0 | -521.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -25.21 | 86.08 | 18.29 | 222.13 | 0.4251 | 757.0 | 583.9 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -25.12 | 85.86 | 18.07 | 221.95 | 0.4218 | 782.0 | 662.9 | |
| 0.00 | 0.78 | 0.00 | 0.43 | -27.51 | 86.07 | 18.28 | 218.33 | 0.4504 | -655.0 | -570.8 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -27.99 | 85.87 | 18.08 | 217.31 | 0.4540 | -333.0 | -258.0 | |
| 1.64 | 193.25 | 0.91 | 105.91 | -27.37 | 85.66 | 17.87 | 217.96 | 0.4448 | -747.7 | -442.0 | |
| 0.00 | 1.04 | 0.00 | 0.58 | -30.01 | 86.13 | 18.34 | 214.78 | 0.4796 | -666.0 | -470.0 | |
| 41.83 | -58.00 | 22.95 | -58.00 | -26.49 | 85.31 | 17.52 | 218.83 | 0.4314 | -1243.6 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -27.91 | 85.43 | 17.64 | 216.79 | 0.4490 | -916.0 | -681.6 | |
| 0.00 | 1.38 | 0.00 | 0.76 | -28.56 | 84.27 | 16.48 | 214.10 | 0.4461 | -798.0 | -692.9 | |
| 0.00 | 2.16 | 0.00 | 1.18 | -27.49 | 83.68 | 15.89 | 214.74 | 0.4280 | -732.0 | -610.3 | |
| 0.00 | 1.04 | 0.00 | 0.57 | -27.31 | 83.59 | 15.79 | 214.87 | 0.4248 | -805.0 | -721.8 | |
| 0.00 | 1.56 | 0.00 | 0.84 | -25.12 | 82.95 | 15.15 | 217.30 | 0.3923 | -949.0 | -784.1 | |
| 0.00 | 1.04 | 0.00 | 0.56 | -25.04 | 82.46 | 14.67 | 216.58 | 0.3867 | -846.0 | -647.6 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -25.61 | 82.36 | 14.57 | 215.46 | 0.3927 | -489.0 | -470.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
