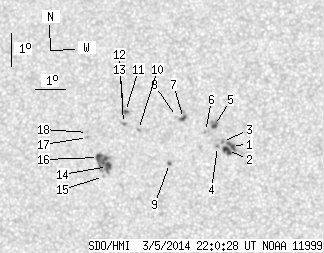

SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.15 | 62.22 | 9.87 | 33.86 | -16.84 | 44.79 | -23.00 | 115.30 | 0.4152 | 6.4 | -84.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.77 | 11.93 | 1.48 | 6.39 | -16.99 | 47.23 | -20.56 | 117.74 | 0.3812 | 1159.1 | 799.2 | |
| 3.89 | -1.00 | 2.09 | -1.00 | -17.13 | 47.08 | -20.71 | 117.94 | 0.3843 | 916.0 | 999999 | |
| 0.00 | 1.38 | 0.00 | 0.74 | -16.85 | 46.95 | -20.85 | 117.14 | 0.3844 | 997.0 | 838.6 | |
| 0.00 | 1.30 | 0.00 | 0.70 | -17.00 | 46.76 | -21.03 | 117.31 | 0.3879 | 804.0 | 651.1 | |
| 1.56 | 6.31 | 0.83 | 3.38 | -16.36 | 46.74 | -21.06 | 115.75 | 0.3844 | 1114.4 | 812.9 | |
| 0.00 | 2.07 | 0.00 | 1.11 | -16.53 | 46.42 | -21.38 | 115.86 | 0.3900 | 853.0 | 727.4 | |
| 1.64 | 5.36 | 0.89 | 2.89 | -16.10 | 45.74 | -22.06 | 114.26 | 0.3975 | 876.4 | 616.6 | |
| 0.00 | 1.21 | 0.00 | 0.65 | -16.03 | 45.51 | -22.28 | 113.91 | 0.4004 | 218.0 | 212.2 | |
| 0.69 | 1.90 | 0.38 | 1.03 | -17.43 | 45.10 | -22.70 | 116.80 | 0.4142 | 683.0 | 559.0 | |
| 0.00 | 1.30 | 0.00 | 0.71 | -16.36 | 44.19 | -23.60 | 113.66 | 0.4213 | -779.0 | -690.4 | |
| 0.95 | 2.16 | 0.52 | 1.18 | -15.80 | 43.82 | -23.97 | 112.13 | 0.4238 | -993.5 | -863.9 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -16.15 | 43.71 | -24.09 | 112.85 | 0.4272 | -878.0 | -755.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -15.64 | 43.77 | -24.02 | 111.75 | 0.4238 | -851.0 | -706.8 | |
| 3.80 | 21.00 | 2.10 | 11.60 | -17.42 | 42.99 | -24.81 | 115.10 | 0.4439 | -1083.6 | -818.8 | |
| 0.00 | 1.12 | 0.00 | 0.62 | -17.71 | 42.81 | -24.99 | 115.59 | 0.4481 | -593.0 | -437.8 | |
| 2.85 | -14.00 | 1.58 | -14.00 | -17.13 | 42.72 | -25.07 | 114.30 | 0.4462 | -813.7 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -16.51 | 42.43 | -25.36 | 112.78 | 0.4473 | -1041.0 | -821.4 | |
| 0.00 | 0.95 | 0.00 | 0.53 | -16.36 | 42.45 | -25.34 | 112.47 | 0.4463 | -797.0 | -694.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
