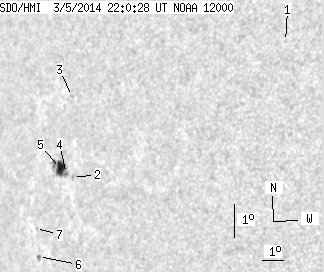

SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.37 | 24.98 | 9.03 | 21.66 | -10.57 | 12.07 | -55.73 | 97.84 | 0.8218 | 432.5 | 213.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 22:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.54 | -7.71 | 23.14 | -44.66 | 93.61 | 0.7003 | -474.0 | -385.6 | |
| 0.00 | 1.12 | 0.00 | 0.96 | -10.76 | 12.49 | -55.31 | 98.07 | 0.8180 | 632.0 | 573.6 | |
| 0.00 | 1.38 | 0.00 | 1.17 | -8.38 | 13.07 | -54.73 | 95.13 | 0.8131 | 471.0 | 408.9 | |
| 0.43 | 18.67 | 0.37 | 16.23 | -10.61 | 12.21 | -55.59 | 97.90 | 0.8208 | 648.8 | 356.1 | |
| 9.25 | -4.00 | 8.03 | -4.00 | -10.43 | 11.93 | -55.86 | 97.69 | 0.8236 | 677.6 | 999999 | |
| 0.69 | 2.51 | 0.63 | 2.29 | -12.88 | 9.92 | -57.88 | 100.67 | 0.8423 | -572.0 | -390.5 | |
| 0.00 | 0.52 | 0.00 | 0.47 | -12.04 | 10.04 | -57.75 | 99.68 | 0.8412 | -531.0 | -559.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
