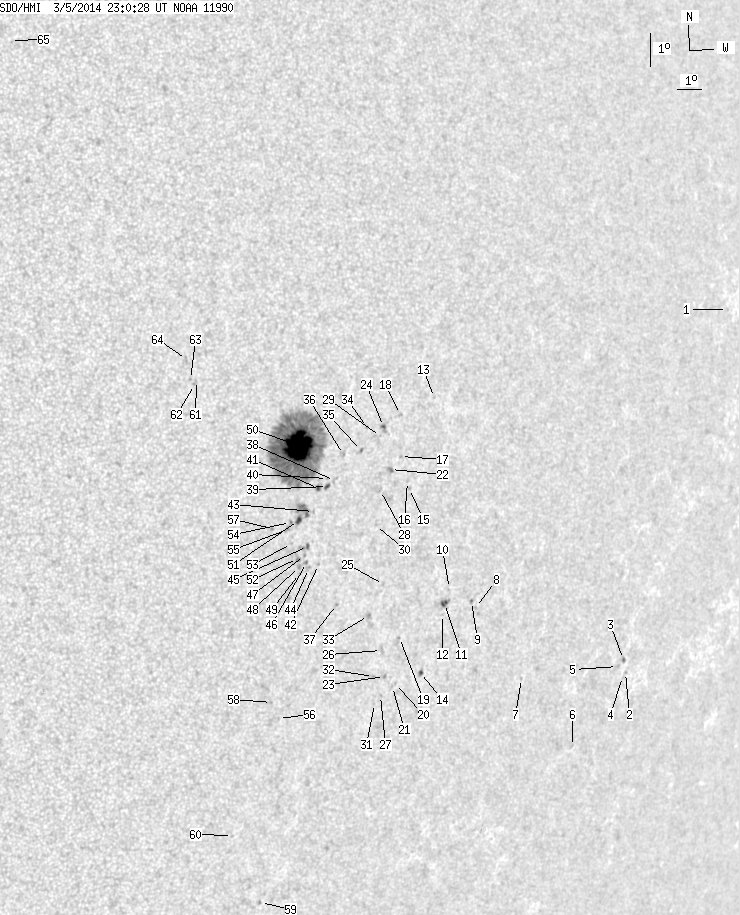

SDO HMI 2014-03-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.52 | 420.90 | 39.24 | 274.31 | -13.05 | 107.95 | 40.71 | 258.43 | 0.6502 | 155.3 | 225.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-05 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.81 | -6.39 | 125.79 | 58.54 | 266.97 | 0.8510 | 297.0 | 340.3 | |
| 0.00 | 1.30 | 0.00 | 1.15 | -17.61 | 123.69 | 56.45 | 253.62 | 0.8301 | 400.0 | 369.5 | |
| 0.52 | 1.82 | 0.45 | 1.59 | -17.24 | 123.40 | 56.16 | 254.05 | 0.8272 | 470.3 | 404.5 | |
| 0.00 | 0.43 | 0.00 | 0.38 | -17.74 | 123.59 | 56.34 | 253.45 | 0.8292 | 292.0 | 334.6 | |
| 0.00 | 1.82 | 0.00 | 1.58 | -17.47 | 123.18 | 55.93 | 253.75 | 0.8252 | 592.0 | 487.2 | |
| 0.00 | 1.30 | 0.00 | 1.10 | -20.07 | 121.95 | 54.71 | 250.48 | 0.8157 | 475.0 | 390.5 | |
| 0.00 | 0.78 | 0.00 | 0.61 | -18.31 | 118.46 | 51.21 | 252.28 | 0.7792 | 445.0 | 371.1 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -16.40 | 115.53 | 48.28 | 254.43 | 0.7457 | 515.0 | 413.9 | |
| 0.00 | 1.21 | 0.00 | 0.89 | -16.24 | 115.29 | 48.04 | 254.62 | 0.7428 | 686.0 | 623.7 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -15.95 | 114.18 | 46.94 | 254.90 | 0.7300 | -290.0 | -207.8 | |
| 2.42 | 5.53 | 1.75 | 3.99 | -16.41 | 114.10 | 46.85 | 254.25 | 0.7295 | -691.3 | -390.4 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -16.75 | 114.11 | 46.87 | 253.80 | 0.7301 | -344.0 | -310.7 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -10.36 | 112.17 | 44.93 | 262.59 | 0.7029 | 587.0 | 497.5 | |
| 1.04 | 2.85 | 0.75 | 2.05 | -18.56 | 113.72 | 46.48 | 251.26 | 0.7282 | -522.2 | -398.0 | |
| 0.00 | 1.47 | 0.00 | 1.01 | -13.14 | 111.67 | 44.43 | 258.59 | 0.6978 | -579.0 | -415.2 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -12.94 | 111.54 | 44.30 | 258.87 | 0.6961 | -576.0 | -510.5 | |
| 0.00 | 1.21 | 0.00 | 0.83 | -12.22 | 111.09 | 43.85 | 259.87 | 0.6901 | -355.0 | -297.4 | |
| 0.00 | 1.56 | 0.00 | 1.06 | -10.98 | 110.85 | 43.60 | 261.67 | 0.6866 | 618.0 | 523.8 | |
| 0.00 | 1.04 | 0.00 | 0.73 | -17.59 | 112.45 | 45.21 | 252.37 | 0.7121 | -571.0 | -471.9 | |
| 0.00 | 1.12 | 0.00 | 0.80 | -18.98 | 112.73 | 45.49 | 250.49 | 0.7178 | -395.0 | -331.0 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -19.08 | 112.63 | 45.39 | 250.33 | 0.7168 | -408.0 | -321.0 | |
| 0.00 | 2.94 | 0.00 | 2.00 | -12.64 | 110.75 | 43.51 | 259.24 | 0.6862 | -694.0 | -547.1 | |
| 0.00 | 1.47 | 0.00 | 1.03 | -18.81 | 112.18 | 44.94 | 250.62 | 0.7111 | -580.0 | -520.7 | |
| 0.86 | 3.37 | 0.58 | 2.27 | -11.40 | 110.21 | 42.97 | 261.04 | 0.6788 | 714.7 | 587.1 | |
| 0.00 | 1.56 | 0.00 | 1.07 | -16.08 | 111.30 | 44.05 | 254.33 | 0.6963 | -470.0 | -415.4 | |
| 0.00 | 3.03 | 0.00 | 2.11 | -18.05 | 111.80 | 44.55 | 251.61 | 0.7053 | -515.0 | -351.8 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -19.40 | 112.21 | 44.96 | 249.81 | 0.7125 | -400.0 | -400.8 | |
| 0.00 | 1.90 | 0.00 | 1.29 | -13.30 | 110.48 | 43.23 | 258.25 | 0.6832 | -515.0 | -337.4 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -11.70 | 110.15 | 42.90 | 260.58 | 0.6780 | 550.0 | 450.2 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -14.35 | 110.51 | 43.26 | 256.71 | 0.6846 | -255.0 | -226.1 | |
| 0.00 | 0.43 | 0.00 | 0.30 | -19.66 | 112.03 | 44.79 | 249.41 | 0.7110 | -429.0 | -350.6 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -18.85 | 111.71 | 44.47 | 250.46 | 0.7057 | -689.0 | -601.2 | |
| 0.00 | 2.16 | 0.00 | 1.48 | -17.05 | 110.93 | 43.68 | 252.87 | 0.6933 | -649.0 | -598.7 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -11.48 | 109.57 | 42.32 | 260.88 | 0.6706 | 527.0 | 476.4 | |
| 0.00 | 1.56 | 0.00 | 1.03 | -12.18 | 109.45 | 42.21 | 259.83 | 0.6695 | -458.0 | -361.6 | |
| 0.00 | 1.82 | 0.00 | 1.19 | -12.36 | 108.75 | 41.50 | 259.51 | 0.6607 | -408.0 | -358.2 | |
| 0.00 | 1.21 | 0.00 | 0.81 | -16.84 | 109.50 | 42.26 | 252.92 | 0.6757 | -609.0 | -551.4 | |
| 0.00 | 2.94 | 0.00 | 1.93 | -13.16 | 108.54 | 41.30 | 258.28 | 0.6587 | -229.0 | -207.2 | |
| 1.21 | 2.68 | 0.79 | 1.75 | -13.36 | 108.30 | 41.05 | 257.94 | 0.6557 | -423.2 | -297.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -13.12 | 108.25 | 41.00 | 258.30 | 0.6549 | -427.0 | -335.4 | |
| 1.04 | 2.16 | 0.68 | 1.41 | -13.45 | 107.95 | 40.71 | 257.77 | 0.6514 | -423.4 | -274.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -15.70 | 108.46 | 41.21 | 254.41 | 0.6608 | 249.0 | 271.3 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -14.15 | 107.89 | 40.65 | 256.69 | 0.6514 | -276.0 | -251.9 | |
| 0.00 | 2.16 | 0.00 | 1.41 | -15.86 | 108.08 | 40.84 | 254.11 | 0.6564 | -442.0 | -340.0 | |
| 0.61 | 4.67 | 0.39 | 3.04 | -15.20 | 107.89 | 40.64 | 255.07 | 0.6528 | -539.9 | -570.1 | |
| 0.00 | 1.82 | 0.00 | 1.19 | -15.68 | 107.96 | 40.72 | 254.35 | 0.6545 | -657.0 | -556.4 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -15.48 | 107.83 | 40.59 | 254.64 | 0.6526 | -596.0 | -531.0 | |
| 0.00 | 1.99 | 0.00 | 1.29 | -15.82 | 107.71 | 40.46 | 254.09 | 0.6516 | -749.0 | -623.4 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -16.03 | 107.76 | 40.52 | 253.78 | 0.6526 | -582.0 | -510.1 | |
| 50.57 | 309.45 | 32.40 | 198.24 | -12.23 | 106.92 | 39.67 | 259.54 | 0.6367 | 1034.1 | 417.9 | |
| 2.25 | 16.86 | 1.45 | 10.91 | -14.46 | 107.36 | 40.11 | 256.12 | 0.6449 | -688.2 | -128.9 | |
| 0.00 | 3.20 | 0.00 | 2.08 | -15.59 | 107.57 | 40.33 | 254.42 | 0.6495 | -739.0 | -706.9 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -15.16 | 107.23 | 39.99 | 255.01 | 0.6444 | -559.0 | -536.7 | |
| 0.00 | 1.47 | 0.00 | 0.95 | -14.54 | 107.05 | 39.81 | 255.95 | 0.6411 | -392.0 | -483.7 | |
| 0.00 | 2.77 | 0.00 | 1.78 | -14.76 | 106.98 | 39.74 | 255.60 | 0.6405 | -461.0 | -355.8 | |
| 0.00 | 1.30 | 0.00 | 0.86 | -20.44 | 108.14 | 40.89 | 247.27 | 0.6674 | -505.0 | -418.8 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -14.78 | 106.34 | 39.10 | 255.45 | 0.6323 | -470.0 | -455.0 | |
| 0.00 | 0.95 | 0.00 | 0.63 | -19.98 | 107.70 | 40.45 | 247.82 | 0.6608 | -680.0 | -489.3 | |
| 0.00 | 0.69 | 0.00 | 0.48 | -26.10 | 109.52 | 42.27 | 239.73 | 0.7017 | -596.0 | -495.5 | |
| 0.00 | 1.21 | 0.00 | 0.81 | -24.14 | 107.48 | 40.24 | 241.68 | 0.6720 | -565.0 | -483.9 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -10.60 | 102.75 | 35.51 | 261.89 | 0.5788 | -555.0 | -474.5 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -10.72 | 102.69 | 35.45 | 261.67 | 0.5781 | -619.0 | -548.0 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -10.58 | 102.52 | 35.28 | 261.90 | 0.5757 | -647.0 | -551.3 | |
| 0.00 | 1.99 | 0.00 | 1.20 | -10.00 | 102.30 | 35.06 | 262.90 | 0.5722 | -626.0 | -577.5 | |
| 0.00 | 0.35 | 0.00 | 0.20 | -0.92 | 95.57 | 28.32 | 281.35 | 0.4859 | -203.0 | -362.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
