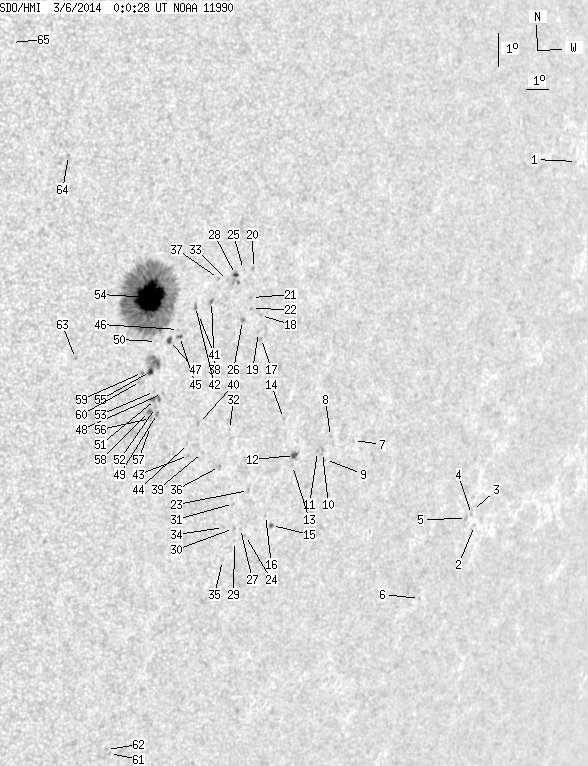

SDO HMI 2014-03-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.69 | 410.02 | 39.50 | 269.26 | -13.01 | 107.94 | 41.25 | 258.56 | 0.6573 | 197.3 | 242.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.49 | -6.38 | 125.88 | 59.19 | 266.92 | 0.8569 | 470.0 | 415.0 | |
| 0.00 | 0.52 | 0.00 | 0.47 | -17.63 | 123.79 | 57.10 | 253.63 | 0.8361 | 486.0 | 373.7 | |
| 0.00 | 0.69 | 0.00 | 0.62 | -17.21 | 123.47 | 56.78 | 254.12 | 0.8330 | 412.0 | 351.2 | |
| 0.00 | 1.21 | 0.00 | 1.08 | -17.33 | 123.47 | 56.78 | 253.98 | 0.8330 | 465.0 | 428.3 | |
| 0.00 | 1.56 | 0.00 | 1.38 | -17.47 | 123.26 | 56.56 | 253.79 | 0.8311 | 596.0 | 513.4 | |
| 0.00 | 0.52 | 0.00 | 0.45 | -20.09 | 121.92 | 55.23 | 250.52 | 0.8205 | 506.0 | 448.7 | |
| 0.00 | 1.21 | 0.00 | 0.92 | -15.73 | 116.66 | 49.97 | 255.49 | 0.7636 | 517.0 | 437.4 | |
| 0.00 | 0.95 | 0.00 | 0.71 | -15.71 | 115.56 | 48.86 | 255.42 | 0.7515 | 594.0 | 574.0 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -16.42 | 115.55 | 48.86 | 254.48 | 0.7520 | 420.0 | 364.0 | |
| 0.00 | 2.59 | 0.00 | 1.93 | -16.22 | 115.35 | 48.65 | 254.72 | 0.7496 | 620.0 | 562.5 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -16.21 | 115.11 | 48.41 | 254.71 | 0.7469 | 606.0 | 573.8 | |
| 2.07 | 4.75 | 1.51 | 3.46 | -16.43 | 114.11 | 47.41 | 254.30 | 0.7359 | -666.0 | -530.7 | |
| 0.00 | 1.12 | 0.00 | 0.82 | -16.73 | 114.11 | 47.42 | 253.89 | 0.7363 | -290.0 | -303.7 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -15.37 | 113.29 | 46.59 | 255.65 | 0.7254 | -438.0 | -460.8 | |
| 0.69 | 1.82 | 0.50 | 1.32 | -18.60 | 113.79 | 47.09 | 251.31 | 0.7352 | -500.6 | -422.5 | |
| 0.00 | 1.04 | 0.00 | 0.75 | -18.32 | 113.41 | 46.72 | 251.62 | 0.7306 | -545.0 | -477.5 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -13.09 | 111.72 | 45.03 | 258.70 | 0.7050 | -458.0 | -410.9 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -12.41 | 111.52 | 44.83 | 259.66 | 0.7023 | -423.0 | -325.4 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -12.92 | 111.55 | 44.86 | 258.93 | 0.7029 | -620.0 | -536.3 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -11.05 | 110.95 | 44.25 | 261.59 | 0.6947 | 602.0 | 472.8 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -11.91 | 111.03 | 44.34 | 260.35 | 0.6960 | 673.0 | 594.4 | |
| 0.00 | 0.86 | 0.00 | 0.60 | -12.24 | 111.10 | 44.41 | 259.88 | 0.6970 | -364.0 | -325.2 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -17.64 | 112.41 | 45.72 | 252.39 | 0.7181 | -463.0 | -424.6 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -19.00 | 112.74 | 46.05 | 250.58 | 0.7241 | -342.0 | -320.5 | |
| 0.00 | 0.78 | 0.00 | 0.53 | -11.11 | 110.54 | 43.84 | 261.48 | 0.6896 | 414.0 | 369.1 | |
| 0.00 | 2.16 | 0.00 | 1.48 | -12.63 | 110.80 | 44.11 | 259.31 | 0.6935 | -678.0 | -556.9 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -18.81 | 112.45 | 45.75 | 250.79 | 0.7204 | -399.0 | -326.6 | |
| 1.30 | 6.22 | 0.88 | 4.23 | -11.29 | 110.23 | 43.54 | 261.22 | 0.6859 | 725.7 | 543.9 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -19.22 | 112.32 | 45.63 | 250.19 | 0.7197 | -409.0 | -348.1 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -18.83 | 112.14 | 45.44 | 250.69 | 0.7170 | -468.0 | -468.3 | |
| 0.00 | 0.78 | 0.00 | 0.55 | -18.09 | 111.89 | 45.19 | 251.68 | 0.7128 | -503.0 | -425.0 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -15.90 | 111.05 | 44.36 | 254.63 | 0.6997 | -473.0 | -445.9 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -11.50 | 109.94 | 43.24 | 260.91 | 0.6822 | 57.0 | 104.0 | |
| 0.00 | 0.61 | 0.00 | 0.43 | -18.84 | 111.69 | 45.00 | 250.59 | 0.7119 | -663.0 | -558.1 | |
| 0.00 | 0.86 | 0.00 | 0.61 | -19.83 | 112.00 | 45.30 | 249.28 | 0.7173 | -376.0 | -297.8 | |
| 0.00 | 1.38 | 0.00 | 0.96 | -17.04 | 110.94 | 44.25 | 252.99 | 0.7000 | -663.0 | -587.2 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -11.47 | 109.56 | 42.86 | 260.93 | 0.6775 | 472.0 | 474.2 | |
| 0.00 | 2.16 | 0.00 | 1.45 | -12.17 | 109.40 | 42.71 | 259.88 | 0.6758 | -395.0 | -349.8 | |
| 0.00 | 1.12 | 0.00 | 0.77 | -16.68 | 110.10 | 43.41 | 253.36 | 0.6894 | -199.0 | -291.2 | |
| 0.00 | 1.82 | 0.00 | 1.23 | -15.83 | 109.70 | 43.01 | 254.52 | 0.6832 | -676.0 | -479.7 | |
| 0.00 | 0.61 | 0.00 | 0.40 | -12.60 | 108.95 | 42.26 | 259.21 | 0.6704 | -328.0 | -347.1 | |
| 0.00 | 2.51 | 0.00 | 1.66 | -12.37 | 108.78 | 42.09 | 259.53 | 0.6681 | -442.0 | -379.1 | |
| 0.00 | 1.12 | 0.00 | 0.76 | -16.82 | 109.54 | 42.85 | 253.06 | 0.6829 | -667.0 | -530.3 | |
| 0.00 | 0.35 | 0.00 | 0.23 | -16.46 | 109.45 | 42.75 | 253.56 | 0.6811 | -569.0 | -562.2 | |
| 1.04 | 2.33 | 0.68 | 1.54 | -13.32 | 108.31 | 41.62 | 258.07 | 0.6629 | -371.3 | -286.7 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -13.11 | 108.23 | 41.54 | 258.37 | 0.6617 | -301.0 | -262.0 | |
| 1.56 | 3.29 | 1.02 | 2.16 | -13.47 | 107.94 | 41.24 | 257.80 | 0.6583 | -382.5 | -215.6 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -15.06 | 108.01 | 41.31 | 255.40 | 0.6611 | -207.0 | -200.1 | |
| 0.00 | 1.90 | 0.00 | 1.25 | -15.67 | 107.95 | 41.25 | 254.46 | 0.6613 | -601.0 | -540.4 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -13.54 | 107.42 | 40.73 | 257.63 | 0.6518 | 445.0 | 293.6 | |
| 0.00 | 5.01 | 0.00 | 3.29 | -15.26 | 107.77 | 41.07 | 255.05 | 0.6583 | -591.0 | -564.9 | |
| 0.00 | 0.86 | 0.00 | 0.57 | -15.50 | 107.82 | 41.13 | 254.70 | 0.6594 | -602.0 | -504.2 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -15.03 | 107.67 | 40.98 | 255.39 | 0.6568 | -432.0 | -388.2 | |
| 51.01 | 302.84 | 32.94 | 195.52 | -12.25 | 106.93 | 40.24 | 259.57 | 0.6442 | 978.3 | 407.4 | |
| 2.33 | 19.02 | 1.52 | 12.40 | -14.45 | 107.37 | 40.68 | 256.23 | 0.6522 | -582.5 | -145.7 | |
| 0.00 | 1.64 | 0.00 | 1.08 | -15.84 | 107.70 | 41.01 | 254.16 | 0.6585 | -713.0 | -621.4 | |
| 0.00 | 1.73 | 0.00 | 1.14 | -16.08 | 107.76 | 41.07 | 253.81 | 0.6596 | -508.0 | -352.0 | |
| 0.69 | 1.99 | 0.45 | 1.30 | -15.64 | 107.61 | 40.92 | 254.46 | 0.6570 | -813.4 | -743.9 | |
| 0.00 | 1.21 | 0.00 | 0.79 | -14.50 | 107.06 | 40.37 | 256.10 | 0.6483 | -571.0 | -475.4 | |
| 0.00 | 3.11 | 0.00 | 2.02 | -14.78 | 107.04 | 40.35 | 255.68 | 0.6484 | -527.0 | -403.1 | |
| 0.00 | 0.95 | 0.00 | 0.66 | -26.10 | 109.47 | 42.77 | 239.93 | 0.7070 | -457.0 | -448.9 | |
| 0.00 | 1.30 | 0.00 | 0.90 | -25.99 | 109.28 | 42.59 | 240.01 | 0.7046 | -123.0 | -129.9 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -14.29 | 104.36 | 37.67 | 255.98 | 0.6126 | 636.0 | 556.7 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -8.29 | 103.20 | 36.50 | 265.88 | 0.5924 | -574.0 | -508.8 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -5.09 | 100.84 | 34.14 | 271.67 | 0.5615 | -597.0 | -444.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
