SDO HMI 2014-03-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.24 | 83.05 | 7.39 | 46.28 | 14.01 | 49.75 | -16.95 | 38.17 | 0.4585 | 41.3 | 24.8 | |
|
previous
or next observation for the same group /

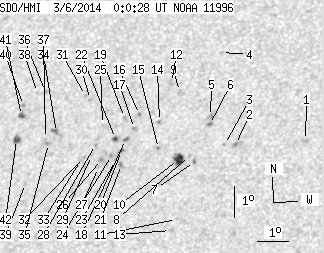

back to the solar disc SDO HMI 2014-03-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.94 | 0.00 | 1.59 | 13.71 | 55.38 | -11.31 | 28.19 | 0.4051 | -686.0 | -659.7 | |
| 0.00 | 2.16 | 0.00 | 1.18 | 13.65 | 53.19 | -13.50 | 32.70 | 0.4218 | -984.0 | -883.6 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 13.66 | 52.84 | -13.85 | 33.35 | 0.4250 | -812.0 | -643.4 | |
| 0.00 | 1.30 | 0.00 | 0.73 | 16.63 | 52.55 | -14.14 | 30.26 | 0.4665 | -579.0 | -441.3 | |
| 0.00 | 3.11 | 0.00 | 1.72 | 14.57 | 52.34 | -14.35 | 33.09 | 0.4412 | -833.0 | -687.6 | |
| 0.35 | 1.64 | 0.19 | 0.90 | 14.31 | 52.33 | -14.36 | 33.45 | 0.4380 | -954.5 | -799.9 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 13.15 | 51.93 | -14.77 | 35.75 | 0.4266 | -1008.0 | -851.8 | |
| 0.00 | 1.38 | 0.00 | 0.76 | 13.35 | 51.76 | -14.94 | 35.79 | 0.4306 | -694.0 | -469.1 | |
| 0.00 | 2.16 | 0.00 | 1.20 | 15.41 | 51.30 | -15.40 | 33.89 | 0.4610 | -854.0 | -664.3 | |
| 5.88 | 9.68 | 3.23 | 5.31 | 13.23 | 51.42 | -15.28 | 36.57 | 0.4323 | -938.9 | -601.5 | |
| 0.00 | 0.95 | 0.00 | 0.52 | 11.34 | 51.46 | -15.23 | 39.31 | 0.4083 | -533.0 | -425.0 | |
| 0.00 | 3.11 | 0.00 | 1.74 | 15.71 | 51.02 | -15.68 | 33.99 | 0.4672 | -675.0 | -573.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 11.00 | 51.29 | -15.40 | 40.16 | 0.4059 | -596.0 | -479.7 | |
| 0.00 | 1.21 | 0.00 | 0.67 | 14.47 | 50.73 | -15.97 | 36.08 | 0.4542 | 723.0 | 533.6 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 13.61 | 50.76 | -15.94 | 37.21 | 0.4432 | -763.0 | -697.3 | |
| 0.00 | 1.30 | 0.00 | 0.72 | 14.72 | 50.07 | -16.63 | 36.86 | 0.4633 | -731.0 | -651.5 | |
| 0.00 | 2.51 | 0.00 | 1.40 | 14.27 | 49.94 | -16.75 | 37.66 | 0.4591 | -801.0 | -599.0 | |
| 0.61 | 2.42 | 0.34 | 1.35 | 13.93 | 49.68 | -17.01 | 38.57 | 0.4575 | 768.3 | 548.1 | |
| 0.00 | 1.47 | 0.00 | 0.82 | 14.64 | 49.59 | -17.10 | 37.74 | 0.4668 | -514.0 | -357.4 | |
| 0.52 | 2.59 | 0.29 | 1.44 | 13.59 | 49.58 | -17.12 | 39.22 | 0.4543 | 847.0 | 728.8 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 13.14 | 49.61 | -17.08 | 39.81 | 0.4487 | 829.0 | 725.5 | |
| 1.38 | 2.42 | 0.77 | 1.35 | 13.98 | 49.35 | -17.34 | 39.03 | 0.4611 | -475.2 | -336.3 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 13.28 | 49.41 | -17.29 | 39.95 | 0.4523 | 755.0 | 627.4 | |
| 0.00 | 2.07 | 0.00 | 1.15 | 13.44 | 49.27 | -17.43 | 39.94 | 0.4556 | 974.0 | 768.0 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 14.45 | 48.90 | -17.79 | 39.11 | 0.4711 | -518.0 | -399.3 | |
| 0.00 | 2.51 | 0.00 | 1.39 | 13.33 | 48.95 | -17.74 | 40.61 | 0.4574 | 1018.0 | 830.7 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 13.08 | 48.88 | -17.82 | 41.10 | 0.4553 | 704.0 | 514.6 | |
| 0.00 | 0.95 | 0.00 | 0.53 | 13.81 | 48.72 | -17.97 | 40.27 | 0.4654 | -651.0 | -368.0 | |
| 0.00 | 1.12 | 0.00 | 0.63 | 13.47 | 48.62 | -18.07 | 40.93 | 0.4624 | 687.0 | 557.6 | |
| 0.00 | 1.56 | 0.00 | 0.88 | 15.27 | 48.44 | -18.25 | 38.71 | 0.4851 | 871.0 | 680.9 | |
| 0.00 | 0.52 | 0.00 | 0.29 | 15.40 | 48.27 | -18.43 | 38.80 | 0.4884 | 720.0 | 587.7 | |
| 0.00 | 1.21 | 0.00 | 0.68 | 13.42 | 48.37 | -18.32 | 41.40 | 0.4644 | 772.0 | 550.3 | |
| 0.00 | 1.04 | 0.00 | 0.58 | 13.32 | 48.28 | -18.41 | 41.67 | 0.4642 | 772.0 | 605.9 | |
| 0.00 | 4.06 | 0.00 | 2.30 | 14.25 | 47.43 | -19.27 | 41.63 | 0.4835 | 937.0 | 737.2 | |
| 0.00 | 2.16 | 0.00 | 1.22 | 13.91 | 47.20 | -19.50 | 42.45 | 0.4820 | 983.0 | 797.1 | |
| 0.00 | 1.47 | 0.00 | 0.84 | 15.59 | 46.94 | -19.75 | 40.50 | 0.5033 | 797.0 | 615.1 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 14.08 | 47.08 | -19.61 | 42.38 | 0.4850 | 771.0 | 604.9 | |
| 0.00 | 0.69 | 0.00 | 0.40 | 15.57 | 46.68 | -20.01 | 40.89 | 0.5057 | 468.0 | 388.1 | |
| 0.00 | 1.47 | 0.00 | 0.83 | 12.67 | 46.55 | -20.14 | 45.22 | 0.4753 | 799.0 | 571.7 | |
| 0.00 | 1.38 | 0.00 | 0.79 | 15.17 | 46.26 | -20.43 | 42.02 | 0.5054 | 657.0 | 581.0 | |
| 1.82 | 3.54 | 1.04 | 2.03 | 14.85 | 46.23 | -20.47 | 42.51 | 0.5023 | 829.8 | 612.7 | |
| 2.68 | 4.75 | 1.53 | 2.71 | 14.09 | 46.13 | -20.56 | 43.71 | 0.4949 | 928.1 | 653.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
