SDO HMI 2014-03-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.94 | 21.00 | 8.40 | 17.79 | -10.59 | 11.90 | -54.79 | 97.84 | 0.8129 | 500.6 | 264.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 00:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

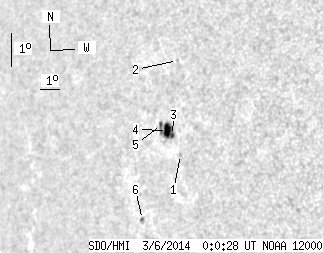

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.72 | -11.15 | 12.53 | -54.16 | 98.53 | 0.8065 | 649.0 | 540.2 | |
| 0.00 | 0.69 | 0.00 | 0.57 | -8.38 | 13.04 | -53.65 | 95.05 | 0.8022 | 495.0 | 436.4 | |
| 0.95 | 17.46 | 0.80 | 14.74 | -10.55 | 12.28 | -54.42 | 97.79 | 0.8092 | 677.4 | 376.6 | |
| 7.78 | -3.00 | 6.56 | -3.00 | -10.38 | 12.06 | -54.63 | 97.58 | 0.8114 | 710.8 | 999999 | |
| 0.78 | -3.00 | 0.66 | -3.00 | -10.17 | 11.80 | -54.89 | 97.34 | 0.8141 | 306.0 | 999999 | |
| 0.43 | 1.99 | 0.38 | 1.76 | -12.85 | 9.95 | -56.74 | 100.63 | 0.8317 | -611.4 | -499.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
