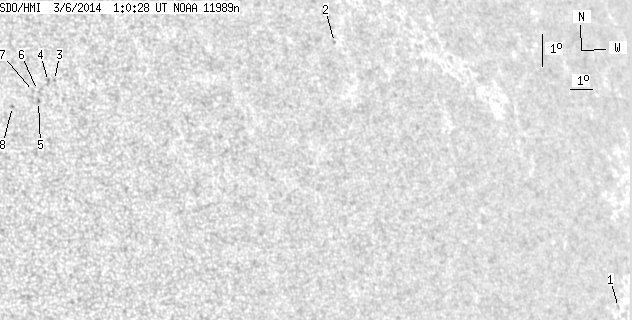

SDO HMI 2014-03-06 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.59 | 0.00 | 6.92 | 9.58 | 108.80 | 42.65 | 292.04 | 0.7104 | 301.1 | 246.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.35 | 5.98 | 128.59 | 62.45 | 280.38 | 0.8983 | -356.0 | -293.9 | |
| 0.00 | 0.95 | 0.00 | 0.77 | 12.70 | 114.91 | 48.77 | 292.19 | 0.7946 | -380.0 | -370.5 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 10.45 | 102.84 | 36.70 | 295.44 | 0.6531 | 472.0 | 438.7 | |
| 0.00 | 2.51 | 0.00 | 1.63 | 10.40 | 102.61 | 36.47 | 295.51 | 0.6501 | 624.0 | 532.6 | |
| 0.00 | 1.64 | 0.00 | 1.06 | 9.74 | 102.15 | 36.00 | 294.87 | 0.6409 | 470.0 | 477.7 | |
| 0.00 | 0.35 | 0.00 | 0.22 | 10.08 | 102.15 | 36.01 | 295.36 | 0.6429 | 301.0 | 396.8 | |
| 0.00 | 1.21 | 0.00 | 0.78 | 10.04 | 102.00 | 35.85 | 295.40 | 0.6408 | 663.0 | 498.4 | |
| 0.00 | 0.86 | 0.00 | 0.55 | 9.51 | 101.15 | 35.01 | 295.18 | 0.6275 | 615.0 | 530.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
