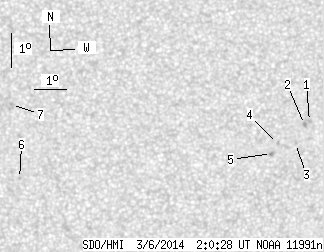

SDO HMI 2014-03-06 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.84 | 0.00 | 4.52 | -12.08 | 79.35 | 13.76 | 247.67 | 0.2511 | 305.0 | 363.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 02:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.67 | -11.53 | 81.83 | 16.23 | 253.83 | 0.2865 | 673.0 | 562.6 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -11.63 | 81.68 | 16.08 | 253.38 | 0.2844 | 943.0 | 781.4 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -12.20 | 81.43 | 15.83 | 251.19 | 0.2830 | 711.0 | 596.5 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -12.22 | 80.86 | 15.26 | 250.56 | 0.2741 | 539.0 | 375.0 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -12.53 | 80.69 | 15.09 | 249.31 | 0.2729 | 957.0 | 796.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -13.45 | 72.88 | 7.29 | 228.59 | 0.1653 | -781.0 | -613.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -11.25 | 72.58 | 6.99 | 239.45 | 0.1391 | -907.0 | -720.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
