groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11993 4.41 41.03 2.98 27.62 17.04 99.99 35.49 305.06 0.6804 247.7 241.8


previous   or   next   observation for the same group / back to the solar disc

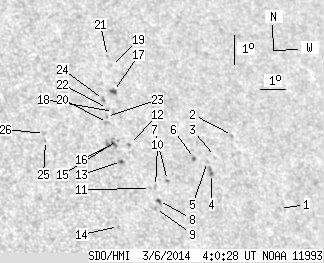

SDO HMI 2014-03-06 04:00:28 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.04 0.00 0.74 15.41 105.13 40.63 299.56 0.7240 -311.0 -374.7
2 0.00 0.52 0.00 0.37 17.65 103.78 39.28 303.14 0.7229 -533.0 -483.7
3 0.00 0.43 0.00 0.30 16.90 102.91 38.41 302.80 0.7095 -611.0 -530.8
4 0.52 3.72 0.36 2.58 16.32 102.62 38.11 302.28 0.7030 -697.0 -634.2
5 0.00 0.95 0.00 0.66 16.70 102.55 38.05 302.80 0.7046 -616.0 -479.0
6 0.43 1.56 0.30 1.08 16.76 102.05 37.55 303.21 0.6998 -772.2 -713.0
7 0.00 1.47 0.00 0.99 15.95 100.82 36.32 303.05 0.6817 411.0 283.1
8 0.69 2.16 0.46 1.44 15.27 100.33 35.83 302.53 0.6721 496.5 412.0
9 0.00 0.95 0.00 0.63 15.01 100.17 35.66 302.30 0.6686 711.0 579.7
10 0.00 1.30 0.00 0.87 15.72 100.31 35.81 303.12 0.6748 580.0 457.7
11 0.00 0.78 0.00 0.52 15.64 100.10 35.60 303.17 0.6720 556.0 433.2
12 0.00 1.21 0.00 0.81 17.02 99.59 35.09 305.30 0.6759 -570.0 -485.6
13 0.52 1.56 0.34 1.03 16.44 99.17 34.66 304.89 0.6674 727.8 643.2
14 0.00 0.87 0.00 0.56 14.32 98.65 34.15 302.51 0.6473 672.0 569.9
15 0.00 0.87 0.00 0.58 17.12 99.16 34.66 305.76 0.6721 243.0 167.0
16 0.69 6.66 0.46 4.42 17.01 98.98 34.48 305.75 0.6694 609.6 593.5
17 1.56 3.29 1.06 2.23 18.74 99.37 34.87 307.59 0.6857 603.3 419.4
18 0.00 1.47 0.00 0.99 18.07 99.22 34.72 306.89 0.6793 530.0 444.4
19 0.00 0.61 0.00 0.42 19.61 99.51 35.01 308.53 0.6932 519.0 411.1
20 0.00 1.82 0.00 1.21 17.69 98.90 34.40 306.67 0.6734 831.0 667.9
21 0.00 0.95 0.00 0.65 19.90 99.43 34.93 308.94 0.6945 380.0 357.6
22 0.00 1.47 0.00 0.99 18.15 99.01 34.51 307.16 0.6778 496.0 390.8
23 0.00 1.30 0.00 0.87 17.88 98.91 34.41 306.90 0.6749 681.0 561.9
24 0.00 2.25 0.00 1.51 18.44 98.92 34.42 307.58 0.6790 771.0 651.5
25 0.00 0.35 0.00 0.22 16.92 96.43 31.93 307.72 0.6420 706.0 655.0
26 0.00 1.47 0.00 0.95 17.15 96.44 31.94 308.00 0.6438 207.0 230.5


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
