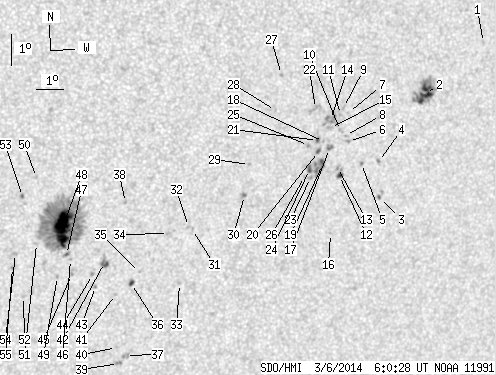

SDO HMI 2014-03-06 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.37 | 337.78 | 36.03 | 194.64 | -25.35 | 88.91 | 25.50 | 229.75 | 0.5110 | -149.8 | -87.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.30 | 0.00 | 0.80 | -19.90 | 99.16 | 35.75 | 246.29 | 0.6023 | 600.0 | 542.7 | |
| 12.89 | 37.29 | 7.87 | 22.75 | -21.60 | 97.35 | 33.94 | 242.72 | 0.5864 | 906.1 | 561.0 | |
| 0.43 | 2.68 | 0.27 | 1.65 | -24.90 | 96.50 | 33.09 | 236.99 | 0.5928 | -777.2 | -646.8 | |
| 0.00 | 1.38 | 0.00 | 0.84 | -23.79 | 96.14 | 32.73 | 238.51 | 0.5824 | 615.0 | 410.8 | |
| 0.00 | 1.56 | 0.00 | 0.94 | -23.90 | 95.51 | 32.10 | 237.96 | 0.5754 | 483.0 | 439.4 | |
| 0.00 | 1.99 | 0.00 | 1.19 | -23.25 | 94.84 | 31.43 | 238.59 | 0.5636 | 396.0 | 224.8 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -22.36 | 94.61 | 31.20 | 239.92 | 0.5559 | 534.0 | 366.2 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -23.07 | 94.68 | 31.27 | 238.78 | 0.5606 | 552.0 | 387.2 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -22.22 | 94.39 | 30.98 | 240.02 | 0.5523 | 661.0 | 584.3 | |
| 0.00 | 1.90 | 0.00 | 1.13 | -22.93 | 94.45 | 31.04 | 238.87 | 0.5570 | 666.0 | 557.4 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -22.44 | 94.33 | 30.92 | 239.61 | 0.5528 | 726.0 | 601.6 | |
| 1.90 | 4.93 | 1.14 | 2.97 | -24.32 | 94.78 | 31.37 | 236.82 | 0.5691 | 687.6 | 544.6 | |
| 0.00 | 1.73 | 0.00 | 1.04 | -24.08 | 94.64 | 31.23 | 237.11 | 0.5659 | 856.0 | 737.7 | |
| 0.00 | 11.94 | 0.00 | 7.07 | -22.62 | 94.00 | 30.59 | 239.10 | 0.5496 | 689.0 | 757.0 | |
| 0.00 | 2.42 | 0.00 | 1.44 | -22.86 | 94.06 | 30.65 | 238.73 | 0.5518 | 838.0 | 709.9 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -26.14 | 94.96 | 31.55 | 234.07 | 0.5823 | 673.0 | 564.7 | |
| 0.69 | 3.89 | 0.41 | 2.32 | -23.51 | 94.18 | 30.78 | 237.73 | 0.5571 | 813.2 | 655.2 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -23.31 | 93.91 | 30.50 | 237.88 | 0.5525 | 763.0 | 631.5 | |
| 2.86 | 17.31 | 1.70 | 10.30 | -24.02 | 94.05 | 30.64 | 236.81 | 0.5585 | 837.0 | 786.8 | |
| 0.95 | 1.82 | 0.56 | 1.08 | -23.63 | 93.80 | 30.39 | 237.28 | 0.5531 | 873.3 | 748.4 | |
| 0.78 | 1.82 | 0.46 | 1.08 | -23.29 | 93.68 | 30.27 | 237.76 | 0.5496 | 981.6 | 870.9 | |
| 0.00 | 6.66 | 0.00 | 3.92 | -22.31 | 93.36 | 29.96 | 239.20 | 0.5400 | 742.0 | 702.0 | |
| 0.00 | 1.73 | 0.00 | 1.03 | -24.45 | 93.71 | 30.30 | 235.88 | 0.5570 | 597.0 | 590.2 | |
| 1.64 | -19.00 | 0.98 | -19.00 | -24.20 | 93.61 | 30.20 | 236.20 | 0.5543 | 925.6 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.77 | -23.46 | 93.38 | 29.97 | 237.26 | 0.5470 | 850.0 | 687.9 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -24.43 | 93.48 | 30.07 | 235.74 | 0.5542 | 847.0 | 677.6 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -21.35 | 91.90 | 28.49 | 239.88 | 0.5157 | 723.0 | 610.9 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -22.46 | 91.92 | 28.51 | 237.93 | 0.5227 | 632.0 | 553.2 | |
| 0.00 | 1.38 | 0.00 | 0.81 | -24.17 | 91.36 | 27.95 | 234.55 | 0.5270 | 843.0 | 634.6 | |
| 0.43 | 2.08 | 0.25 | 1.21 | -25.14 | 91.41 | 28.00 | 232.98 | 0.5345 | 966.6 | 823.6 | |
| 0.00 | 1.04 | 0.00 | 0.60 | -26.31 | 89.76 | 26.36 | 229.64 | 0.5243 | -578.0 | -504.9 | |
| 0.00 | 1.47 | 0.00 | 0.85 | -26.22 | 89.60 | 26.19 | 229.63 | 0.5217 | -626.0 | -509.8 | |
| 0.00 | 1.47 | 0.00 | 0.86 | -28.03 | 89.72 | 26.31 | 226.89 | 0.5380 | -518.0 | -504.9 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -26.47 | 88.92 | 25.51 | 228.57 | 0.5162 | -890.0 | -722.6 | |
| 0.00 | 0.78 | 0.00 | 0.45 | -27.75 | 88.15 | 24.74 | 225.78 | 0.5189 | -605.0 | -444.1 | |
| 1.56 | 2.60 | 0.90 | 1.50 | -28.12 | 87.94 | 24.54 | 225.01 | 0.5200 | 493.4 | 469.2 | |
| 0.00 | 3.98 | 0.00 | 2.35 | -30.42 | 88.31 | 24.91 | 221.98 | 0.5450 | -807.0 | -624.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -25.58 | 87.15 | 23.74 | 228.26 | 0.4887 | 768.0 | 598.3 | |
| 0.00 | 2.51 | 0.00 | 1.48 | -30.69 | 88.12 | 24.71 | 221.40 | 0.5457 | -744.0 | -647.6 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -30.18 | 87.91 | 24.50 | 221.91 | 0.5388 | -818.0 | -614.3 | |
| 0.00 | 0.87 | 0.00 | 0.50 | -28.49 | 87.44 | 24.03 | 223.91 | 0.5182 | 704.0 | 557.9 | |
| 0.00 | 6.58 | 0.00 | 3.76 | -27.50 | 86.81 | 23.40 | 224.76 | 0.5023 | -955.0 | -732.2 | |
| 0.00 | 1.30 | 0.00 | 0.75 | -28.27 | 86.65 | 23.24 | 223.39 | 0.5080 | -580.0 | -495.7 | |
| 0.00 | 1.56 | 0.00 | 0.89 | -27.90 | 86.46 | 23.05 | 223.75 | 0.5024 | -671.0 | -612.7 | |
| 0.00 | 1.21 | 0.00 | 0.69 | -27.93 | 85.70 | 22.29 | 222.83 | 0.4949 | -768.0 | -680.1 | |
| 0.00 | 1.12 | 0.00 | 0.64 | -27.46 | 85.56 | 22.15 | 223.41 | 0.4888 | -676.0 | -487.5 | |
| 0.52 | 180.23 | 0.29 | 101.18 | -27.31 | 85.38 | 21.97 | 223.45 | 0.4855 | -668.0 | -449.5 | |
| 37.72 | -47.00 | 21.20 | -47.00 | -26.46 | 85.07 | 21.66 | 224.44 | 0.4739 | -1259.7 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -28.02 | 85.21 | 21.80 | 222.13 | 0.4907 | -687.0 | -590.4 | |
| 0.00 | 1.21 | 0.00 | 0.67 | -24.94 | 83.87 | 20.46 | 225.54 | 0.4459 | -732.0 | -461.0 | |
| 0.00 | 1.47 | 0.00 | 0.82 | -27.01 | 84.24 | 20.84 | 222.55 | 0.4706 | -639.0 | -518.4 | |
| 0.00 | 1.30 | 0.00 | 0.74 | -28.70 | 84.12 | 20.71 | 219.76 | 0.4870 | -805.0 | -641.0 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -25.55 | 83.48 | 20.07 | 223.98 | 0.4478 | -973.0 | -813.9 | |
| 0.00 | 2.16 | 0.00 | 1.21 | -27.35 | 83.56 | 20.15 | 221.12 | 0.4672 | -857.0 | -639.4 | |
| 0.00 | 1.47 | 0.00 | 0.83 | -27.80 | 83.54 | 20.13 | 220.40 | 0.4717 | -825.0 | -687.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
