SDO HMI 2014-03-06 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.28 | 0.00 | 2.39 | 9.31 | 104.81 | 44.14 | 290.09 | 0.7334 | 597.5 | 489.5 | |
|
previous
or next observation for the same group /

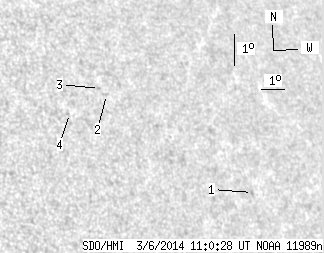

back to the solar disc SDO HMI 2014-03-06 11:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.87 | 7.78 | 108.82 | 48.14 | 286.42 | 0.7717 | 606.0 | 443.2 | |
| 0.00 | 0.78 | 0.00 | 0.55 | 10.26 | 102.95 | 42.28 | 292.08 | 0.7167 | 503.0 | 439.1 | |
| 0.00 | 0.95 | 0.00 | 0.67 | 10.43 | 102.69 | 42.02 | 292.42 | 0.7145 | 567.0 | 499.5 | |
| 0.00 | 0.43 | 0.00 | 0.30 | 9.54 | 101.34 | 40.67 | 291.92 | 0.6951 | 714.0 | 696.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
