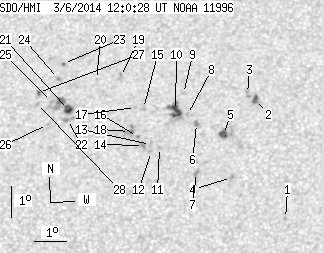

SDO HMI 2014-03-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.00 | 97.99 | 9.72 | 53.02 | 13.80 | 49.44 | -10.69 | 26.58 | 0.4024 | 47.1 | 181.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.12 | 0.00 | 0.59 | 10.52 | 53.91 | -6.22 | 19.28 | 0.3238 | -865.0 | -711.3 | |
| 1.90 | 4.33 | 1.02 | 2.32 | 14.30 | 52.90 | -7.23 | 18.42 | 0.3876 | -952.5 | -819.3 | |
| 0.00 | 3.72 | 0.00 | 2.00 | 14.49 | 52.64 | -7.48 | 18.86 | 0.3919 | -595.0 | -600.6 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 11.84 | 52.23 | -7.90 | 22.44 | 0.3538 | -945.0 | -744.9 | |
| 3.46 | 8.30 | 1.85 | 4.44 | 13.20 | 51.94 | -8.18 | 21.72 | 0.3762 | -1014.5 | -766.7 | |
| 0.00 | 2.68 | 0.00 | 1.44 | 13.57 | 51.10 | -9.03 | 23.34 | 0.3869 | -903.0 | -756.4 | |
| 0.00 | 2.60 | 0.00 | 1.38 | 12.02 | 51.15 | -8.98 | 24.94 | 0.3636 | -745.0 | -631.2 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.86 | 50.81 | -9.32 | 23.69 | 0.3930 | -860.0 | -671.5 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 14.54 | 50.65 | -9.47 | 23.34 | 0.4039 | -781.0 | -609.8 | |
| 7.27 | 16.26 | 3.92 | 8.77 | 14.00 | 50.43 | -9.70 | 24.40 | 0.3975 | -838.9 | -313.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 12.83 | 49.98 | -10.15 | 26.72 | 0.3837 | 901.0 | 750.0 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 12.71 | 49.73 | -10.39 | 27.42 | 0.3838 | 903.0 | 784.0 | |
| 0.00 | 2.42 | 0.00 | 1.30 | 12.93 | 49.69 | -10.43 | 27.24 | 0.3872 | 940.0 | 736.6 | |
| 0.00 | 2.94 | 0.00 | 1.58 | 12.91 | 49.48 | -10.65 | 27.75 | 0.3885 | 1035.0 | 897.8 | |
| 0.00 | 2.25 | 0.00 | 1.22 | 14.09 | 49.43 | -10.70 | 26.48 | 0.4056 | -492.0 | -376.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 13.20 | 49.28 | -10.85 | 27.84 | 0.3941 | 950.0 | 814.4 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 14.12 | 49.17 | -10.95 | 26.97 | 0.4080 | -727.0 | -557.8 | |
| 0.00 | 7.44 | 0.00 | 4.01 | 13.36 | 49.02 | -11.10 | 28.19 | 0.3983 | 801.0 | 726.2 | |
| 0.00 | 3.63 | 0.00 | 1.99 | 15.13 | 48.65 | -11.47 | 26.92 | 0.4259 | 700.0 | 635.7 | |
| 0.00 | 0.87 | 0.00 | 0.47 | 15.06 | 47.90 | -12.23 | 28.50 | 0.4304 | -525.0 | -401.9 | |
| 4.33 | 17.82 | 2.36 | 9.75 | 14.12 | 47.07 | -13.05 | 31.24 | 0.4241 | 1075.5 | 781.4 | |
| 0.00 | 4.84 | 0.00 | 2.64 | 13.80 | 47.06 | -13.07 | 31.67 | 0.4199 | 960.0 | 761.6 | |
| 0.35 | 1.38 | 0.19 | 0.77 | 15.61 | 46.82 | -13.30 | 29.93 | 0.4461 | 816.5 | 723.2 | |
| 0.00 | 1.56 | 0.00 | 0.86 | 15.13 | 46.70 | -13.43 | 30.73 | 0.4406 | 954.0 | 790.4 | |
| 0.00 | 0.69 | 0.00 | 0.38 | 14.39 | 46.52 | -13.61 | 31.96 | 0.4323 | 788.0 | 538.1 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 13.66 | 46.44 | -13.69 | 33.06 | 0.4233 | 821.0 | 695.2 | |
| 0.69 | 1.90 | 0.38 | 1.05 | 14.70 | 46.09 | -14.04 | 32.38 | 0.4399 | 851.5 | 674.5 | |
| 0.00 | 1.47 | 0.00 | 0.81 | 14.35 | 46.08 | -14.05 | 32.85 | 0.4354 | 724.0 | 507.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
