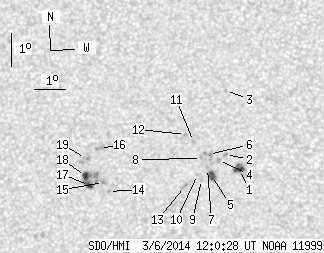

SDO HMI 2014-03-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.66 | 63.32 | 7.11 | 32.95 | -16.75 | 44.67 | -15.46 | 123.90 | 0.3082 | 309.4 | -69.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 12:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.15 | 7.53 | 2.14 | 3.87 | -16.88 | 47.50 | -12.63 | 129.17 | 0.2711 | 1113.8 | 884.7 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -16.42 | 47.08 | -13.04 | 126.92 | 0.2720 | 1066.0 | 898.3 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -14.50 | 47.21 | -12.92 | 120.88 | 0.2534 | 787.0 | 556.5 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -16.59 | 46.85 | -13.28 | 126.98 | 0.2768 | 1081.0 | 810.8 | |
| 3.37 | 5.36 | 1.74 | 2.77 | -17.04 | 46.59 | -13.54 | 127.80 | 0.2845 | 1011.6 | 834.5 | |
| 0.00 | 4.58 | 0.00 | 2.36 | -16.40 | 46.54 | -13.59 | 125.82 | 0.2792 | 844.0 | 650.1 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -16.82 | 46.48 | -13.65 | 126.96 | 0.2839 | 658.0 | 545.8 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -16.52 | 46.31 | -13.82 | 125.73 | 0.2833 | 831.0 | 680.7 | |
| 0.00 | 1.30 | 0.00 | 0.67 | -17.15 | 46.26 | -13.87 | 127.49 | 0.2899 | 718.0 | 513.9 | |
| 0.00 | 0.52 | 0.00 | 0.27 | -17.00 | 46.15 | -13.98 | 126.83 | 0.2900 | 734.0 | 532.3 | |
| 0.00 | 1.56 | 0.00 | 0.80 | -16.00 | 46.09 | -14.03 | 123.78 | 0.2817 | 840.0 | 625.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -15.78 | 45.85 | -14.27 | 122.69 | 0.2832 | 760.0 | 609.2 | |
| 0.00 | 2.16 | 0.00 | 1.12 | -17.34 | 45.70 | -14.43 | 127.01 | 0.2991 | 887.0 | 715.2 | |
| 0.00 | 1.21 | 0.00 | 0.64 | -17.41 | 43.23 | -16.89 | 123.25 | 0.3330 | -888.0 | -700.3 | |
| 0.00 | 2.08 | 0.00 | 1.09 | -17.13 | 43.10 | -17.03 | 122.33 | 0.3327 | -923.0 | -707.0 | |
| 0.00 | 3.29 | 0.00 | 1.72 | -16.11 | 43.06 | -17.06 | 119.50 | 0.3253 | -1017.0 | -832.2 | |
| 2.51 | 19.38 | 1.32 | 10.19 | -17.21 | 42.63 | -17.49 | 121.89 | 0.3397 | -785.6 | -818.1 | |
| 3.63 | -17.00 | 1.91 | -17.00 | -16.93 | 42.53 | -17.60 | 121.04 | 0.3390 | -946.4 | 999999 | |
| 0.00 | 5.88 | 0.00 | 3.09 | -16.39 | 42.58 | -17.54 | 119.66 | 0.3343 | -836.0 | -722.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
