SDO HMI 2014-03-06 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 23.70 | 108.98 | 12.77 | 58.77 | 13.70 | 49.64 | -9.94 | 25.09 | 0.3956 | 102.1 | 190.2 | |
|
previous
or next observation for the same group /

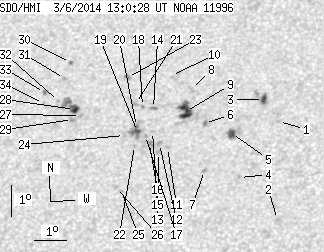

back to the solar disc SDO HMI 2014-03-06 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.57 | 53.41 | -6.17 | 16.41 | 0.3712 | -770.0 | -660.8 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 10.48 | 53.45 | -6.13 | 19.07 | 0.3227 | -841.0 | -635.3 | |
| 2.59 | 8.22 | 1.39 | 4.41 | 14.28 | 52.93 | -6.65 | 17.04 | 0.3844 | -944.2 | -670.6 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 11.82 | 52.26 | -7.32 | 20.96 | 0.3501 | -690.0 | -660.4 | |
| 3.72 | 9.60 | 1.98 | 5.12 | 13.21 | 51.98 | -7.60 | 20.29 | 0.3730 | -1021.3 | -716.4 | |
| 0.00 | 2.16 | 0.00 | 1.16 | 13.55 | 51.13 | -8.45 | 22.00 | 0.3830 | -897.0 | -764.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | 12.06 | 51.18 | -8.40 | 23.46 | 0.3604 | -915.0 | -744.5 | |
| 0.00 | 3.11 | 0.00 | 1.68 | 14.64 | 50.69 | -8.89 | 21.94 | 0.4019 | -574.0 | -515.3 | |
| 10.12 | 18.60 | 5.45 | 10.01 | 13.94 | 50.53 | -9.05 | 22.99 | 0.3925 | -900.8 | -272.9 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 15.11 | 50.04 | -9.53 | 22.90 | 0.4127 | -538.0 | -607.3 | |
| 0.00 | 1.99 | 0.00 | 1.06 | 12.81 | 50.01 | -9.56 | 25.41 | 0.3793 | 949.0 | 731.3 | |
| 0.00 | 2.42 | 0.00 | 1.30 | 12.94 | 49.76 | -9.82 | 25.84 | 0.3830 | 932.0 | 740.0 | |
| 0.00 | 2.59 | 0.00 | 1.39 | 12.66 | 49.74 | -9.84 | 26.22 | 0.3790 | 825.0 | 678.3 | |
| 0.00 | 2.85 | 0.00 | 1.54 | 14.06 | 49.53 | -10.05 | 25.10 | 0.4008 | -654.0 | -507.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 13.33 | 49.53 | -10.05 | 25.92 | 0.3902 | 539.0 | 400.0 | |
| 0.00 | 4.07 | 0.00 | 2.18 | 12.95 | 49.45 | -10.13 | 26.53 | 0.3853 | 990.0 | 833.6 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 13.21 | 49.32 | -10.26 | 26.53 | 0.3899 | 888.0 | 780.2 | |
| 0.00 | 1.12 | 0.00 | 0.61 | 14.13 | 49.18 | -10.40 | 25.77 | 0.4042 | -803.0 | -672.7 | |
| 1.82 | 9.08 | 0.98 | 4.89 | 13.34 | 49.06 | -10.52 | 26.94 | 0.3937 | 919.0 | 802.7 | |
| 0.43 | -19.00 | 0.23 | -19.00 | 13.50 | 49.02 | -10.55 | 26.84 | 0.3962 | 684.2 | 999999 | |
| 0.00 | 2.25 | 0.00 | 1.22 | 14.24 | 48.96 | -10.62 | 26.14 | 0.4072 | -473.0 | -499.4 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 12.90 | 48.99 | -10.59 | 27.64 | 0.3879 | 818.0 | 672.3 | |
| 0.00 | 2.51 | 0.00 | 1.37 | 15.08 | 48.67 | -10.91 | 25.83 | 0.4212 | 907.0 | 841.9 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 13.22 | 48.66 | -10.92 | 27.95 | 0.3950 | 809.0 | 626.0 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 11.46 | 48.64 | -10.94 | 30.29 | 0.3702 | 887.0 | 714.0 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 11.59 | 48.48 | -11.10 | 30.47 | 0.3733 | 797.0 | 640.5 | |
| 0.00 | 1.64 | 0.00 | 0.89 | 13.90 | 47.25 | -12.32 | 30.07 | 0.4152 | 1000.0 | 754.9 | |
| 4.67 | 14.88 | 2.55 | 8.12 | 14.10 | 47.06 | -12.52 | 30.23 | 0.4195 | 1041.9 | 802.6 | |
| 0.00 | 1.90 | 0.00 | 1.04 | 13.78 | 47.01 | -12.57 | 30.71 | 0.4155 | 912.0 | 833.3 | |
| 0.35 | 1.56 | 0.19 | 0.86 | 15.61 | 46.84 | -12.74 | 28.86 | 0.4418 | 710.2 | 637.3 | |
| 0.00 | 1.30 | 0.00 | 0.71 | 15.10 | 46.68 | -12.90 | 29.75 | 0.4361 | 950.0 | 791.4 | |
| 0.00 | 1.12 | 0.00 | 0.62 | 14.37 | 46.54 | -13.04 | 30.91 | 0.4273 | 597.0 | 583.2 | |
| 0.00 | 1.73 | 0.00 | 0.95 | 14.67 | 46.08 | -13.50 | 31.42 | 0.4351 | 936.0 | 804.3 | |
| 0.00 | 0.78 | 0.00 | 0.43 | 14.32 | 46.07 | -13.51 | 31.87 | 0.4305 | 684.0 | 568.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
