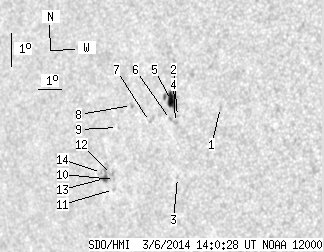

SDO HMI 2014-03-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.21 | 38.05 | 7.32 | 27.55 | -11.10 | 11.75 | -47.28 | 98.44 | 0.7309 | 275.0 | 87.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 14:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.12 | -10.68 | 14.98 | -44.05 | 97.90 | 0.6921 | 492.0 | 382.6 | |
| 0.00 | 0.69 | 0.00 | 0.49 | -10.78 | 13.11 | -45.92 | 98.03 | 0.7150 | 606.0 | 430.6 | |
| 0.00 | 0.86 | 0.00 | 0.62 | -12.58 | 12.72 | -46.31 | 100.53 | 0.7201 | 445.0 | 422.6 | |
| 0.00 | 1.99 | 0.00 | 1.41 | -10.95 | 12.99 | -46.04 | 98.26 | 0.7165 | 677.0 | 521.6 | |
| 8.22 | 15.65 | 5.82 | 11.09 | -10.29 | 12.95 | -46.08 | 97.33 | 0.7170 | 731.4 | 435.8 | |
| 0.00 | 1.82 | 0.00 | 1.29 | -10.84 | 12.79 | -46.24 | 98.11 | 0.7188 | 629.0 | 505.3 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -10.82 | 11.87 | -47.16 | 98.07 | 0.7298 | 427.0 | 405.9 | |
| 0.00 | 1.99 | 0.00 | 1.45 | -10.27 | 11.17 | -47.86 | 97.32 | 0.7380 | 516.0 | 419.3 | |
| 0.00 | 0.52 | 0.00 | 0.38 | -10.86 | 10.40 | -48.62 | 98.12 | 0.7468 | 398.0 | 391.7 | |
| 0.00 | 0.35 | 0.00 | 0.26 | -12.38 | 9.90 | -49.13 | 100.15 | 0.7526 | -427.0 | -344.5 | |
| 0.00 | 0.69 | 0.00 | 0.52 | -12.67 | 9.78 | -49.25 | 100.53 | 0.7541 | -665.0 | -526.0 | |
| 0.00 | 2.08 | 0.00 | 1.56 | -12.22 | 9.80 | -49.23 | 99.93 | 0.7537 | -725.0 | -577.4 | |
| 1.99 | 7.96 | 1.50 | 6.01 | -12.31 | 9.45 | -49.58 | 100.04 | 0.7577 | -620.8 | -523.6 | |
| 0.00 | 0.86 | 0.00 | 0.66 | -12.12 | 9.36 | -49.67 | 99.79 | 0.7587 | -386.0 | -354.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
