SDO HMI 2014-03-06 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.38 | 274.77 | 23.92 | 164.36 | -25.59 | 88.24 | 29.76 | 233.13 | 0.5606 | -183.6 | -116.2 | |
|
previous
or next observation for the same group /

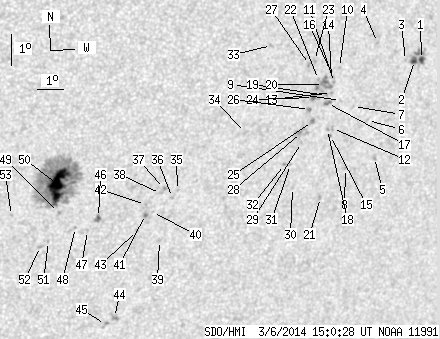

back to the solar disc SDO HMI 2014-03-06 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 16.08 | 1.46 | 10.45 | -21.71 | 97.66 | 39.19 | 244.81 | 0.6511 | 670.9 | 607.8 | |
| 2.85 | -1.00 | 1.85 | -1.00 | -21.76 | 97.39 | 38.91 | 244.63 | 0.6480 | 922.4 | 999999 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -21.78 | 97.03 | 38.55 | 244.45 | 0.6437 | 641.0 | 502.8 | |
| 0.00 | 1.47 | 0.00 | 0.93 | -21.32 | 95.75 | 37.27 | 244.65 | 0.6265 | 801.0 | 638.6 | |
| 0.00 | 2.59 | 0.00 | 1.69 | -24.84 | 96.79 | 38.31 | 239.83 | 0.6530 | -611.0 | -484.4 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -23.73 | 96.11 | 37.63 | 241.16 | 0.6404 | 601.0 | 427.2 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -23.34 | 95.40 | 36.93 | 241.42 | 0.6305 | 549.0 | 445.2 | |
| 0.00 | 1.12 | 0.00 | 0.73 | -25.27 | 95.73 | 37.26 | 238.71 | 0.6429 | -681.0 | -552.5 | |
| 0.00 | 0.43 | 0.00 | 0.27 | -23.19 | 94.83 | 36.35 | 241.38 | 0.6230 | 397.0 | 255.4 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -22.19 | 94.49 | 36.01 | 242.76 | 0.6145 | 588.0 | 494.1 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -22.66 | 94.43 | 35.95 | 242.00 | 0.6158 | 553.0 | 473.5 | |
| 0.00 | 1.64 | 0.00 | 1.04 | -24.07 | 94.79 | 36.31 | 240.02 | 0.6265 | 544.0 | 443.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -22.97 | 94.40 | 35.92 | 241.51 | 0.6169 | 526.0 | 432.0 | |
| 0.00 | 2.42 | 0.00 | 1.51 | -22.51 | 94.26 | 35.79 | 242.15 | 0.6132 | 540.0 | 490.8 | |
| 0.00 | 1.12 | 0.00 | 0.71 | -24.29 | 94.78 | 36.31 | 239.69 | 0.6274 | 530.0 | 472.8 | |
| 0.00 | 1.21 | 0.00 | 0.76 | -22.30 | 94.16 | 35.68 | 242.43 | 0.6111 | 601.0 | 577.5 | |
| 1.04 | 3.46 | 0.65 | 2.17 | -23.32 | 94.35 | 35.87 | 240.95 | 0.6178 | 658.5 | 567.1 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -24.12 | 94.60 | 36.13 | 239.86 | 0.6245 | 735.0 | 700.4 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -23.08 | 94.24 | 35.76 | 241.26 | 0.6154 | 724.0 | 635.9 | |
| 0.00 | 14.10 | 0.00 | 8.80 | -22.75 | 94.02 | 35.54 | 241.67 | 0.6113 | 905.0 | 792.6 | |
| 0.00 | 1.47 | 0.00 | 0.95 | -26.23 | 95.05 | 36.57 | 236.95 | 0.6399 | 646.0 | 626.4 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -22.61 | 93.78 | 35.30 | 241.77 | 0.6077 | 795.0 | 711.7 | |
| 0.00 | 1.12 | 0.00 | 0.70 | -22.04 | 93.46 | 34.98 | 242.50 | 0.6013 | 703.0 | 622.0 | |
| 0.95 | 2.59 | 0.59 | 1.62 | -23.17 | 93.75 | 35.27 | 240.87 | 0.6099 | 913.3 | 697.7 | |
| 0.00 | 2.94 | 0.00 | 1.84 | -23.91 | 93.94 | 35.46 | 239.83 | 0.6157 | 800.0 | 667.1 | |
| 0.00 | 2.16 | 0.00 | 1.35 | -23.55 | 93.70 | 35.22 | 240.27 | 0.6112 | 843.0 | 728.5 | |
| 0.00 | 1.73 | 0.00 | 1.07 | -22.17 | 93.30 | 34.82 | 242.21 | 0.5999 | 890.0 | 742.5 | |
| 0.00 | 6.57 | 0.00 | 4.11 | -24.28 | 93.61 | 35.13 | 239.10 | 0.6136 | 798.0 | 720.9 | |
| 0.00 | 1.04 | 0.00 | 0.65 | -24.59 | 93.71 | 35.23 | 238.68 | 0.6163 | 587.0 | 453.6 | |
| 0.00 | 1.47 | 0.00 | 0.93 | -26.00 | 93.82 | 35.34 | 236.62 | 0.6249 | 334.0 | 352.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -25.29 | 93.50 | 35.02 | 237.50 | 0.6175 | 750.0 | 649.1 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -25.31 | 93.26 | 34.79 | 237.34 | 0.6149 | 832.0 | 742.8 | |
| 0.00 | 1.47 | 0.00 | 0.89 | -21.69 | 91.69 | 33.22 | 242.17 | 0.5778 | 682.0 | 587.8 | |
| 0.00 | 1.90 | 0.00 | 1.16 | -24.42 | 91.44 | 32.97 | 237.64 | 0.5888 | 697.0 | 541.7 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -26.38 | 89.38 | 30.90 | 233.22 | 0.5767 | -556.0 | -491.8 | |
| 0.00 | 1.30 | 0.00 | 0.78 | -26.61 | 89.26 | 30.78 | 232.77 | 0.5768 | -630.0 | -550.5 | |
| 0.00 | 1.90 | 0.00 | 1.15 | -26.35 | 88.87 | 30.39 | 232.90 | 0.5706 | -857.0 | -642.7 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -26.51 | 88.76 | 30.28 | 232.56 | 0.5705 | -758.0 | -611.4 | |
| 0.00 | 1.99 | 0.00 | 1.21 | -27.99 | 89.17 | 30.69 | 230.63 | 0.5853 | -629.0 | -490.7 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -27.13 | 88.63 | 30.16 | 231.52 | 0.5733 | -562.0 | -385.9 | |
| 0.00 | 2.59 | 0.00 | 1.56 | -27.20 | 88.39 | 29.91 | 231.21 | 0.5711 | -825.0 | -704.4 | |
| 0.00 | 0.95 | 0.00 | 0.57 | -26.89 | 88.30 | 29.82 | 231.62 | 0.5679 | -824.0 | -689.3 | |
| 0.00 | 0.78 | 0.00 | 0.47 | -27.72 | 88.23 | 29.75 | 230.30 | 0.5731 | 641.0 | 561.1 | |
| 0.00 | 3.98 | 0.00 | 2.44 | -30.54 | 88.22 | 29.75 | 226.19 | 0.5944 | -738.0 | -630.1 | |
| 0.00 | 2.77 | 0.00 | 1.70 | -30.79 | 87.95 | 29.47 | 225.63 | 0.5935 | -738.0 | -566.2 | |
| 0.86 | 3.29 | 0.51 | 1.95 | -27.40 | 86.64 | 28.16 | 229.50 | 0.5532 | -809.1 | -647.3 | |
| 0.00 | 1.04 | 0.00 | 0.62 | -27.83 | 86.34 | 27.86 | 228.58 | 0.5533 | -646.0 | -512.0 | |
| 0.00 | 1.04 | 0.00 | 0.61 | -27.76 | 85.87 | 27.39 | 228.27 | 0.5476 | -797.0 | -618.8 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -27.32 | 85.11 | 26.63 | 228.27 | 0.5358 | -694.0 | -507.1 | |
| 32.43 | 164.99 | 18.86 | 95.85 | -26.44 | 84.85 | 26.37 | 229.42 | 0.5258 | -1203.0 | -434.5 | |
| 0.00 | 0.52 | 0.00 | 0.31 | -28.26 | 84.98 | 26.50 | 226.71 | 0.5421 | -739.0 | -587.3 | |
| 0.00 | 1.99 | 0.00 | 1.17 | -28.43 | 84.72 | 26.24 | 226.20 | 0.5409 | -659.0 | -622.3 | |
| 0.00 | 0.95 | 0.00 | 0.55 | -27.50 | 83.40 | 24.93 | 226.34 | 0.5188 | -863.0 | -642.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
