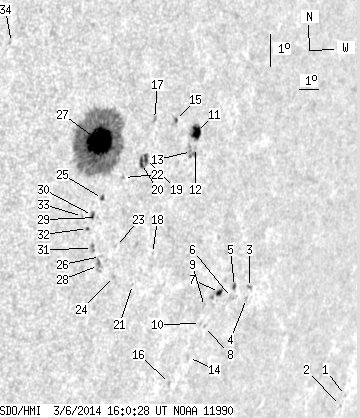

SDO HMI 2014-03-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.68 | 336.58 | 49.83 | 258.18 | -12.81 | 108.19 | 50.26 | 259.35 | 0.7646 | 463.0 | 271.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 1.01 | -18.28 | 123.82 | 65.89 | 253.16 | 0.9073 | 367.0 | 315.5 | |
| 0.00 | 0.69 | 0.00 | 0.80 | -18.61 | 123.68 | 65.75 | 252.80 | 0.9064 | 425.0 | 368.5 | |
| 0.43 | 1.99 | 0.40 | 1.83 | -15.80 | 115.97 | 58.04 | 255.84 | 0.8441 | 613.8 | 533.3 | |
| 0.00 | 1.99 | 0.00 | 1.82 | -16.14 | 115.95 | 58.02 | 255.44 | 0.8440 | 568.0 | 424.3 | |
| 1.04 | 2.33 | 0.93 | 2.10 | -15.86 | 115.13 | 57.20 | 255.74 | 0.8364 | 545.4 | 465.5 | |
| 0.00 | 3.72 | 0.00 | 3.34 | -16.20 | 115.10 | 57.18 | 255.34 | 0.8363 | 234.0 | 305.7 | |
| 2.68 | 7.52 | 2.36 | 6.61 | -16.12 | 114.39 | 56.46 | 255.40 | 0.8296 | -375.9 | -259.7 | |
| 0.00 | 0.86 | 0.00 | 0.76 | -17.20 | 114.03 | 56.10 | 254.08 | 0.8267 | 53.0 | -14.2 | |
| 0.00 | 0.78 | 0.00 | 0.68 | -16.61 | 113.76 | 55.83 | 254.78 | 0.8239 | -331.0 | -265.0 | |
| 0.00 | 0.95 | 0.00 | 0.83 | -17.13 | 113.77 | 55.84 | 254.14 | 0.8243 | -224.0 | -255.0 | |
| 8.91 | 13.14 | 7.33 | 10.81 | -11.55 | 111.54 | 53.61 | 260.97 | 0.8009 | 756.3 | 567.9 | |
| 0.00 | 1.04 | 0.00 | 0.86 | -11.99 | 111.61 | 53.68 | 260.41 | 0.8016 | 491.0 | 416.1 | |
| 0.00 | 6.57 | 0.00 | 5.40 | -12.13 | 111.45 | 53.52 | 260.24 | 0.7999 | 219.0 | 236.1 | |
| 0.00 | 1.56 | 0.00 | 1.35 | -18.20 | 113.60 | 55.67 | 252.84 | 0.8233 | -158.0 | -147.2 | |
| 0.00 | 3.11 | 0.00 | 2.50 | -11.30 | 110.41 | 52.48 | 261.30 | 0.7891 | 752.0 | 653.1 | |
| 0.00 | 1.64 | 0.00 | 1.41 | -19.07 | 112.97 | 55.04 | 251.73 | 0.8179 | -474.0 | -372.8 | |
| 0.00 | 1.38 | 0.00 | 1.09 | -11.37 | 109.38 | 51.46 | 261.21 | 0.7782 | -398.0 | -389.0 | |
| 0.00 | 0.86 | 0.00 | 0.70 | -15.32 | 110.48 | 52.55 | 256.19 | 0.7908 | -367.0 | -312.8 | |
| 2.33 | 10.72 | 1.83 | 8.39 | -12.56 | 109.26 | 51.33 | 259.68 | 0.7769 | -559.5 | -456.1 | |
| 2.51 | -19.00 | 1.96 | -19.00 | -12.72 | 109.11 | 51.18 | 259.46 | 0.7753 | -616.1 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.55 | -16.33 | 109.84 | 51.91 | 254.87 | 0.7847 | -529.0 | -495.8 | |
| 0.00 | 1.30 | 0.00 | 1.00 | -13.21 | 108.37 | 50.44 | 258.80 | 0.7675 | -389.0 | -263.1 | |
| 0.00 | 0.69 | 0.00 | 0.54 | -15.28 | 108.67 | 50.74 | 256.13 | 0.7717 | -365.0 | -317.6 | |
| 0.00 | 1.64 | 0.00 | 1.28 | -16.18 | 108.83 | 50.90 | 254.97 | 0.7740 | -72.0 | -107.5 | |
| 0.95 | 2.25 | 0.72 | 1.70 | -13.93 | 107.57 | 49.64 | 257.83 | 0.7590 | -262.2 | -95.5 | |
| 0.00 | 1.04 | 0.00 | 0.79 | -15.65 | 108.01 | 50.08 | 255.60 | 0.7649 | 159.0 | 163.3 | |
| 44.10 | 251.44 | 33.00 | 188.05 | -12.26 | 106.98 | 49.05 | 260.02 | 0.7518 | 1077.7 | 380.8 | |
| 0.00 | 5.97 | 0.00 | 4.57 | -15.92 | 108.01 | 50.08 | 255.24 | 0.7650 | -759.0 | -544.9 | |
| 0.00 | 0.43 | 0.00 | 0.33 | -14.51 | 107.51 | 49.58 | 257.06 | 0.7586 | -141.0 | -99.6 | |
| 1.21 | 3.03 | 0.91 | 2.28 | -14.47 | 107.26 | 49.33 | 257.09 | 0.7558 | -469.6 | -371.0 | |
| 0.00 | 3.37 | 0.00 | 2.56 | -15.44 | 107.56 | 49.63 | 255.82 | 0.7598 | -756.0 | -649.5 | |
| 0.52 | 1.38 | 0.39 | 1.04 | -14.88 | 107.14 | 49.22 | 256.54 | 0.7548 | -688.5 | -633.7 | |
| 0.00 | 1.12 | 0.00 | 0.84 | -14.54 | 106.81 | 48.88 | 256.96 | 0.7508 | -566.0 | -483.9 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -9.68 | 102.54 | 44.61 | 263.54 | 0.6990 | -412.0 | -441.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
