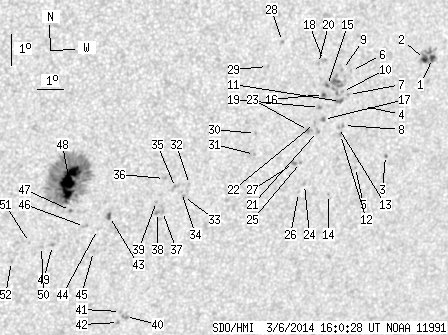

SDO HMI 2014-03-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.39 | 275.97 | 22.88 | 165.51 | -25.66 | 88.00 | 30.08 | 233.27 | 0.5645 | -192.3 | -141.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 16:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.25 | 18.24 | 1.47 | 11.93 | -21.72 | 97.69 | 39.77 | 245.00 | 0.6580 | 661.0 | 623.0 | |
| 2.85 | -1.00 | 1.86 | -1.00 | -21.78 | 97.38 | 39.45 | 244.80 | 0.6545 | 881.5 | 999999 | |
| 0.35 | 1.21 | 0.23 | 0.80 | -24.83 | 96.82 | 38.89 | 240.11 | 0.6595 | -609.0 | -538.3 | |
| 0.00 | 0.78 | 0.00 | 0.50 | -23.39 | 95.40 | 37.47 | 241.59 | 0.6371 | 516.0 | 372.4 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -25.29 | 95.73 | 37.80 | 238.94 | 0.6492 | -640.0 | -526.0 | |
| 0.00 | 0.52 | 0.00 | 0.33 | -22.33 | 94.57 | 36.64 | 242.84 | 0.6228 | 572.0 | 474.0 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -23.07 | 94.68 | 36.75 | 241.75 | 0.6272 | 508.0 | 285.7 | |
| 0.00 | 0.69 | 0.00 | 0.44 | -24.03 | 94.79 | 36.86 | 240.35 | 0.6328 | 555.0 | 455.8 | |
| 0.00 | 0.86 | 0.00 | 0.54 | -22.32 | 94.21 | 36.28 | 242.68 | 0.6184 | 764.0 | 603.5 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -22.99 | 94.41 | 36.49 | 241.74 | 0.6237 | 484.0 | 405.5 | |
| 0.52 | 22.31 | 0.33 | 14.05 | -23.30 | 94.43 | 36.50 | 241.28 | 0.6253 | 623.7 | 689.9 | |
| 0.00 | 1.47 | 0.00 | 0.94 | -24.31 | 94.76 | 36.84 | 239.91 | 0.6337 | 720.0 | 506.7 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -24.11 | 94.61 | 36.68 | 240.15 | 0.6310 | 719.0 | 616.2 | |
| 0.00 | 0.86 | 0.00 | 0.56 | -26.20 | 94.94 | 37.01 | 237.23 | 0.6447 | 679.0 | 619.8 | |
| 0.43 | -11.00 | 0.27 | -11.00 | -22.85 | 93.77 | 35.84 | 241.66 | 0.6154 | 900.8 | 999999 | |
| 0.69 | 1.73 | 0.43 | 1.08 | -23.14 | 93.70 | 35.77 | 241.18 | 0.6158 | 853.8 | 733.0 | |
| 0.00 | 2.16 | 0.00 | 1.36 | -23.90 | 93.94 | 36.01 | 240.13 | 0.6221 | 768.0 | 675.1 | |
| 0.00 | 2.08 | 0.00 | 1.29 | -22.10 | 93.39 | 35.46 | 242.65 | 0.6075 | 776.0 | 668.5 | |
| 0.00 | 1.30 | 0.00 | 0.81 | -23.54 | 93.66 | 35.74 | 240.54 | 0.6172 | 845.0 | 723.3 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -22.20 | 93.22 | 35.29 | 242.40 | 0.6059 | 931.0 | 808.0 | |
| 0.00 | 2.08 | 0.00 | 1.31 | -24.29 | 93.82 | 35.89 | 239.49 | 0.6226 | 636.0 | 594.9 | |
| 0.00 | 1.73 | 0.00 | 1.09 | -24.05 | 93.62 | 35.70 | 239.75 | 0.6191 | 664.0 | 601.8 | |
| 0.00 | 2.42 | 0.00 | 1.52 | -24.28 | 93.46 | 35.53 | 239.31 | 0.6183 | 942.0 | 787.1 | |
| 0.00 | 1.12 | 0.00 | 0.72 | -25.96 | 93.86 | 35.93 | 237.01 | 0.6313 | 417.0 | 331.2 | |
| 0.00 | 0.95 | 0.00 | 0.60 | -25.29 | 93.47 | 35.54 | 237.79 | 0.6234 | 712.0 | 628.1 | |
| 0.00 | 0.86 | 0.00 | 0.55 | -26.22 | 93.71 | 35.78 | 236.54 | 0.6310 | 610.0 | 515.0 | |
| 0.00 | 1.90 | 0.00 | 1.20 | -25.34 | 93.20 | 35.27 | 237.57 | 0.6206 | 874.0 | 742.5 | |
| 0.00 | 1.38 | 0.00 | 0.84 | -21.63 | 91.66 | 33.73 | 242.55 | 0.5839 | 693.0 | 588.9 | |
| 0.00 | 1.38 | 0.00 | 0.84 | -22.43 | 91.29 | 33.37 | 241.06 | 0.5832 | 563.0 | 504.5 | |
| 0.00 | 1.04 | 0.00 | 0.64 | -24.51 | 91.42 | 33.50 | 237.82 | 0.5955 | 707.0 | 638.6 | |
| 0.00 | 0.95 | 0.00 | 0.59 | -25.16 | 91.58 | 33.66 | 236.91 | 0.6010 | 772.0 | 620.4 | |
| 0.00 | 0.95 | 0.00 | 0.58 | -26.25 | 89.37 | 31.44 | 233.80 | 0.5819 | -604.0 | -382.1 | |
| 0.00 | 1.04 | 0.00 | 0.63 | -26.64 | 89.25 | 31.32 | 233.13 | 0.5831 | -664.0 | -509.7 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -26.52 | 89.14 | 31.21 | 233.23 | 0.5810 | -523.0 | -405.9 | |
| 0.00 | 3.72 | 0.00 | 2.25 | -26.38 | 88.86 | 30.93 | 233.25 | 0.5770 | -778.0 | -612.0 | |
| 0.00 | 1.64 | 0.00 | 0.99 | -26.12 | 88.36 | 30.44 | 233.29 | 0.5696 | -648.0 | -473.4 | |
| 0.00 | 1.21 | 0.00 | 0.73 | -27.16 | 88.59 | 30.66 | 231.86 | 0.5792 | -612.0 | -523.1 | |
| 0.00 | 1.64 | 0.00 | 0.99 | -27.20 | 88.41 | 30.48 | 231.66 | 0.5775 | -854.0 | -730.3 | |
| 0.00 | 1.12 | 0.00 | 0.68 | -26.86 | 88.27 | 30.34 | 232.08 | 0.5735 | -773.0 | -649.6 | |
| 0.00 | 3.63 | 0.00 | 2.24 | -30.57 | 88.24 | 30.31 | 226.60 | 0.6003 | -584.0 | -622.6 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -30.42 | 87.99 | 30.06 | 226.61 | 0.5966 | -511.0 | -537.4 | |
| 0.00 | 1.30 | 0.00 | 0.80 | -30.78 | 88.03 | 30.10 | 226.15 | 0.5998 | -706.0 | -584.4 | |
| 0.95 | 2.25 | 0.57 | 1.34 | -27.43 | 86.63 | 28.70 | 229.90 | 0.5594 | -782.4 | -650.2 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -27.87 | 86.29 | 28.36 | 228.96 | 0.5590 | -644.0 | -563.6 | |
| 0.00 | 1.12 | 0.00 | 0.67 | -28.57 | 86.34 | 28.41 | 227.94 | 0.5651 | -628.0 | -467.5 | |
| 0.00 | 2.25 | 0.00 | 1.33 | -27.80 | 85.78 | 27.85 | 228.62 | 0.5529 | -733.0 | -611.2 | |
| 0.00 | 1.21 | 0.00 | 0.71 | -27.32 | 85.12 | 27.19 | 228.77 | 0.5419 | -649.0 | -516.7 | |
| 30.35 | 170.77 | 17.72 | 99.62 | -26.45 | 84.85 | 26.93 | 229.92 | 0.5320 | -1209.7 | -440.5 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -28.46 | 84.74 | 26.82 | 226.69 | 0.5472 | -777.0 | -631.5 | |
| 0.00 | 1.30 | 0.00 | 0.76 | -28.51 | 84.34 | 26.41 | 226.24 | 0.5434 | -552.0 | -568.0 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -28.41 | 83.86 | 25.93 | 225.94 | 0.5375 | -634.0 | -532.6 | |
| 0.00 | 0.95 | 0.00 | 0.56 | -29.05 | 83.35 | 25.42 | 224.48 | 0.5378 | -719.0 | -516.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
