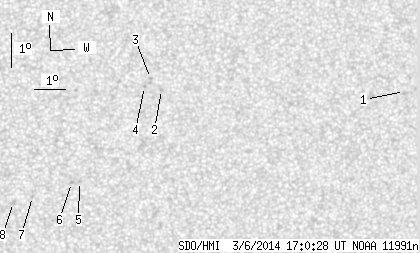

SDO HMI 2014-03-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.33 | 0.00 | 4.80 | -14.07 | 71.72 | 14.34 | 241.96 | 0.2744 | -668.5 | -599.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.33 | -12.00 | 81.21 | 23.83 | 256.69 | 0.4079 | 674.0 | 588.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -12.27 | 73.36 | 15.98 | 251.06 | 0.2858 | -818.0 | -581.7 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -11.95 | 72.99 | 15.62 | 251.80 | 0.2785 | -972.0 | -807.6 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -12.19 | 72.82 | 15.44 | 250.78 | 0.2769 | -972.0 | -846.0 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -15.09 | 70.94 | 13.57 | 238.28 | 0.2675 | -797.0 | -654.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -15.13 | 70.69 | 13.32 | 237.71 | 0.2642 | -878.0 | -803.0 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -15.58 | 69.49 | 12.11 | 233.83 | 0.2515 | -868.0 | -673.8 | |
| 0.00 | 2.33 | 0.00 | 1.19 | -15.78 | 68.90 | 11.52 | 231.88 | 0.2455 | -717.0 | -612.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
