group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11993	3.89	30.36	2.87	22.72	17.17	99.83	42.45	300.63	0.7519	316.5	220.8

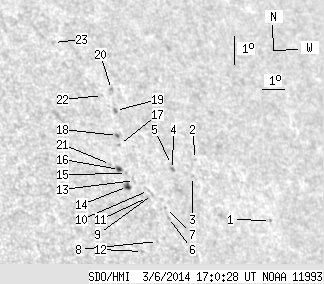

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-03-06 17:00:28 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	0.78	0.00	0.64	15.88	105.21	47.83	296.34	0.7977	-433.0	-400.9
2	0.00	0.78	0.00	0.61	17.58	102.36	44.98	299.71	0.7782	-630.0	-501.7
3	0.00	0.95	0.00	0.74	17.00	102.04	44.66	299.20	0.7724	-567.0	-463.5
4	0.00	1.64	0.00	1.26	17.15	101.21	43.84	299.82	0.7652	-623.0	-613.7
5	0.00	1.64	0.00	1.26	17.31	101.22	43.84	300.01	0.7660	-334.0	-475.2
6	0.00	1.30	0.00	0.97	15.55	100.59	43.21	298.25	0.7512	469.0	399.5
7	0.00	0.78	0.00	0.58	15.86	100.55	43.17	298.65	0.7523	363.0	329.9
8	0.00	0.69	0.00	0.51	14.72	99.92	42.54	297.61	0.7402	593.0	492.0
9	0.00	1.21	0.00	0.90	16.24	100.10	42.72	299.36	0.7497	308.0	264.5
10	0.00	0.78	0.00	0.58	16.36	99.96	42.58	299.57	0.7489	369.0	311.1
11	0.00	1.56	0.00	1.15	16.12	99.86	42.48	299.35	0.7466	356.0	349.4
12	0.00	1.21	0.00	0.88	14.34	99.20	41.82	297.53	0.7309	609.0	462.5
13	0.00	0.95	0.00	0.70	16.63	99.45	42.07	300.20	0.7452	442.0	316.5
14	1.90	3.29	1.40	2.41	16.41	99.09	41.72	300.13	0.7404	762.9	619.2
15	0.00	0.78	0.00	0.57	16.84	99.17	41.79	300.60	0.7434	435.0	292.9
16	1.47	2.85	1.08	2.10	16.94	98.91	41.53	300.89	0.7414	623.4	467.7
17	0.00	0.86	0.00	0.64	17.77	99.14	41.76	301.74	0.7481	663.0	525.1
18	0.52	1.82	0.39	1.35	18.07	99.14	41.76	302.09	0.7497	634.8	504.5
19	0.00	1.82	0.00	1.37	18.90	99.31	41.93	302.97	0.7559	573.0	411.1
20	0.00	1.64	0.00	1.25	19.59	99.36	41.98	303.74	0.7602	533.0	493.1
21	0.00	1.04	0.00	0.76	17.07	98.57	41.19	301.25	0.7387	646.0	505.9
22	0.00	0.52	0.00	0.39	19.36	98.90	41.52	303.74	0.7545	606.0	507.7
23	0.00	1.47	0.00	1.10	20.98	97.37	39.99	306.59	0.7496	554.0	477.3

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
