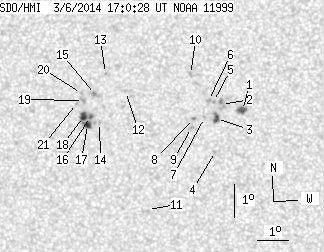

SDO HMI 2014-03-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.14 | 53.87 | 6.77 | 27.72 | -16.79 | 44.60 | -12.77 | 129.00 | 0.2728 | -69.9 | -2.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.85 | 5.45 | 1.45 | 2.77 | -16.82 | 47.59 | -9.78 | 135.93 | 0.2349 | 1198.2 | 909.8 | |
| 0.00 | 4.50 | 0.00 | 2.29 | -16.62 | 46.94 | -10.43 | 133.54 | 0.2405 | 727.0 | 842.0 | |
| 2.42 | 4.41 | 1.24 | 2.25 | -17.04 | 46.76 | -10.62 | 134.35 | 0.2474 | 993.3 | 854.4 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -18.03 | 46.67 | -10.71 | 136.97 | 0.2601 | 598.0 | 496.1 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -16.52 | 46.70 | -10.68 | 132.59 | 0.2425 | 964.0 | 849.9 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -16.49 | 46.54 | -10.84 | 132.09 | 0.2441 | 807.0 | 702.4 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -17.00 | 46.38 | -10.99 | 133.27 | 0.2516 | 895.0 | 648.2 | |
| 0.00 | 1.21 | 0.00 | 0.62 | -17.02 | 46.03 | -11.34 | 132.47 | 0.2561 | 868.0 | 737.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -17.29 | 45.95 | -11.42 | 133.08 | 0.2601 | 920.0 | 744.1 | |
| 0.00 | 2.07 | 0.00 | 1.06 | -15.69 | 46.02 | -11.36 | 128.22 | 0.2425 | 805.0 | 596.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -19.74 | 44.36 | -13.02 | 135.98 | 0.3064 | 461.0 | 337.9 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -16.15 | 43.93 | -13.45 | 125.30 | 0.2749 | -769.0 | -537.4 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -15.59 | 43.33 | -14.04 | 122.48 | 0.2783 | -922.0 | -745.4 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -17.06 | 43.03 | -14.35 | 126.33 | 0.2953 | -893.0 | -656.8 | |
| 0.00 | 2.94 | 0.00 | 1.52 | -16.21 | 42.97 | -14.41 | 123.75 | 0.2887 | -1136.0 | -838.1 | |
| 0.95 | 16.60 | 0.49 | 8.62 | -16.87 | 42.76 | -14.62 | 125.31 | 0.2973 | -1174.0 | -760.2 | |
| 3.20 | -16.00 | 1.66 | -16.00 | -17.10 | 42.64 | -14.73 | 125.78 | 0.3010 | -920.6 | 999999 | |
| 3.72 | -16.00 | 1.93 | -16.00 | -16.86 | 42.53 | -14.84 | 124.91 | 0.3003 | -1042.0 | 999999 | |
| 0.00 | 2.94 | 0.00 | 1.52 | -16.38 | 42.57 | -14.80 | 123.58 | 0.2956 | -1123.0 | -737.0 | |
| 0.00 | 1.04 | 0.00 | 0.54 | -16.17 | 42.52 | -14.85 | 122.88 | 0.2945 | -813.0 | -650.4 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -16.46 | 42.34 | -15.04 | 123.44 | 0.2995 | -732.0 | -582.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
