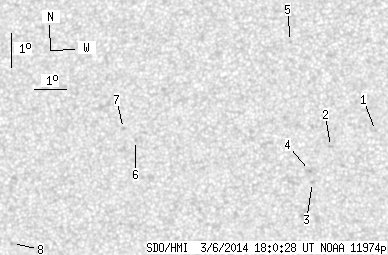

SDO HMI 2014-03-06 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.43 | 0.00 | 4.83 | -11.77 | 43.15 | -13.68 | 110.17 | 0.2477 | 470.2 | 395.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.39 | -11.31 | 47.41 | -9.42 | 114.35 | 0.1769 | 917.0 | 693.8 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -11.76 | 46.01 | -10.82 | 113.75 | 0.2017 | 884.0 | 726.6 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -12.82 | 45.40 | -11.43 | 117.27 | 0.2183 | 868.0 | 690.9 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -12.46 | 45.32 | -11.50 | 115.61 | 0.2169 | 956.0 | 796.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -8.60 | 44.89 | -11.93 | 97.35 | 0.2071 | 759.0 | 521.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -11.39 | 39.93 | -16.90 | 105.24 | 0.2967 | 921.0 | 714.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -11.02 | 39.57 | -17.26 | 103.78 | 0.3012 | -873.0 | -637.7 | |
| 0.00 | 0.95 | 0.00 | 0.51 | -14.30 | 35.72 | -21.10 | 110.58 | 0.3743 | -670.0 | -514.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
