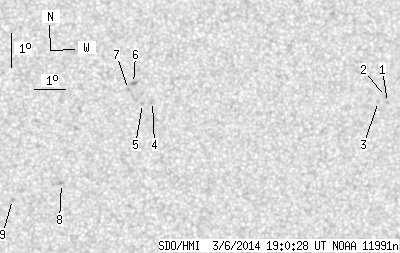

SDO HMI 2014-03-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 12.09 | 0.00 | 6.34 | -12.94 | 74.62 | 18.35 | 250.09 | 0.3273 | -307.0 | -347.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.57 | -12.22 | 81.36 | 25.09 | 256.67 | 0.4277 | 786.0 | 662.3 | |
| 0.00 | 1.12 | 0.00 | 0.61 | -12.04 | 81.28 | 25.01 | 257.05 | 0.4260 | 773.0 | 695.2 | |
| 0.00 | 0.78 | 0.00 | 0.42 | -12.20 | 81.06 | 24.79 | 256.59 | 0.4230 | 833.0 | 676.6 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -12.52 | 73.70 | 17.43 | 251.56 | 0.3096 | -727.0 | -601.5 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.59 | 73.39 | 17.12 | 251.06 | 0.3050 | -820.0 | -614.2 | |
| 0.00 | 2.59 | 0.00 | 1.34 | -12.00 | 73.07 | 16.79 | 252.67 | 0.2973 | -1000.0 | -787.5 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -12.19 | 72.92 | 16.64 | 251.94 | 0.2958 | -971.0 | -791.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -15.07 | 70.98 | 14.71 | 240.27 | 0.2836 | -891.0 | -702.8 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -15.59 | 69.46 | 13.19 | 235.99 | 0.2663 | -746.0 | -616.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
