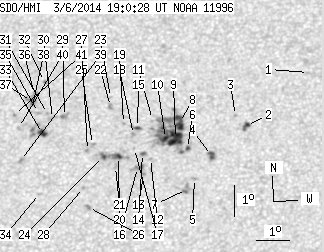

SDO HMI 2014-03-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.34 | 186.37 | 21.00 | 99.65 | 13.81 | 49.86 | -6.42 | 16.72 | 0.3773 | 4.6 | 74.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 19:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.51 | 15.84 | 55.12 | -1.15 | 2.82 | 0.3944 | -776.0 | -542.2 | |
| 1.90 | 4.75 | 1.01 | 2.53 | 14.15 | 53.23 | -3.05 | 8.04 | 0.3699 | -947.4 | -788.3 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 14.47 | 52.89 | -3.39 | 8.79 | 0.3759 | -677.0 | -561.0 | |
| 2.51 | 4.67 | 1.33 | 2.47 | 13.20 | 52.17 | -4.11 | 11.29 | 0.3576 | -1137.8 | -873.7 | |
| 0.00 | 2.16 | 0.00 | 1.14 | 12.48 | 51.66 | -4.61 | 13.11 | 0.3478 | -775.0 | -648.3 | |
| 0.95 | 82.13 | 0.51 | 43.84 | 13.44 | 51.43 | -4.84 | 13.11 | 0.3638 | -1015.4 | -455.5 | |
| 0.00 | 5.45 | 0.00 | 2.87 | 12.14 | 51.42 | -4.85 | 14.01 | 0.3432 | -959.0 | -796.0 | |
| 8.47 | -6.00 | 4.53 | -6.00 | 14.27 | 51.17 | -5.11 | 13.25 | 0.3780 | -840.2 | 999999 | |
| 13.49 | -6.00 | 7.19 | -6.00 | 13.76 | 51.05 | -5.22 | 13.87 | 0.3704 | -1177.3 | 999999 | |
| 3.03 | -6.00 | 1.61 | -6.00 | 13.76 | 50.75 | -5.53 | 14.65 | 0.3716 | -1033.9 | 999999 | |
| 0.00 | 0.78 | 0.00 | 0.42 | 14.38 | 50.33 | -5.94 | 15.25 | 0.3830 | -400.0 | -319.0 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 13.13 | 50.30 | -5.97 | 16.25 | 0.3637 | 719.0 | 508.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 12.63 | 50.10 | -6.18 | 17.19 | 0.3568 | 966.0 | 794.1 | |
| 0.52 | 2.33 | 0.28 | 1.24 | 13.30 | 50.05 | -6.22 | 16.76 | 0.3674 | 892.5 | 670.4 | |
| 0.86 | 4.15 | 0.46 | 2.22 | 14.13 | 49.87 | -6.40 | 16.55 | 0.3811 | -666.7 | -438.8 | |
| 0.00 | 4.93 | 0.00 | 2.62 | 12.85 | 49.91 | -6.37 | 17.49 | 0.3612 | 1037.0 | 853.7 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 13.46 | 49.80 | -6.47 | 17.26 | 0.3711 | -94.0 | -153.8 | |
| 0.00 | 2.07 | 0.00 | 1.11 | 13.91 | 49.76 | -6.52 | 17.01 | 0.3782 | 534.0 | 308.5 | |
| 0.00 | 0.86 | 0.00 | 0.46 | 14.26 | 49.44 | -6.84 | 17.50 | 0.3852 | -650.0 | -540.0 | |
| 1.99 | 13.14 | 1.06 | 7.00 | 13.21 | 49.31 | -6.96 | 18.69 | 0.3697 | 989.3 | 831.9 | |
| 0.00 | 1.90 | 0.00 | 1.01 | 12.90 | 49.23 | -7.04 | 19.18 | 0.3653 | 962.0 | 794.2 | |
| 0.00 | 2.68 | 0.00 | 1.44 | 14.81 | 49.02 | -7.25 | 18.05 | 0.3958 | 918.0 | 689.8 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 15.10 | 49.01 | -7.26 | 17.84 | 0.4002 | 575.0 | 438.8 | |
| 1.04 | -20.00 | 0.55 | -20.00 | 13.22 | 48.85 | -7.42 | 19.83 | 0.3723 | 1112.2 | 999999 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 13.61 | 48.50 | -7.77 | 20.32 | 0.3801 | 264.0 | 204.4 | |
| 0.00 | 2.68 | 0.00 | 1.42 | 11.62 | 48.44 | -7.84 | 22.51 | 0.3504 | 951.0 | 778.1 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 13.42 | 48.35 | -7.92 | 20.86 | 0.3781 | 877.0 | 697.1 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 12.25 | 48.27 | -8.01 | 22.26 | 0.3610 | 780.0 | 639.6 | |
| 0.00 | 3.80 | 0.00 | 2.05 | 14.52 | 47.60 | -8.67 | 21.55 | 0.3990 | 803.0 | 611.8 | |
| 0.00 | 3.89 | 0.00 | 2.10 | 14.47 | 47.23 | -9.04 | 22.44 | 0.4004 | 840.0 | 640.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 14.63 | 47.07 | -9.20 | 22.64 | 0.4038 | 736.0 | 602.3 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 15.66 | 46.93 | -9.34 | 21.96 | 0.4198 | 892.0 | 734.2 | |
| 3.54 | 13.49 | 1.91 | 7.27 | 13.99 | 46.94 | -9.33 | 23.57 | 0.3952 | 1154.7 | 822.5 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 12.09 | 46.92 | -9.36 | 25.75 | 0.3675 | 683.0 | 536.8 | |
| 0.00 | 1.99 | 0.00 | 1.08 | 14.67 | 46.79 | -9.49 | 23.22 | 0.4061 | 818.0 | 633.1 | |
| 0.00 | 2.94 | 0.00 | 1.60 | 15.25 | 46.64 | -9.64 | 22.98 | 0.4156 | 594.0 | 607.7 | |
| 1.04 | 5.36 | 0.56 | 2.91 | 15.03 | 46.55 | -9.72 | 23.37 | 0.4128 | 983.4 | 791.0 | |
| 0.00 | 0.52 | 0.00 | 0.28 | 14.74 | 46.57 | -9.71 | 23.64 | 0.4085 | 596.0 | 657.5 | |
| 0.00 | 2.59 | 0.00 | 1.39 | 13.15 | 46.29 | -9.98 | 25.96 | 0.3873 | 828.0 | 674.2 | |
| 0.00 | 1.38 | 0.00 | 0.75 | 14.20 | 46.18 | -10.09 | 25.02 | 0.4032 | 646.0 | 537.9 | |
| 0.00 | 1.21 | 0.00 | 0.66 | 14.62 | 46.04 | -10.23 | 24.89 | 0.4103 | 887.0 | 648.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
