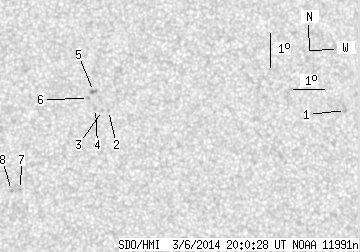

SDO HMI 2014-03-06 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.49 | 0.00 | 6.03 | -12.85 | 73.86 | 18.14 | 250.65 | 0.3231 | -635.8 | -506.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 20:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.47 | 0.00 | 0.81 | -12.22 | 81.39 | 25.67 | 256.87 | 0.4365 | 837.0 | 661.1 | |
| 0.00 | 1.12 | 0.00 | 0.59 | -12.56 | 73.64 | 17.92 | 251.83 | 0.3174 | -810.0 | -603.0 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -12.57 | 73.45 | 17.73 | 251.65 | 0.3145 | -801.0 | -546.2 | |
| 0.00 | 1.47 | 0.00 | 0.77 | -12.52 | 73.22 | 17.50 | 251.62 | 0.3107 | -708.0 | -599.2 | |
| 0.00 | 2.77 | 0.00 | 1.44 | -12.02 | 73.12 | 17.40 | 253.13 | 0.3070 | -959.0 | -798.9 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -12.23 | 72.98 | 17.26 | 252.34 | 0.3056 | -930.0 | -818.1 | |
| 0.00 | 1.21 | 0.00 | 0.63 | -15.02 | 71.00 | 15.28 | 241.28 | 0.2916 | -795.0 | -620.1 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -15.06 | 70.72 | 15.00 | 240.74 | 0.2877 | -920.0 | -711.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
