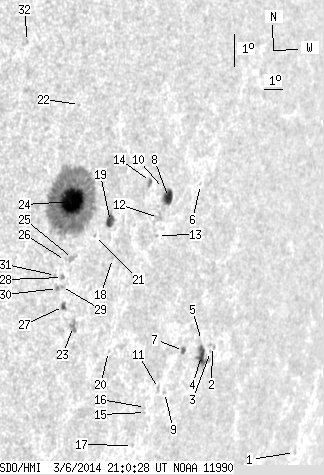

SDO HMI 2014-03-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 64.84 | 335.39 | 54.30 | 273.66 | -12.87 | 108.37 | 53.20 | 259.35 | 0.7957 | 404.2 | 281.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.21 | 0.00 | 1.57 | -18.17 | 123.76 | 68.59 | 253.29 | 0.9252 | 449.0 | 354.6 | |
| 0.00 | 2.68 | 0.00 | 2.67 | -15.75 | 116.14 | 60.97 | 255.97 | 0.8694 | 404.0 | 379.1 | |
| 0.00 | 0.86 | 0.00 | 0.86 | -15.91 | 116.09 | 60.92 | 255.79 | 0.8690 | 428.0 | 372.8 | |
| 8.56 | 15.82 | 8.39 | 15.54 | -16.08 | 115.61 | 60.44 | 255.58 | 0.8650 | 570.7 | 316.7 | |
| 0.00 | 0.26 | 0.00 | 0.25 | -15.64 | 115.39 | 60.22 | 256.08 | 0.8631 | 485.0 | 476.0 | |
| 0.00 | 0.61 | 0.00 | 0.56 | -11.10 | 113.51 | 58.34 | 261.42 | 0.8468 | 408.0 | 342.3 | |
| 1.56 | 3.20 | 1.48 | 3.04 | -16.05 | 114.47 | 59.30 | 255.59 | 0.8553 | -404.1 | -277.2 | |
| 8.47 | 12.02 | 7.51 | 10.64 | -11.67 | 111.87 | 56.70 | 260.79 | 0.8314 | 683.8 | 466.4 | |
| 0.00 | 1.30 | 0.00 | 1.22 | -17.39 | 113.99 | 58.82 | 254.00 | 0.8514 | -331.0 | -206.7 | |
| 0.00 | 0.26 | 0.00 | 0.23 | -11.43 | 111.52 | 56.35 | 261.08 | 0.8281 | 221.0 | 184.0 | |
| 0.00 | 2.51 | 0.00 | 2.33 | -17.31 | 113.59 | 58.41 | 254.08 | 0.8478 | -511.0 | -364.1 | |
| 0.00 | 5.10 | 0.00 | 4.48 | -12.31 | 111.52 | 56.35 | 260.02 | 0.8279 | 48.0 | 53.9 | |
| 0.00 | 0.52 | 0.00 | 0.46 | -12.84 | 111.64 | 56.47 | 259.38 | 0.8291 | -454.0 | -412.3 | |
| 0.86 | 3.29 | 0.75 | 2.83 | -11.30 | 110.77 | 55.60 | 261.26 | 0.8208 | 666.0 | 538.2 | |
| 0.00 | 0.52 | 0.00 | 0.48 | -18.09 | 113.21 | 58.04 | 253.14 | 0.8449 | -366.0 | -383.8 | |
| 0.00 | 0.69 | 0.00 | 0.63 | -17.94 | 113.13 | 57.96 | 253.31 | 0.8441 | -347.0 | -320.9 | |
| 0.00 | 1.12 | 0.00 | 1.03 | -19.13 | 113.00 | 57.83 | 251.89 | 0.8435 | -315.0 | -237.5 | |
| 0.00 | 0.95 | 0.00 | 0.80 | -13.75 | 109.51 | 54.34 | 258.24 | 0.8084 | 186.0 | 139.6 | |
| 5.88 | 8.99 | 4.87 | 7.44 | -12.68 | 109.06 | 53.89 | 259.57 | 0.8037 | -515.6 | -251.2 | |
| 0.00 | 0.78 | 0.00 | 0.67 | -16.50 | 110.35 | 55.18 | 254.88 | 0.8176 | -331.0 | -287.9 | |
| 0.00 | 1.04 | 0.00 | 0.85 | -13.17 | 108.39 | 53.22 | 258.95 | 0.7968 | -253.0 | -261.8 | |
| 0.00 | 0.61 | 0.00 | 0.48 | -9.39 | 106.66 | 51.49 | 263.77 | 0.7789 | 281.0 | 315.4 | |
| 0.00 | 5.79 | 0.00 | 4.72 | -15.95 | 108.27 | 53.10 | 255.44 | 0.7966 | -540.0 | -294.1 | |
| 37.87 | 250.48 | 29.98 | 198.13 | -12.28 | 107.01 | 51.84 | 260.06 | 0.7824 | 954.4 | 369.4 | |
| 0.00 | 3.46 | 0.00 | 2.77 | -13.95 | 107.52 | 52.34 | 257.93 | 0.7880 | 183.0 | 42.0 | |
| 0.00 | 0.43 | 0.00 | 0.34 | -14.04 | 107.19 | 52.02 | 257.80 | 0.7846 | -159.0 | -159.2 | |
| 1.64 | 3.46 | 1.32 | 2.78 | -15.41 | 107.55 | 52.38 | 256.08 | 0.7890 | -568.3 | -394.4 | |
| 0.00 | 1.99 | 0.00 | 1.58 | -14.56 | 107.21 | 52.04 | 257.14 | 0.7850 | -443.0 | -358.6 | |
| 0.00 | 1.64 | 0.00 | 1.31 | -14.83 | 107.25 | 52.08 | 256.80 | 0.7856 | -416.0 | -392.5 | |
| 0.00 | 1.82 | 0.00 | 1.44 | -14.91 | 107.08 | 51.91 | 256.69 | 0.7838 | -758.0 | -625.0 | |
| 0.00 | 1.12 | 0.00 | 0.89 | -14.53 | 106.85 | 51.68 | 257.16 | 0.7812 | -504.0 | -386.8 | |
| 0.00 | 0.86 | 0.00 | 0.64 | -7.76 | 103.92 | 48.75 | 266.05 | 0.7490 | -488.0 | -438.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
