SDO HMI 2014-03-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.17 | 161.94 | 31.91 | 140.02 | -10.05 | 359.47 | -55.70 | 97.22 | 0.8218 | 494.6 | 307.6 | |
|
previous
or next observation for the same group /

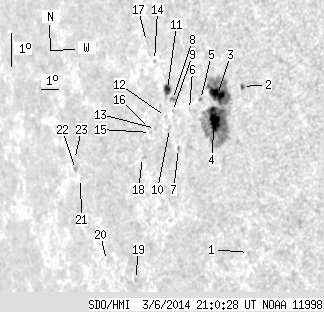

back to the solar disc SDO HMI 2014-03-06 21:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.88 | -14.40 | 0.49 | -54.68 | 102.55 | 0.8119 | 190.0 | 199.9 | |
| 0.86 | 1.82 | 0.71 | 1.49 | -9.50 | 1.63 | -53.54 | 96.45 | 0.8005 | -454.4 | -330.6 | |
| 13.66 | 131.77 | 11.59 | 112.10 | -9.60 | 0.31 | -54.86 | 96.63 | 0.8140 | 899.0 | 385.5 | |
| 17.81 | -3.00 | 15.22 | -3.00 | -10.32 | 359.97 | -55.20 | 97.53 | 0.8171 | 836.8 | 999999 | |
| 0.00 | 1.21 | 0.00 | 1.05 | -9.66 | 359.39 | -55.78 | 96.74 | 0.8231 | 445.0 | 361.1 | |
| 0.00 | 0.78 | 0.00 | 0.69 | -9.89 | 358.73 | -56.44 | 97.05 | 0.8294 | 475.0 | 428.9 | |
| 0.00 | 1.21 | 0.00 | 1.09 | -10.97 | 357.81 | -57.37 | 98.38 | 0.8378 | 182.0 | 251.0 | |
| 0.00 | 2.68 | 0.00 | 2.41 | -9.50 | 357.89 | -57.28 | 96.62 | 0.8376 | 517.0 | 437.9 | |
| 0.00 | 0.95 | 0.00 | 0.86 | -9.85 | 357.79 | -57.38 | 97.05 | 0.8383 | 448.0 | 355.3 | |
| 0.00 | 1.56 | 0.00 | 1.42 | -10.33 | 357.49 | -57.69 | 97.63 | 0.8410 | 388.0 | 412.5 | |
| 4.84 | 8.13 | 4.39 | 7.37 | -9.18 | 357.69 | -57.48 | 96.25 | 0.8396 | 503.6 | 135.7 | |
| 0.00 | 0.69 | 0.00 | 0.63 | -9.95 | 357.36 | -57.81 | 97.19 | 0.8423 | 236.0 | 165.4 | |
| 0.00 | 1.12 | 0.00 | 1.04 | -10.25 | 356.70 | -58.47 | 97.57 | 0.8482 | -445.0 | -421.5 | |
| 0.00 | 0.95 | 0.00 | 0.87 | -8.25 | 357.18 | -57.99 | 95.18 | 0.8448 | 439.0 | 399.0 | |
| 0.00 | 1.12 | 0.00 | 1.05 | -10.33 | 356.38 | -58.79 | 97.68 | 0.8511 | -662.0 | -529.5 | |
| 0.00 | 1.12 | 0.00 | 1.05 | -10.21 | 356.36 | -58.81 | 97.54 | 0.8513 | -414.0 | -330.6 | |
| 0.00 | 0.52 | 0.00 | 0.48 | -7.64 | 356.86 | -58.31 | 94.49 | 0.8481 | 407.0 | 330.7 | |
| 0.00 | 0.61 | 0.00 | 0.58 | -11.01 | 355.69 | -59.48 | 98.51 | 0.8571 | 174.0 | 129.1 | |
| 0.00 | 1.12 | 0.00 | 1.13 | -14.51 | 353.84 | -61.33 | 102.61 | 0.8724 | -368.0 | -300.5 | |
| 0.00 | 0.69 | 0.00 | 0.73 | -13.76 | 352.28 | -62.89 | 101.77 | 0.8851 | -445.0 | -457.6 | |
| 0.00 | 0.52 | 0.00 | 0.56 | -11.20 | 351.65 | -63.53 | 98.90 | 0.8907 | -500.0 | -463.2 | |
| 0.00 | 1.64 | 0.00 | 1.79 | -10.90 | 351.42 | -63.75 | 98.57 | 0.8925 | -543.0 | -521.2 | |
| 0.00 | 0.69 | 0.00 | 0.75 | -10.60 | 351.47 | -63.70 | 98.24 | 0.8923 | -389.0 | -398.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
