SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.77 | 317.84 | 59.36 | 267.20 | -12.94 | 108.53 | 54.46 | 259.28 | 0.8084 | 360.3 | 276.9 | |
|
previous
or next observation for the same group /

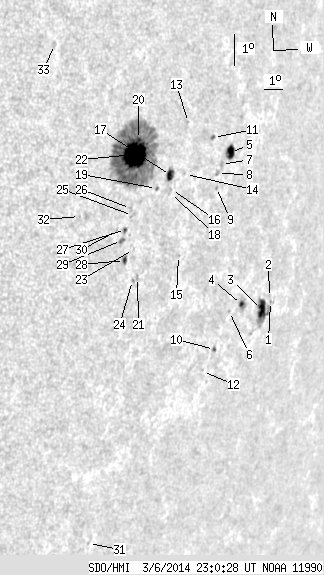

back to the solar disc SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.80 | -15.78 | 116.18 | 62.12 | 255.95 | 0.8788 | 421.0 | 373.7 | |
| 0.00 | 2.42 | 0.00 | 2.48 | -15.67 | 116.06 | 61.99 | 256.07 | 0.8778 | 436.0 | 391.1 | |
| 10.12 | 23.09 | 10.29 | 23.53 | -16.07 | 115.75 | 61.68 | 255.61 | 0.8753 | 577.9 | 358.9 | |
| 2.08 | 7.18 | 2.03 | 7.03 | -16.06 | 114.45 | 60.38 | 255.61 | 0.8645 | -229.2 | 0.7 | |
| 8.13 | 10.90 | 7.43 | 9.96 | -11.69 | 111.98 | 57.91 | 260.74 | 0.8427 | 580.9 | 416.1 | |
| 0.00 | 0.78 | 0.00 | 0.75 | -16.34 | 113.84 | 59.77 | 255.27 | 0.8594 | -344.0 | -294.7 | |
| 0.00 | 2.77 | 0.00 | 2.51 | -12.10 | 111.60 | 57.53 | 260.26 | 0.8391 | 270.0 | 278.6 | |
| 0.00 | 2.51 | 0.00 | 2.26 | -12.38 | 111.47 | 57.40 | 259.92 | 0.8379 | -254.0 | -161.6 | |
| 0.00 | 0.86 | 0.00 | 0.78 | -12.80 | 111.56 | 57.49 | 259.43 | 0.8387 | -490.0 | -439.4 | |
| 0.61 | 1.90 | 0.58 | 1.82 | -17.54 | 113.54 | 59.47 | 253.86 | 0.8571 | -418.7 | -376.9 | |
| 0.61 | 2.16 | 0.54 | 1.92 | -11.35 | 110.91 | 56.84 | 261.17 | 0.8328 | 615.3 | 523.6 | |
| 0.00 | 0.43 | 0.00 | 0.41 | -18.26 | 113.19 | 59.12 | 253.00 | 0.8543 | -364.0 | -334.8 | |
| 0.00 | 0.43 | 0.00 | 0.37 | -11.05 | 109.45 | 55.38 | 261.57 | 0.8187 | -345.0 | -298.8 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -12.59 | 109.76 | 55.69 | 259.69 | 0.8216 | -205.0 | -177.0 | |
| 0.00 | 0.35 | 0.00 | 0.30 | -15.00 | 110.25 | 56.18 | 256.76 | 0.8265 | -473.0 | -514.2 | |
| 0.00 | 0.61 | 0.00 | 0.52 | -13.10 | 109.17 | 55.10 | 259.05 | 0.8158 | -381.0 | -335.3 | |
| 5.19 | 7.70 | 4.40 | 6.52 | -12.70 | 108.98 | 54.91 | 259.55 | 0.8140 | -379.3 | -207.1 | |
| 0.00 | 0.95 | 0.00 | 0.81 | -13.23 | 109.16 | 55.09 | 258.90 | 0.8157 | -336.0 | -275.7 | |
| 0.00 | 1.38 | 0.00 | 1.16 | -13.15 | 108.39 | 54.32 | 258.99 | 0.8080 | -207.0 | -206.4 | |
| 0.95 | 230.56 | 0.77 | 186.90 | -11.80 | 107.05 | 52.98 | 260.67 | 0.7943 | 521.7 | 349.6 | |
| 0.00 | 1.47 | 0.00 | 1.23 | -15.86 | 108.36 | 54.29 | 255.62 | 0.8085 | 262.0 | 176.3 | |
| 37.71 | -20.00 | 30.56 | -20.00 | -12.26 | 106.98 | 52.91 | 260.09 | 0.7936 | 827.2 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.36 | -15.06 | 107.84 | 53.77 | 256.60 | 0.8030 | -182.0 | -252.2 | |
| 0.00 | 1.30 | 0.00 | 1.08 | -15.98 | 108.13 | 54.07 | 255.47 | 0.8064 | -564.0 | -501.8 | |
| 0.00 | 2.51 | 0.00 | 2.05 | -14.07 | 107.44 | 53.37 | 257.82 | 0.7986 | -29.0 | 23.0 | |
| 0.00 | 1.90 | 0.00 | 1.55 | -13.87 | 107.27 | 53.20 | 258.07 | 0.7968 | 310.0 | 256.3 | |
| 0.86 | 2.08 | 0.71 | 1.69 | -14.51 | 107.23 | 53.16 | 257.26 | 0.7966 | -294.0 | -275.1 | |
| 1.73 | 2.77 | 1.42 | 2.27 | -15.43 | 107.50 | 53.43 | 256.12 | 0.7998 | -488.0 | -366.2 | |
| 0.78 | 3.03 | 0.63 | 2.47 | -14.86 | 107.14 | 53.07 | 256.82 | 0.7958 | -527.4 | -433.5 | |
| 0.00 | 1.21 | 0.00 | 0.98 | -14.58 | 106.84 | 52.77 | 257.15 | 0.7926 | -389.0 | -343.1 | |
| 0.00 | 0.95 | 0.00 | 0.84 | -23.99 | 109.86 | 55.79 | 245.87 | 0.8300 | -454.0 | -403.0 | |
| 0.00 | 0.35 | 0.00 | 0.27 | -14.35 | 104.87 | 50.80 | 257.36 | 0.7717 | 430.0 | 489.0 | |
| 0.00 | 1.73 | 0.00 | 1.28 | -9.39 | 102.47 | 48.40 | 263.89 | 0.7443 | -461.0 | -394.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
