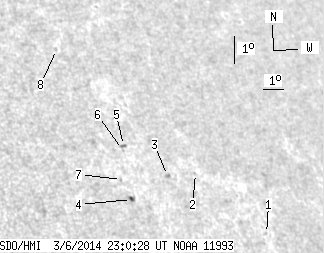

SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.95 | 10.99 | 0.74 | 8.79 | 17.50 | 100.08 | 46.01 | 299.15 | 0.7877 | 143.5 | 157.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.83 | 15.88 | 105.17 | 51.10 | 294.92 | 0.8276 | -450.0 | -345.6 | |
| 0.00 | 0.61 | 0.00 | 0.51 | 17.53 | 102.33 | 48.26 | 298.04 | 0.8084 | -447.0 | -416.7 | |
| 0.00 | 1.90 | 0.00 | 1.55 | 17.33 | 100.96 | 46.89 | 298.47 | 0.7951 | -590.0 | -431.7 | |
| 0.95 | 2.42 | 0.74 | 1.88 | 16.37 | 99.04 | 44.97 | 298.32 | 0.7726 | 598.4 | 530.8 | |
| 0.00 | 2.08 | 0.00 | 1.64 | 18.14 | 99.25 | 45.18 | 300.28 | 0.7828 | 635.0 | 485.2 | |
| 0.00 | 1.73 | 0.00 | 1.37 | 18.00 | 99.16 | 45.09 | 300.16 | 0.7813 | 428.0 | 419.4 | |
| 0.00 | 0.52 | 0.00 | 0.40 | 16.99 | 98.79 | 44.72 | 299.18 | 0.7731 | 558.0 | 491.3 | |
| 0.00 | 0.78 | 0.00 | 0.61 | 21.13 | 97.33 | 43.26 | 304.75 | 0.7803 | 534.0 | 427.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
