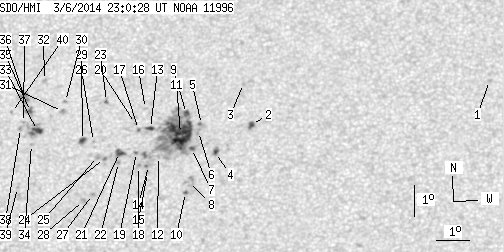

SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.91 | 229.20 | 29.21 | 122.00 | 13.81 | 50.37 | -3.70 | 9.82 | 0.3677 | -122.6 | 1.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 0.89 | 15.58 | 60.78 | 6.71 | 343.80 | 0.4052 | -784.0 | -619.7 | |
| 1.99 | 3.55 | 1.06 | 1.89 | 14.13 | 53.42 | -0.65 | 1.72 | 0.3665 | -923.3 | -778.2 | |
| 0.00 | 1.30 | 0.00 | 0.70 | 15.45 | 53.17 | -0.90 | 2.24 | 0.3880 | -683.0 | -521.9 | |
| 1.38 | 3.98 | 0.73 | 2.11 | 13.24 | 52.32 | -1.75 | 4.84 | 0.3530 | -1023.6 | -835.4 | |
| 0.00 | 2.42 | 0.00 | 1.29 | 14.14 | 51.89 | -2.18 | 5.78 | 0.3682 | -636.0 | -551.2 | |
| 0.00 | 2.68 | 0.00 | 1.43 | 13.91 | 51.80 | -2.27 | 6.08 | 0.3647 | -718.0 | -598.6 | |
| 0.78 | 132.23 | 0.41 | 70.29 | 13.37 | 51.59 | -2.48 | 6.82 | 0.3563 | -1063.9 | -300.3 | |
| 0.00 | 7.70 | 0.00 | 4.05 | 12.33 | 51.54 | -2.53 | 7.34 | 0.3394 | -583.0 | -665.8 | |
| 1.90 | -7.00 | 1.02 | -7.00 | 14.49 | 51.42 | -2.65 | 6.88 | 0.3748 | -813.0 | 999999 | |
| 0.43 | 1.73 | 0.23 | 0.91 | 11.98 | 51.42 | -2.65 | 7.82 | 0.3340 | -886.8 | -742.3 | |
| 36.93 | -7.00 | 19.63 | -7.00 | 13.85 | 51.25 | -2.82 | 7.56 | 0.3648 | -1017.8 | 999999 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 13.13 | 50.58 | -3.49 | 9.66 | 0.3547 | 662.0 | 417.0 | |
| 1.73 | -7.00 | 0.92 | -7.00 | 14.02 | 50.32 | -3.75 | 9.91 | 0.3698 | -654.2 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.42 | 12.84 | 50.28 | -3.79 | 10.63 | 0.3510 | 636.0 | 560.7 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 12.62 | 50.25 | -3.82 | 10.82 | 0.3475 | 779.0 | 567.0 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 14.66 | 50.16 | -3.91 | 10.03 | 0.3805 | 575.0 | 417.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 13.99 | 49.96 | -4.11 | 10.88 | 0.3704 | -701.0 | -539.6 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 12.82 | 49.97 | -4.09 | 11.48 | 0.3515 | 786.0 | 740.8 | |
| 0.00 | 1.47 | 0.00 | 0.78 | 13.26 | 49.91 | -4.16 | 11.41 | 0.3589 | 876.0 | 758.5 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 14.19 | 49.86 | -4.21 | 11.02 | 0.3738 | -495.0 | -368.5 | |
| 3.11 | 5.97 | 1.65 | 3.17 | 13.27 | 49.38 | -4.68 | 12.79 | 0.3607 | 985.6 | 766.7 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 12.95 | 49.36 | -4.71 | 13.05 | 0.3558 | 947.0 | 752.1 | |
| 0.00 | 2.08 | 0.00 | 1.11 | 14.90 | 48.95 | -5.12 | 12.89 | 0.3882 | 881.0 | 642.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 13.08 | 48.93 | -5.14 | 14.11 | 0.3595 | 1082.0 | 900.1 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 13.15 | 48.71 | -5.36 | 14.63 | 0.3614 | 770.0 | 667.7 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 13.63 | 48.58 | -5.49 | 14.64 | 0.3695 | 827.0 | 564.7 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 11.95 | 48.58 | -5.49 | 15.89 | 0.3430 | 935.0 | 707.0 | |
| 0.00 | 2.68 | 0.00 | 1.41 | 11.76 | 48.31 | -5.76 | 16.79 | 0.3413 | 846.0 | 711.4 | |
| 1.99 | 3.81 | 1.06 | 2.03 | 13.66 | 48.24 | -5.83 | 15.47 | 0.3715 | 898.5 | 735.8 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 14.92 | 47.68 | -6.39 | 15.92 | 0.3935 | 694.0 | 511.5 | |
| 0.00 | 2.42 | 0.00 | 1.30 | 14.60 | 47.60 | -6.47 | 16.35 | 0.3889 | 807.0 | 680.2 | |
| 0.00 | 1.82 | 0.00 | 0.98 | 15.61 | 47.01 | -7.06 | 16.98 | 0.4071 | 880.0 | 616.4 | |
| 3.72 | 13.58 | 1.99 | 7.28 | 14.01 | 46.84 | -7.22 | 18.64 | 0.3834 | 1104.7 | 812.4 | |
| 0.00 | 0.95 | 0.00 | 0.51 | 13.56 | 46.67 | -7.40 | 19.45 | 0.3776 | 944.0 | 753.8 | |
| 0.95 | 5.28 | 0.51 | 2.84 | 14.62 | 46.61 | -7.46 | 18.68 | 0.3940 | 1020.1 | 778.7 | |
| 0.00 | 7.18 | 0.00 | 3.88 | 15.07 | 46.41 | -7.66 | 18.77 | 0.4019 | 696.0 | 756.4 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.27 | 46.40 | -7.67 | 19.46 | 0.3898 | 702.0 | 591.3 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 14.08 | 46.32 | -7.75 | 19.83 | 0.3873 | 767.0 | 672.9 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.21 | 46.28 | -7.79 | 21.74 | 0.3592 | 846.0 | 653.2 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 14.60 | 46.02 | -8.05 | 20.06 | 0.3968 | 709.0 | 612.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
