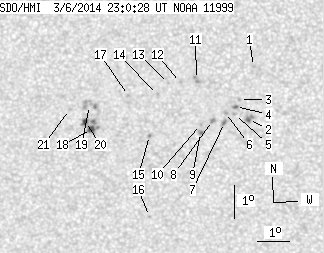

SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.57 | 56.72 | 3.35 | 28.89 | -16.65 | 44.65 | -9.42 | 137.04 | 0.2299 | 389.3 | 44.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-06 23:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.95 | 0.00 | 0.48 | -15.24 | 47.85 | -6.21 | 143.19 | 0.1751 | 808.0 | 650.5 | |
| 0.95 | 4.76 | 0.48 | 2.40 | -16.83 | 47.65 | -6.42 | 147.35 | 0.1994 | 1125.8 | 916.1 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.23 | 47.39 | -6.68 | 144.51 | 0.1933 | 905.0 | 698.7 | |
| 0.52 | 2.25 | 0.26 | 1.14 | -16.44 | 47.25 | -6.81 | 144.63 | 0.1975 | 1036.2 | 860.4 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.68 | 47.21 | -6.86 | 145.20 | 0.2012 | 850.0 | 616.9 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -16.61 | 46.93 | -7.13 | 143.94 | 0.2031 | 876.0 | 784.1 | |
| 0.00 | 2.85 | 0.00 | 1.44 | -16.91 | 46.89 | -7.18 | 144.67 | 0.2076 | 1125.0 | 906.1 | |
| 0.00 | 2.51 | 0.00 | 1.27 | -16.85 | 46.52 | -7.55 | 143.11 | 0.2105 | 1154.0 | 877.2 | |
| 0.00 | 2.34 | 0.00 | 1.19 | -17.20 | 46.13 | -7.94 | 142.79 | 0.2192 | 843.0 | 761.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -16.96 | 46.14 | -7.93 | 142.12 | 0.2159 | 790.0 | 686.1 | |
| 0.00 | 2.94 | 0.00 | 1.49 | -15.60 | 46.07 | -8.00 | 137.51 | 0.1993 | 926.0 | 851.5 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -15.69 | 45.57 | -8.50 | 136.09 | 0.2062 | 837.0 | 666.0 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -15.71 | 45.19 | -8.88 | 134.96 | 0.2109 | 614.0 | 404.2 | |
| 0.00 | 1.12 | 0.00 | 0.57 | -16.03 | 44.83 | -9.24 | 134.96 | 0.2190 | 736.0 | 534.4 | |
| 0.00 | 1.38 | 0.00 | 0.71 | -17.26 | 44.52 | -9.55 | 137.89 | 0.2374 | -737.0 | -597.8 | |
| 0.00 | 0.95 | 0.00 | 0.49 | -19.72 | 44.37 | -9.69 | 143.90 | 0.2702 | 635.0 | 524.4 | |
| 0.00 | 1.47 | 0.00 | 0.75 | -16.04 | 43.92 | -10.15 | 132.39 | 0.2303 | -913.0 | -682.1 | |
| 3.11 | 16.35 | 1.59 | 8.37 | -17.04 | 42.70 | -11.37 | 132.40 | 0.2565 | -944.8 | -772.3 | |
| 0.00 | 8.73 | 0.00 | 4.47 | -16.31 | 42.68 | -11.39 | 130.12 | 0.2490 | -602.0 | -776.1 | |
| 1.99 | -18.00 | 1.02 | -18.00 | -16.79 | 42.52 | -11.55 | 131.24 | 0.2561 | -1014.3 | 999999 | |
| 0.00 | 1.12 | 0.00 | 0.58 | -16.42 | 42.04 | -12.03 | 128.98 | 0.2584 | -582.0 | -539.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
