SDO HMI 2014-03-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 33.58 | 234.47 | 20.89 | 146.91 | -25.73 | 87.32 | 34.35 | 236.15 | 0.6132 | -172.4 | -247.6 | |
|
previous
or next observation for the same group /

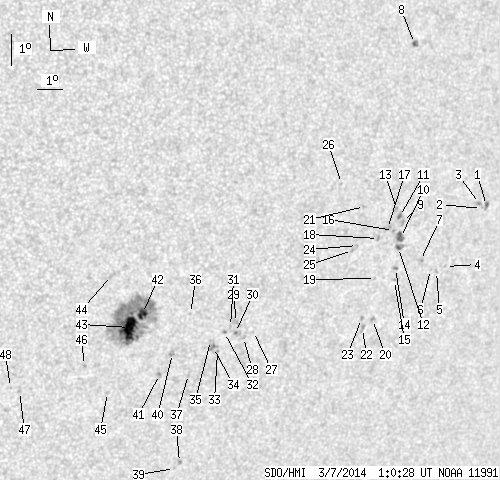

back to the solar disc SDO HMI 2014-03-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.94 | 0.00 | 2.08 | -21.75 | 97.76 | 44.79 | 246.53 | 0.7158 | 625.0 | 524.7 | |
| 0.00 | 0.26 | 0.00 | 0.18 | -21.86 | 97.58 | 44.61 | 246.33 | 0.7140 | 509.0 | 531.3 | |
| 0.00 | 2.25 | 0.00 | 1.58 | -21.71 | 97.43 | 44.46 | 246.49 | 0.7120 | 831.0 | 706.0 | |
| 0.00 | 0.95 | 0.00 | 0.67 | -23.74 | 96.73 | 43.76 | 243.48 | 0.7098 | 461.0 | 350.0 | |
| 0.00 | 1.21 | 0.00 | 0.85 | -23.93 | 96.40 | 43.43 | 243.12 | 0.7068 | 551.0 | 464.7 | |
| 0.00 | 0.52 | 0.00 | 0.36 | -23.89 | 96.11 | 43.14 | 243.09 | 0.7035 | 320.0 | 390.8 | |
| 0.00 | 1.90 | 0.00 | 1.31 | -23.65 | 95.57 | 42.60 | 243.24 | 0.6968 | 172.0 | 256.3 | |
| 1.04 | 3.46 | 0.68 | 2.25 | -17.13 | 93.18 | 40.21 | 252.05 | 0.6508 | -738.4 | -612.6 | |
| 0.00 | 2.34 | 0.00 | 1.57 | -22.56 | 94.36 | 41.39 | 244.37 | 0.6796 | 544.0 | 470.2 | |
| 3.55 | 6.23 | 2.39 | 4.21 | -23.02 | 94.45 | 41.48 | 243.74 | 0.6821 | 649.5 | 496.0 | |
| 0.61 | 3.03 | 0.41 | 2.03 | -22.38 | 94.17 | 41.20 | 244.55 | 0.6768 | 695.3 | 534.0 | |
| 1.38 | 4.24 | 0.94 | 2.87 | -23.33 | 94.48 | 41.51 | 243.31 | 0.6835 | 587.5 | 367.0 | |
| 0.00 | 1.82 | 0.00 | 1.21 | -22.15 | 93.96 | 40.99 | 244.82 | 0.6737 | 590.0 | 486.2 | |
| 0.00 | 1.56 | 0.00 | 1.06 | -23.98 | 94.60 | 41.63 | 242.44 | 0.6870 | 632.0 | 474.2 | |
| 0.00 | 0.95 | 0.00 | 0.65 | -24.35 | 94.71 | 41.74 | 241.96 | 0.6895 | 523.0 | 352.3 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -22.83 | 94.08 | 41.11 | 243.88 | 0.6772 | 657.0 | 646.4 | |
| 0.00 | 3.03 | 0.00 | 2.02 | -22.79 | 93.80 | 40.83 | 243.85 | 0.6739 | 739.0 | 680.7 | |
| 0.00 | 1.64 | 0.00 | 1.10 | -23.12 | 93.54 | 40.57 | 243.27 | 0.6720 | 795.0 | 614.8 | |
| 0.00 | 0.61 | 0.00 | 0.41 | -24.35 | 93.88 | 40.91 | 241.64 | 0.6803 | 593.0 | 516.9 | |
| 0.00 | 2.25 | 0.00 | 1.53 | -25.62 | 94.26 | 41.29 | 240.02 | 0.6893 | 645.0 | 541.8 | |
| 0.00 | 1.47 | 0.00 | 0.96 | -22.19 | 92.62 | 39.65 | 244.28 | 0.6581 | 611.0 | 513.8 | |
| 0.00 | 2.94 | 0.00 | 2.00 | -25.93 | 93.95 | 40.98 | 239.46 | 0.6872 | 736.0 | 581.3 | |
| 0.00 | 1.47 | 0.00 | 1.00 | -25.63 | 93.78 | 40.81 | 239.81 | 0.6841 | 676.0 | 580.2 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -23.40 | 92.75 | 39.78 | 242.57 | 0.6639 | 694.0 | 570.4 | |
| 0.00 | 0.52 | 0.00 | 0.34 | -23.57 | 92.60 | 39.63 | 242.26 | 0.6628 | 664.0 | 602.7 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -21.56 | 91.46 | 38.50 | 244.79 | 0.6422 | 457.0 | 406.5 | |
| 0.00 | 0.95 | 0.00 | 0.61 | -26.36 | 89.48 | 36.51 | 236.76 | 0.6397 | -306.0 | -262.8 | |
| 0.00 | 1.82 | 0.00 | 1.16 | -26.57 | 89.14 | 36.17 | 236.27 | 0.6371 | -436.0 | -410.3 | |
| 0.00 | 4.93 | 0.00 | 3.14 | -26.13 | 88.69 | 35.72 | 236.67 | 0.6297 | -719.0 | -531.5 | |
| 0.35 | 3.55 | 0.22 | 2.27 | -26.44 | 88.76 | 35.80 | 236.25 | 0.6321 | -767.8 | -584.9 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -26.27 | 88.50 | 35.53 | 236.36 | 0.6282 | -633.0 | -495.1 | |
| 0.00 | 1.21 | 0.00 | 0.77 | -26.47 | 88.33 | 35.36 | 235.96 | 0.6274 | -744.0 | -659.4 | |
| 0.00 | 0.87 | 0.00 | 0.55 | -27.08 | 88.26 | 35.29 | 235.03 | 0.6300 | -515.0 | -441.0 | |
| 0.00 | 4.41 | 0.00 | 2.80 | -26.97 | 88.05 | 35.08 | 235.08 | 0.6271 | -796.0 | -680.1 | |
| 0.00 | 1.04 | 0.00 | 0.66 | -26.76 | 87.86 | 34.89 | 235.27 | 0.6237 | -634.0 | -559.8 | |
| 0.00 | 0.78 | 0.00 | 0.48 | -25.97 | 86.78 | 33.81 | 235.80 | 0.6071 | -467.0 | -367.0 | |
| 0.00 | 2.08 | 0.00 | 1.31 | -27.88 | 87.36 | 34.39 | 233.33 | 0.6247 | 105.0 | 152.2 | |
| 0.00 | 1.56 | 0.00 | 1.01 | -30.69 | 88.08 | 35.11 | 229.84 | 0.6495 | -725.0 | -608.8 | |
| 0.00 | 0.78 | 0.00 | 0.51 | -30.90 | 87.95 | 34.98 | 229.48 | 0.6495 | -489.0 | -383.2 | |
| 0.00 | 3.11 | 0.00 | 1.94 | -27.26 | 86.49 | 33.52 | 233.69 | 0.6115 | -625.0 | -528.4 | |
| 0.00 | 1.73 | 0.00 | 1.08 | -27.96 | 86.21 | 33.24 | 232.49 | 0.6126 | -649.0 | -453.9 | |
| 6.49 | 146.81 | 3.96 | 89.43 | -26.09 | 84.93 | 31.96 | 234.43 | 0.5866 | -869.4 | -458.9 | |
| 20.16 | -42.00 | 12.29 | -42.00 | -26.56 | 84.56 | 31.59 | 233.46 | 0.5854 | -986.5 | 999999 | |
| 0.00 | 2.77 | 0.00 | 1.66 | -24.98 | 83.41 | 30.44 | 235.12 | 0.5620 | -168.0 | -283.8 | |
| 0.00 | 1.64 | 0.00 | 1.01 | -28.65 | 84.36 | 31.39 | 230.19 | 0.5973 | -552.0 | -463.4 | |
| 0.00 | 1.47 | 0.00 | 0.89 | -27.85 | 83.20 | 30.23 | 230.51 | 0.5791 | -670.0 | -551.9 | |
| 0.00 | 1.21 | 0.00 | 0.72 | -28.81 | 80.97 | 28.00 | 227.25 | 0.5624 | -525.0 | -452.2 | |
| 0.00 | 0.69 | 0.00 | 0.41 | -28.71 | 80.59 | 27.62 | 227.08 | 0.5576 | -568.0 | -527.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
