SDO HMI 2014-03-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.16 | 251.47 | 29.84 | 133.58 | 13.74 | 50.45 | -2.52 | 6.70 | 0.3635 | -238.1 | -25.8 | |
|
previous
or next observation for the same group /

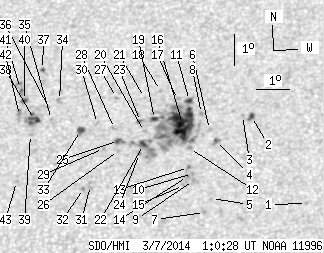

back to the solar disc SDO HMI 2014-03-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.56 | 0.00 | 0.81 | 11.31 | 55.15 | 2.18 | 353.32 | 0.3220 | -711.0 | -476.9 | |
| 1.56 | 3.63 | 0.83 | 1.93 | 14.06 | 53.49 | 0.52 | 358.62 | 0.3653 | -901.7 | -778.8 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 14.09 | 53.21 | 0.24 | 359.35 | 0.3658 | -678.0 | -636.1 | |
| 0.52 | 3.89 | 0.27 | 2.06 | 13.30 | 52.39 | -0.58 | 1.62 | 0.3529 | -1046.3 | -815.0 | |
| 0.00 | 0.61 | 0.00 | 0.32 | 11.47 | 52.27 | -0.70 | 2.15 | 0.3227 | -687.0 | -523.4 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 13.65 | 52.20 | -0.77 | 2.09 | 0.3587 | -743.0 | -625.0 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 11.03 | 52.05 | -0.92 | 2.86 | 0.3156 | -861.0 | -653.8 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 14.16 | 51.95 | -1.01 | 2.69 | 0.3672 | -703.0 | -559.5 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 12.03 | 51.72 | -1.25 | 3.70 | 0.3326 | -908.0 | -758.1 | |
| 0.00 | 1.04 | 0.00 | 0.55 | 12.26 | 51.69 | -1.28 | 3.75 | 0.3363 | -799.0 | -694.5 | |
| 1.99 | 136.95 | 1.06 | 72.71 | 14.58 | 51.58 | -1.39 | 3.60 | 0.3744 | -755.5 | -328.9 | |
| 0.00 | 2.25 | 0.00 | 1.19 | 13.05 | 51.59 | -1.38 | 3.86 | 0.3494 | -585.0 | -428.2 | |
| 0.00 | 1.99 | 0.00 | 1.05 | 12.45 | 51.56 | -1.41 | 4.06 | 0.3395 | -869.0 | -716.5 | |
| 0.00 | 1.30 | 0.00 | 0.68 | 12.16 | 51.53 | -1.43 | 4.21 | 0.3349 | -875.0 | -821.3 | |
| 0.00 | 1.38 | 0.00 | 0.73 | 11.88 | 51.41 | -1.56 | 4.63 | 0.3304 | -738.0 | -647.1 | |
| 38.50 | -11.00 | 20.45 | -11.00 | 13.84 | 51.37 | -1.60 | 4.29 | 0.3627 | -993.4 | 999999 | |
| 0.00 | 2.85 | 0.00 | 1.52 | 14.61 | 51.22 | -1.75 | 4.55 | 0.3753 | -120.0 | -209.7 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 14.90 | 50.69 | -2.28 | 5.82 | 0.3808 | 634.0 | 507.0 | |
| 2.08 | -11.00 | 1.10 | -11.00 | 14.01 | 50.51 | -2.46 | 6.54 | 0.3666 | -672.6 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 13.60 | 50.21 | -2.76 | 7.49 | 0.3606 | -601.0 | -475.2 | |
| 0.00 | 1.04 | 0.00 | 0.56 | 14.68 | 50.20 | -2.77 | 7.13 | 0.3781 | 546.0 | 333.9 | |
| 2.34 | 22.23 | 1.24 | 11.76 | 13.18 | 50.19 | -2.78 | 7.71 | 0.3539 | 883.7 | 480.2 | |
| 0.00 | 2.60 | 0.00 | 1.38 | 13.92 | 50.09 | -2.88 | 7.70 | 0.3660 | -670.0 | -585.6 | |
| 0.00 | 1.12 | 0.00 | 0.59 | 12.90 | 50.07 | -2.90 | 8.16 | 0.3496 | 887.0 | 792.2 | |
| 1.30 | 4.76 | 0.69 | 2.52 | 13.32 | 49.42 | -3.55 | 9.74 | 0.3580 | 976.1 | 804.1 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 13.00 | 49.42 | -3.55 | 9.88 | 0.3528 | 933.0 | 731.2 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 14.69 | 49.34 | -3.63 | 9.32 | 0.3802 | 569.0 | 402.3 | |
| 0.00 | 2.25 | 0.00 | 1.20 | 13.70 | 49.29 | -3.68 | 9.89 | 0.3645 | 687.0 | 503.2 | |
| 0.00 | 0.69 | 0.00 | 0.37 | 13.07 | 48.96 | -4.01 | 11.09 | 0.3553 | 857.0 | 736.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 13.86 | 48.77 | -4.20 | 11.18 | 0.3687 | 769.0 | 583.0 | |
| 0.00 | 3.11 | 0.00 | 1.64 | 11.90 | 48.58 | -4.39 | 12.85 | 0.3378 | 569.0 | 626.6 | |
| 0.00 | 1.47 | 0.00 | 0.77 | 11.81 | 48.37 | -4.60 | 13.52 | 0.3372 | 974.0 | 793.5 | |
| 2.34 | 4.93 | 1.24 | 2.62 | 13.65 | 48.25 | -4.72 | 12.65 | 0.3670 | 922.7 | 714.1 | |
| 0.00 | 2.68 | 0.00 | 1.44 | 14.62 | 47.58 | -5.39 | 13.72 | 0.3847 | 645.0 | 600.9 | |
| 0.00 | 1.12 | 0.00 | 0.60 | 14.01 | 47.35 | -5.62 | 14.70 | 0.3761 | 809.0 | 636.2 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 14.43 | 47.25 | -5.72 | 14.67 | 0.3831 | 758.0 | 618.9 | |
| 0.52 | 1.56 | 0.28 | 0.84 | 15.62 | 47.03 | -5.94 | 14.40 | 0.4025 | 694.2 | 576.8 | |
| 3.63 | 12.02 | 1.94 | 6.43 | 14.02 | 46.82 | -6.15 | 16.00 | 0.3785 | 1054.1 | 883.6 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 13.54 | 46.71 | -6.26 | 16.64 | 0.3716 | 886.0 | 620.3 | |
| 1.38 | 2.68 | 0.74 | 1.44 | 14.63 | 46.50 | -6.47 | 16.33 | 0.3894 | 1002.2 | 824.7 | |
| 0.00 | 5.80 | 0.00 | 3.12 | 15.02 | 46.36 | -6.61 | 16.37 | 0.3960 | 759.0 | 749.6 | |
| 0.00 | 5.10 | 0.00 | 2.73 | 14.15 | 46.36 | -6.61 | 17.04 | 0.3827 | 687.0 | 623.9 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 12.06 | 46.32 | -6.65 | 18.94 | 0.3505 | 724.0 | 484.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
