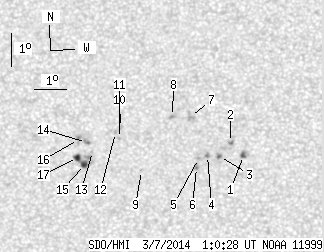

SDO HMI 2014-03-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.86 | 48.11 | 4.01 | 24.41 | -16.56 | 44.44 | -8.52 | 139.53 | 0.2186 | -18.8 | -59.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 01:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.38 | 4.59 | 0.70 | 2.31 | -16.83 | 47.70 | -5.27 | 152.20 | 0.1893 | 1092.9 | 854.2 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -16.43 | 47.31 | -5.66 | 149.39 | 0.1867 | 1052.0 | 950.5 | |
| 0.69 | 1.56 | 0.35 | 0.79 | -16.85 | 46.95 | -6.02 | 149.03 | 0.1959 | 1117.9 | 911.1 | |
| 0.00 | 2.08 | 0.00 | 1.05 | -16.81 | 46.58 | -6.39 | 147.40 | 0.1987 | 1117.0 | 876.7 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.90 | 46.29 | -6.68 | 146.52 | 0.2026 | 898.0 | 663.4 | |
| 0.00 | 2.16 | 0.00 | 1.09 | -17.17 | 46.22 | -6.75 | 147.00 | 0.2071 | 954.0 | 782.1 | |
| 0.00 | 4.67 | 0.00 | 2.36 | -15.63 | 46.09 | -6.88 | 141.76 | 0.1872 | 911.0 | 725.8 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -15.62 | 45.53 | -7.44 | 139.57 | 0.1932 | 862.0 | 681.9 | |
| 0.00 | 1.04 | 0.00 | 0.53 | -17.23 | 44.49 | -8.48 | 141.08 | 0.2252 | -644.0 | -428.7 | |
| 0.00 | 2.25 | 0.00 | 1.14 | -15.92 | 43.89 | -9.08 | 135.07 | 0.2158 | -842.0 | -689.3 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -16.25 | 43.85 | -9.12 | 136.03 | 0.2202 | -739.0 | -632.0 | |
| 0.00 | 1.38 | 0.00 | 0.70 | -16.07 | 43.73 | -9.24 | 135.07 | 0.2195 | -894.0 | -670.9 | |
| 0.00 | 0.78 | 0.00 | 0.40 | -16.62 | 42.98 | -9.99 | 134.70 | 0.2349 | -663.0 | -506.8 | |
| 0.00 | 2.94 | 0.00 | 1.50 | -16.35 | 42.80 | -10.16 | 133.34 | 0.2339 | -984.0 | -858.7 | |
| 2.94 | 16.18 | 1.50 | 8.25 | -17.01 | 42.71 | -10.26 | 135.14 | 0.2427 | -947.8 | -758.6 | |
| 0.00 | 2.77 | 0.00 | 1.41 | -16.25 | 42.56 | -10.41 | 132.37 | 0.2359 | -912.0 | -760.6 | |
| 2.85 | -15.00 | 1.46 | -15.00 | -16.79 | 42.50 | -10.47 | 133.92 | 0.2427 | -895.6 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
