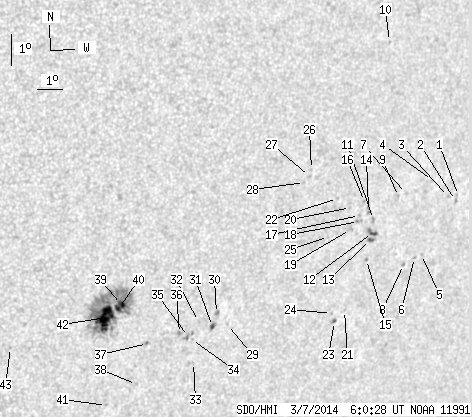

SDO HMI 2014-03-07 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.62 | 189.00 | 23.33 | 121.93 | -25.67 | 87.11 | 36.88 | 237.63 | 0.6414 | -207.7 | -227.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 06:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.32 | -21.65 | 97.88 | 47.64 | 247.33 | 0.7467 | 361.0 | 428.2 | |
| 0.00 | 1.21 | 0.00 | 0.90 | -21.81 | 97.81 | 47.57 | 247.10 | 0.7463 | 559.0 | 507.4 | |
| 0.00 | 1.30 | 0.00 | 0.96 | -21.72 | 97.43 | 47.20 | 247.14 | 0.7421 | 616.0 | 549.6 | |
| 0.00 | 1.56 | 0.00 | 1.13 | -21.30 | 96.51 | 46.28 | 247.49 | 0.7312 | 564.0 | 410.4 | |
| 0.00 | 0.69 | 0.00 | 0.51 | -23.58 | 96.98 | 46.75 | 244.56 | 0.7416 | 427.0 | 414.0 | |
| 0.00 | 1.04 | 0.00 | 0.76 | -23.70 | 96.71 | 46.47 | 244.33 | 0.7390 | 496.0 | 455.8 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -21.79 | 95.51 | 45.28 | 246.58 | 0.7213 | 222.0 | 139.9 | |
| 0.00 | 1.47 | 0.00 | 1.07 | -23.95 | 96.31 | 46.07 | 243.88 | 0.7354 | 520.0 | 424.1 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -21.91 | 95.19 | 44.96 | 246.33 | 0.7181 | -375.0 | -398.9 | |
| 0.00 | 0.52 | 0.00 | 0.35 | -17.30 | 93.21 | 42.98 | 252.38 | 0.6853 | -464.0 | -487.3 | |
| 0.00 | 1.82 | 0.00 | 1.28 | -22.70 | 94.38 | 44.15 | 245.03 | 0.7112 | 593.0 | 509.3 | |
| 2.25 | 4.50 | 1.59 | 3.17 | -23.10 | 94.50 | 44.27 | 244.51 | 0.7136 | 709.9 | 557.4 | |
| 1.30 | 2.68 | 0.92 | 1.89 | -23.32 | 94.50 | 44.27 | 244.21 | 0.7142 | 543.3 | 372.7 | |
| 0.00 | 3.03 | 0.00 | 2.11 | -22.42 | 94.04 | 43.81 | 245.32 | 0.7066 | 659.0 | 595.2 | |
| 0.00 | 1.04 | 0.00 | 0.74 | -23.94 | 94.58 | 44.35 | 243.39 | 0.7169 | 408.0 | 408.3 | |
| 0.00 | 1.04 | 0.00 | 0.72 | -22.19 | 93.77 | 43.54 | 245.56 | 0.7030 | 684.0 | 593.9 | |
| 0.00 | 1.13 | 0.00 | 0.78 | -22.63 | 93.72 | 43.49 | 244.93 | 0.7037 | 696.0 | 512.2 | |
| 0.00 | 2.16 | 0.00 | 1.51 | -22.82 | 93.75 | 43.52 | 244.68 | 0.7045 | 786.0 | 638.2 | |
| 0.00 | 2.94 | 0.00 | 2.04 | -23.09 | 93.50 | 43.27 | 244.23 | 0.7025 | 629.0 | 460.7 | |
| 0.00 | 0.61 | 0.00 | 0.42 | -22.42 | 93.24 | 43.01 | 245.08 | 0.6976 | 524.0 | 499.7 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -25.58 | 94.31 | 44.08 | 241.09 | 0.7191 | 457.0 | 411.3 | |
| 0.00 | 1.04 | 0.00 | 0.71 | -22.19 | 92.58 | 42.35 | 245.19 | 0.6895 | 702.0 | 599.9 | |
| 0.61 | 1.90 | 0.43 | 1.35 | -25.96 | 94.02 | 43.79 | 240.48 | 0.7174 | 790.7 | 648.6 | |
| 0.00 | 0.87 | 0.00 | 0.61 | -25.72 | 93.78 | 43.55 | 240.71 | 0.7140 | 708.0 | 622.0 | |
| 0.00 | 0.35 | 0.00 | 0.24 | -23.38 | 92.64 | 42.41 | 243.55 | 0.6938 | 744.0 | 686.8 | |
| 0.00 | 1.04 | 0.00 | 0.69 | -21.40 | 91.18 | 40.95 | 245.88 | 0.6709 | 523.0 | 418.8 | |
| 0.00 | 1.64 | 0.00 | 1.10 | -21.62 | 91.17 | 40.94 | 245.56 | 0.6715 | 447.0 | 363.9 | |
| 0.00 | 0.87 | 0.00 | 0.58 | -21.82 | 91.03 | 40.80 | 245.23 | 0.6704 | 601.0 | 534.8 | |
| 0.00 | 0.69 | 0.00 | 0.46 | -26.41 | 89.47 | 39.24 | 238.02 | 0.6702 | -422.0 | -374.0 | |
| 0.00 | 2.60 | 0.00 | 1.71 | -26.11 | 88.88 | 38.64 | 238.18 | 0.6623 | -730.0 | -586.8 | |
| 1.21 | 2.60 | 0.80 | 1.72 | -26.52 | 88.87 | 38.64 | 237.59 | 0.6641 | -739.4 | -567.2 | |
| 0.00 | 1.04 | 0.00 | 0.68 | -26.41 | 88.23 | 38.00 | 237.44 | 0.6565 | -194.0 | -234.0 | |
| 0.00 | 0.26 | 0.00 | 0.17 | -27.70 | 88.54 | 38.30 | 235.77 | 0.6661 | -512.0 | -430.7 | |
| 0.00 | 0.87 | 0.00 | 0.57 | -26.99 | 88.16 | 37.93 | 236.58 | 0.6586 | -373.0 | -433.7 | |
| 0.00 | 3.98 | 0.00 | 2.61 | -26.90 | 88.00 | 37.77 | 236.62 | 0.6564 | -694.0 | -616.1 | |
| 0.00 | 1.47 | 0.00 | 0.96 | -26.84 | 87.60 | 37.36 | 236.51 | 0.6516 | -808.0 | -687.9 | |
| 0.00 | 1.04 | 0.00 | 0.67 | -27.24 | 86.41 | 36.18 | 235.30 | 0.6407 | -707.0 | -492.8 | |
| 0.00 | 0.87 | 0.00 | 0.56 | -28.56 | 86.46 | 36.23 | 233.45 | 0.6485 | -714.0 | -551.8 | |
| 3.98 | 132.10 | 2.50 | 82.75 | -26.10 | 84.94 | 34.70 | 236.13 | 0.6181 | -938.7 | -448.5 | |
| 2.77 | -39.00 | 1.74 | -39.00 | -26.23 | 84.86 | 34.63 | 235.89 | 0.6179 | -886.8 | 999999 | |
| 0.00 | 1.13 | 0.00 | 0.73 | -29.31 | 85.50 | 35.27 | 231.84 | 0.6427 | -668.0 | -466.2 | |
| 24.50 | -39.00 | 15.35 | -39.00 | -26.54 | 84.44 | 34.21 | 235.18 | 0.6150 | -1070.6 | 999999 | |
| 0.00 | 0.52 | 0.00 | 0.32 | -27.72 | 81.05 | 30.82 | 231.14 | 0.5846 | -638.0 | -571.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
