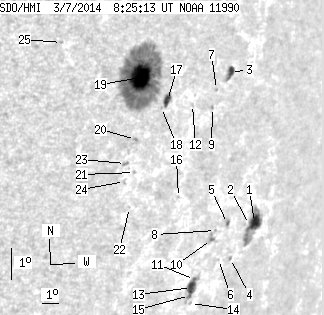

SDO HMI 2014-03-07 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.16 | 286.27 | 67.46 | 280.15 | -13.34 | 109.23 | 60.32 | 258.79 | 0.8623 | 380.2 | 250.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.86 | 32.47 | 14.69 | 40.07 | -15.70 | 116.36 | 67.45 | 255.99 | 0.9180 | 577.4 | 420.2 | |
| 0.00 | 0.61 | 0.00 | 0.74 | -15.80 | 116.02 | 67.11 | 255.89 | 0.9158 | 607.0 | 656.3 | |
| 5.11 | 8.57 | 5.51 | 9.23 | -11.57 | 112.37 | 63.46 | 260.69 | 0.8900 | 535.1 | 375.7 | |
| 0.00 | 1.13 | 0.00 | 1.34 | -16.93 | 115.29 | 66.38 | 254.66 | 0.9107 | 330.0 | 333.5 | |
| 0.87 | 1.65 | 1.00 | 1.89 | -15.95 | 114.41 | 65.49 | 255.74 | 0.9045 | 43.4 | 8.6 | |
| 0.00 | 0.69 | 0.00 | 0.80 | -17.06 | 114.45 | 65.54 | 254.52 | 0.9048 | -103.0 | -61.0 | |
| 0.00 | 0.87 | 0.00 | 0.91 | -12.16 | 111.67 | 62.75 | 260.05 | 0.8843 | -225.0 | -154.0 | |
| 0.00 | 0.78 | 0.00 | 0.88 | -16.24 | 113.70 | 64.79 | 255.42 | 0.8993 | -282.0 | -235.9 | |
| 0.00 | 1.13 | 0.00 | 1.18 | -12.71 | 111.63 | 62.72 | 259.42 | 0.8839 | -330.0 | -235.2 | |
| 0.87 | 3.72 | 0.97 | 4.16 | -16.53 | 113.59 | 64.67 | 255.10 | 0.8985 | -356.0 | -237.2 | |
| 0.52 | 13.94 | 0.57 | 15.39 | -17.82 | 113.18 | 64.26 | 253.66 | 0.8956 | -257.5 | -183.3 | |
| 0.00 | 1.04 | 0.00 | 1.05 | -12.76 | 110.34 | 61.43 | 259.40 | 0.8734 | -295.0 | -271.3 | |
| 6.93 | -11.00 | 7.63 | -11.00 | -18.07 | 113.13 | 64.22 | 253.38 | 0.8952 | -467.2 | 999999 | |
| 0.00 | 0.87 | 0.00 | 0.96 | -18.54 | 113.38 | 64.47 | 252.86 | 0.8972 | -232.0 | -180.0 | |
| 0.69 | -11.00 | 0.76 | -11.00 | -18.32 | 113.15 | 64.24 | 253.10 | 0.8954 | -488.1 | 999999 | |
| 0.00 | 1.04 | 0.00 | 1.06 | -15.56 | 110.74 | 61.82 | 256.19 | 0.8764 | -541.0 | -509.3 | |
| 4.94 | 7.88 | 4.76 | 7.60 | -12.81 | 108.79 | 59.87 | 259.38 | 0.8602 | -364.8 | -169.2 | |
| 0.00 | 1.13 | 0.00 | 1.08 | -13.05 | 108.52 | 59.60 | 259.10 | 0.8578 | -349.0 | -327.2 | |
| 34.37 | 201.13 | 31.57 | 184.87 | -12.30 | 106.99 | 58.08 | 260.00 | 0.8442 | 937.4 | 303.9 | |
| 0.00 | 0.87 | 0.00 | 0.80 | -14.14 | 107.40 | 58.48 | 257.82 | 0.8478 | 329.0 | 333.9 | |
| 0.00 | 1.21 | 0.00 | 1.14 | -15.11 | 107.75 | 58.84 | 256.68 | 0.8511 | -284.0 | -229.5 | |
| 0.00 | 0.69 | 0.00 | 0.65 | -16.16 | 107.94 | 59.03 | 255.45 | 0.8529 | -370.0 | -324.6 | |
| 0.00 | 2.08 | 0.00 | 1.91 | -14.90 | 107.13 | 58.21 | 256.92 | 0.8454 | -504.0 | -433.5 | |
| 0.00 | 1.56 | 0.00 | 1.44 | -15.43 | 107.30 | 58.39 | 256.29 | 0.8471 | -490.0 | -434.4 | |
| 0.00 | 1.21 | 0.00 | 1.00 | -11.70 | 102.50 | 53.58 | 260.78 | 0.8005 | -434.0 | -309.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
