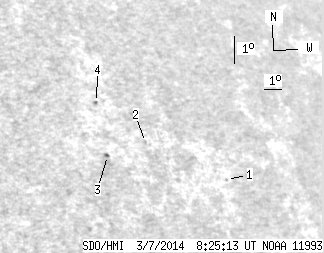

SDO HMI 2014-03-07 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.81 | 0.00 | 3.46 | 16.92 | 101.09 | 52.18 | 295.69 | 0.8399 | 53.0 | 65.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 08:25:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.79 | 16.40 | 105.30 | 56.38 | 293.49 | 0.8730 | -278.0 | -230.2 | |
| 0.00 | 0.95 | 0.00 | 0.87 | 17.16 | 101.27 | 52.35 | 295.84 | 0.8427 | -429.0 | -397.5 | |
| 0.00 | 1.47 | 0.00 | 1.27 | 16.53 | 99.13 | 50.21 | 296.02 | 0.8219 | 448.0 | 411.7 | |
| 0.00 | 0.61 | 0.00 | 0.53 | 18.25 | 99.24 | 50.33 | 297.91 | 0.8294 | 471.0 | 430.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
