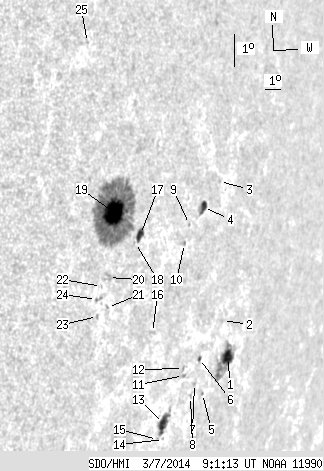

SDO HMI 2014-03-07 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.45 | 294.02 | 67.07 | 292.45 | -13.41 | 109.44 | 60.85 | 258.69 | 0.8667 | 338.9 | 240.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.13 | 36.19 | 12.75 | 45.33 | -15.68 | 116.47 | 67.88 | 256.00 | 0.9209 | 564.6 | 393.5 | |
| 0.00 | 1.30 | 0.00 | 1.57 | -14.66 | 115.40 | 66.81 | 257.14 | 0.9139 | 89.0 | 119.8 | |
| 0.00 | 1.30 | 0.00 | 1.46 | -10.68 | 113.19 | 64.60 | 261.63 | 0.8991 | 133.0 | 216.7 | |
| 4.93 | 7.62 | 5.38 | 8.30 | -11.55 | 112.42 | 63.83 | 260.69 | 0.8929 | 550.2 | 439.4 | |
| 0.00 | 1.04 | 0.00 | 1.25 | -16.92 | 115.31 | 66.72 | 254.66 | 0.9130 | 369.0 | 402.8 | |
| 0.87 | 1.90 | 1.01 | 2.22 | -15.94 | 114.41 | 65.83 | 255.75 | 0.9069 | 34.2 | -11.6 | |
| 0.00 | 1.47 | 0.00 | 1.72 | -16.70 | 114.53 | 65.94 | 254.91 | 0.9077 | 240.0 | 211.2 | |
| 0.00 | 1.56 | 0.00 | 1.82 | -17.10 | 114.50 | 65.91 | 254.46 | 0.9074 | -205.0 | -69.8 | |
| 0.00 | 0.87 | 0.00 | 0.92 | -12.15 | 111.70 | 63.12 | 260.05 | 0.8872 | -183.0 | -129.9 | |
| 0.00 | 1.04 | 0.00 | 1.10 | -12.73 | 111.62 | 63.03 | 259.39 | 0.8864 | -293.0 | -255.8 | |
| 0.00 | 1.30 | 0.00 | 1.47 | -16.55 | 113.60 | 65.02 | 255.07 | 0.9010 | -390.0 | -278.9 | |
| 0.00 | 1.21 | 0.00 | 1.37 | -16.35 | 113.48 | 64.89 | 255.30 | 0.9001 | -279.0 | -261.9 | |
| 9.52 | 15.58 | 10.61 | 17.39 | -18.09 | 113.15 | 64.56 | 253.36 | 0.8978 | -451.7 | -146.3 | |
| 0.00 | 0.43 | 0.00 | 0.49 | -18.55 | 113.47 | 64.88 | 252.85 | 0.9002 | -110.0 | -92.8 | |
| 0.00 | 0.69 | 0.00 | 0.77 | -18.60 | 113.06 | 64.47 | 252.79 | 0.8972 | -431.0 | -329.0 | |
| 0.00 | 2.16 | 0.00 | 2.24 | -15.54 | 110.83 | 62.24 | 256.22 | 0.8798 | -540.0 | -442.2 | |
| 5.28 | 7.36 | 5.14 | 7.16 | -12.77 | 108.78 | 60.20 | 259.42 | 0.8630 | -386.2 | -131.0 | |
| 0.00 | 1.13 | 0.00 | 1.09 | -13.03 | 108.58 | 59.99 | 259.11 | 0.8612 | -493.0 | -321.3 | |
| 34.72 | 199.91 | 32.18 | 185.52 | -12.29 | 106.98 | 58.39 | 260.00 | 0.8471 | 917.8 | 285.6 | |
| 0.00 | 4.42 | 0.00 | 4.14 | -14.22 | 107.43 | 58.84 | 257.73 | 0.8510 | 279.0 | 214.5 | |
| 0.00 | 1.13 | 0.00 | 1.06 | -15.10 | 107.75 | 59.17 | 256.69 | 0.8540 | -309.0 | -271.2 | |
| 0.00 | 0.95 | 0.00 | 0.89 | -14.53 | 107.14 | 58.55 | 257.36 | 0.8485 | -196.0 | -160.2 | |
| 0.00 | 1.56 | 0.00 | 1.46 | -15.43 | 107.30 | 58.71 | 256.30 | 0.8500 | -635.0 | -507.9 | |
| 0.00 | 0.95 | 0.00 | 0.88 | -14.94 | 107.02 | 58.43 | 256.88 | 0.8474 | -582.0 | -500.3 | |
| 0.00 | 0.95 | 0.00 | 0.83 | -7.46 | 104.23 | 55.65 | 265.93 | 0.8228 | -249.0 | -259.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
