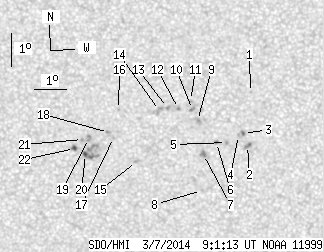

SDO HMI 2014-03-07 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.69 | 55.57 | 1.36 | 27.98 | -16.41 | 44.79 | -3.79 | 159.05 | 0.1749 | 346.7 | 58.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 09:01:13 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.78 | 0.00 | 0.39 | -15.09 | 47.90 | -0.69 | 175.13 | 0.1376 | 868.0 | 634.1 | |
| 0.00 | 3.20 | 0.00 | 1.61 | -16.68 | 47.80 | -0.79 | 175.39 | 0.1653 | 1321.0 | 1041.5 | |
| 0.43 | 2.16 | 0.22 | 1.09 | -16.32 | 47.67 | -0.91 | 174.47 | 0.1592 | 1132.2 | 891.0 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.38 | 47.52 | -1.07 | 173.58 | 0.1606 | 838.0 | 683.6 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -16.59 | 47.15 | -1.44 | 171.56 | 0.1650 | 1022.0 | 876.0 | |
| 0.00 | 1.64 | 0.00 | 0.83 | -16.59 | 46.83 | -1.75 | 169.77 | 0.1658 | 995.0 | 819.5 | |
| 0.00 | 3.46 | 0.00 | 1.74 | -16.95 | 46.43 | -2.16 | 167.93 | 0.1733 | 1084.0 | 900.8 | |
| 0.00 | 0.61 | 0.00 | 0.31 | -18.04 | 46.35 | -2.24 | 168.79 | 0.1919 | 737.0 | 588.1 | |
| 0.00 | 4.50 | 0.00 | 2.26 | -15.92 | 46.25 | -2.33 | 165.46 | 0.1567 | 957.0 | 728.7 | |
| 0.00 | 2.08 | 0.00 | 1.04 | -15.59 | 46.10 | -2.48 | 163.97 | 0.1519 | 1106.0 | 914.9 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -15.32 | 46.04 | -2.54 | 163.08 | 0.1477 | 739.0 | 586.8 | |
| 0.00 | 1.39 | 0.00 | 0.69 | -15.56 | 45.67 | -2.92 | 161.29 | 0.1535 | 1102.0 | 859.3 | |
| 0.00 | 1.64 | 0.00 | 0.82 | -15.53 | 45.33 | -3.26 | 159.22 | 0.1550 | 1065.0 | 845.7 | |
| 0.00 | 4.24 | 0.00 | 2.13 | -15.61 | 45.08 | -3.50 | 158.01 | 0.1580 | 779.0 | 629.2 | |
| 0.00 | 1.56 | 0.00 | 0.79 | -17.14 | 44.33 | -4.25 | 157.64 | 0.1871 | -906.0 | -691.5 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -15.57 | 43.81 | -4.77 | 151.10 | 0.1667 | -876.0 | -696.6 | |
| 0.00 | 0.87 | 0.00 | 0.44 | -16.41 | 43.64 | -4.95 | 152.61 | 0.1808 | -761.0 | -527.1 | |
| 0.00 | 1.90 | 0.00 | 0.96 | -16.26 | 43.49 | -5.10 | 151.49 | 0.1797 | -1140.0 | -870.1 | |
| 0.00 | 2.94 | 0.00 | 1.48 | -16.43 | 42.86 | -5.73 | 149.14 | 0.1876 | -905.0 | -909.9 | |
| 1.13 | 14.46 | 0.57 | 7.30 | -16.91 | 42.75 | -5.84 | 150.00 | 0.1956 | -887.7 | -877.6 | |
| 0.00 | 1.30 | 0.00 | 0.66 | -16.46 | 42.67 | -5.92 | 148.41 | 0.1896 | -899.0 | -720.2 | |
| 1.13 | 2.25 | 0.57 | 1.14 | -16.73 | 42.41 | -6.18 | 148.09 | 0.1958 | -1044.8 | -873.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
