group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11996	34.02	260.99	18.10	138.67	13.62	50.40	2.90	352.03	0.3624	-69.1	-173.6

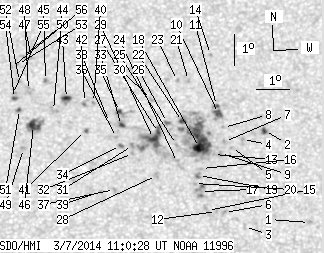

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2014-03-07 11:00:28 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	0.00	1.56	0.00	0.82	10.94	55.09	7.59	337.37	0.3384	-1032.0	-850.2
2	1.56	2.94	0.83	1.57	13.83	53.79	6.29	343.49	0.3758	-947.2	-747.6
3	0.00	1.73	0.00	0.91	10.79	53.10	5.60	342.76	0.3249	-737.0	-647.8
4	0.00	1.38	0.00	0.74	13.53	53.10	5.60	345.00	0.3682	-962.0	-764.0
5	0.00	1.30	0.00	0.69	13.28	52.76	5.26	345.70	0.3627	-1044.0	-849.9
6	0.00	1.90	0.00	1.00	11.22	52.50	5.00	344.87	0.3290	-874.0	-696.4
7	0.00	1.38	0.00	0.74	13.46	52.55	5.05	346.38	0.3649	-880.0	-769.1
8	0.00	1.13	0.00	0.60	13.91	52.53	5.03	346.72	0.3718	-578.0	-530.4
9	0.00	2.42	0.00	1.28	13.08	52.42	4.92	346.47	0.3583	-918.0	-813.0
10	3.12	10.21	1.67	5.46	14.36	52.38	4.88	347.36	0.3784	-959.8	-716.7
11	0.69	-10.00	0.37	-10.00	14.61	52.33	4.83	347.65	0.3822	-705.2	999999
12	0.00	1.30	0.00	0.68	11.25	52.26	4.76	345.59	0.3284	-946.0	-759.5
13	0.00	0.87	0.00	0.46	13.05	52.20	4.70	347.02	0.3570	-747.0	-645.6
14	0.00	1.21	0.00	0.66	16.26	52.18	4.68	348.87	0.4076	-797.0	-642.4
15	0.00	4.67	0.00	2.45	11.28	51.98	4.48	346.41	0.3278	-759.0	-618.9
16	0.00	1.13	0.00	0.59	12.60	51.82	4.32	347.75	0.3485	-805.0	-627.6
17	0.00	7.88	0.00	4.14	11.87	51.78	4.28	347.41	0.3366	-776.0	-845.6
18	7.36	85.70	3.90	45.55	13.27	51.78	4.28	348.28	0.3590	-1287.9	-675.8
19	0.00	3.12	0.00	1.64	12.38	51.73	4.23	347.88	0.3446	-980.0	-785.4
20	0.00	1.04	0.00	0.55	12.13	51.60	4.10	348.08	0.3401	-809.0	-649.1
21	0.00	1.13	0.00	0.61	15.41	51.48	3.98	350.14	0.3922	-856.0	-717.8
22	1.90	-18.00	1.01	-18.00	14.09	51.27	3.77	350.05	0.3706	-790.0	999999
23	0.00	1.73	0.00	0.93	15.41	51.14	3.64	350.96	0.3913	-864.0	-639.0
24	0.00	6.15	0.00	3.25	12.79	51.09	3.59	349.87	0.3491	-281.0	-224.1
25	0.00	1.21	0.00	0.64	13.36	51.07	3.57	350.21	0.3583	-353.0	-130.6
26	0.00	2.68	0.00	1.43	14.06	50.81	3.31	351.23	0.3689	-768.0	-606.9
27	1.30	35.32	0.69	18.72	13.73	50.53	3.03	351.84	0.3630	-881.3	250.0
28	0.00	2.60	0.00	1.37	12.37	50.45	2.95	351.48	0.3407	828.0	737.0
29	4.24	-27.00	2.25	-27.00	13.54	50.37	2.87	352.18	0.3596	-697.4	999999
30	0.00	2.42	0.00	1.30	14.79	50.33	2.83	352.75	0.3796	-698.0	-567.9
31	0.00	2.25	0.00	1.19	13.32	49.72	2.23	353.86	0.3546	970.0	850.0
32	0.00	1.38	0.00	0.73	13.06	49.72	2.22	353.78	0.3505	894.0	709.1
33	1.38	2.86	0.74	1.52	13.95	49.39	1.89	354.93	0.3644	887.4	678.9
34	0.00	2.16	0.00	1.15	13.32	49.36	1.86	354.86	0.3540	1013.0	904.5
35	1.04	6.58	0.55	3.51	14.40	49.34	1.84	355.19	0.3716	795.9	512.9
36	0.00	1.21	0.00	0.64	13.57	49.24	1.74	355.26	0.3580	845.0	708.6
37	0.00	1.82	0.00	0.95	11.92	49.16	1.66	355.05	0.3309	827.0	739.8
38	0.00	1.13	0.00	0.60	14.05	49.03	1.53	355.93	0.3655	675.0	536.9
39	0.00	1.13	0.00	0.59	11.86	48.74	1.24	356.30	0.3293	923.0	747.2
40	0.00	1.04	0.00	0.55	14.69	48.54	1.04	357.31	0.3754	-690.0	-493.5
41	0.35	1.64	0.18	0.87	13.79	48.29	0.79	357.86	0.3607	923.8	816.3
42	0.00	3.03	0.00	1.62	14.69	48.26	0.76	358.02	0.3753	191.0	151.3
43	2.86	6.67	1.53	3.56	14.82	47.71	0.21	359.46	0.3771	928.2	793.6
44	0.00	3.90	0.00	2.08	14.43	47.31	-0.19	0.50	0.3709	699.0	631.6
45	0.00	1.73	0.00	0.93	15.40	47.06	-0.44	1.09	0.3866	963.0	738.1
46	6.75	18.18	3.59	9.66	13.95	46.70	-0.80	2.16	0.3633	1143.2	813.5
47	0.00	1.56	0.00	0.84	16.14	46.63	-0.87	2.11	0.3988	863.0	612.1
48	0.00	3.55	0.00	1.90	15.08	46.54	-0.96	2.44	0.3817	627.0	620.4
49	0.00	2.16	0.00	1.14	13.22	46.39	-1.11	3.08	0.3516	832.0	732.1
50	0.00	2.60	0.00	1.40	16.17	46.35	-1.15	2.78	0.3995	601.0	535.3
51	0.69	1.38	0.37	0.74	14.47	46.26	-1.23	3.23	0.3720	1000.9	874.0
52	0.00	1.13	0.00	0.60	15.37	46.26	-1.24	3.10	0.3866	678.0	600.3
53	0.00	0.78	0.00	0.42	15.92	46.20	-1.30	3.18	0.3955	729.0	628.1
54	0.78	2.16	0.42	1.16	14.82	46.11	-1.39	3.57	0.3779	1022.0	801.8
55	0.00	1.47	0.00	0.79	14.95	46.05	-1.45	3.71	0.3800	652.0	641.4
56	0.00	1.38	0.00	0.75	15.82	46.01	-1.49	3.65	0.3941	734.0	551.2

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
