SDO HMI 2014-03-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.85 | 239.10 | 25.50 | 127.26 | 13.75 | 50.35 | 3.95 | 349.38 | 0.3675 | -123.6 | -67.8 | |
|
previous
or next observation for the same group /

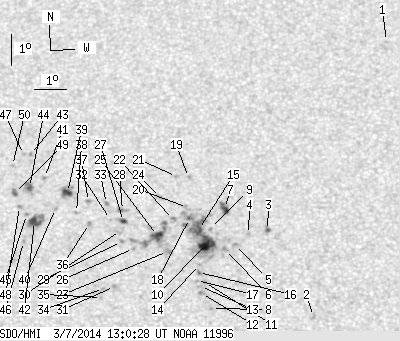

back to the solar disc SDO HMI 2014-03-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.13 | 0.00 | 0.64 | 19.96 | 57.93 | 11.53 | 337.54 | 0.4939 | -762.0 | -517.0 | |
| 0.00 | 2.86 | 0.00 | 1.51 | 11.02 | 55.18 | 8.78 | 334.34 | 0.3474 | -854.0 | -714.0 | |
| 0.87 | 3.20 | 0.46 | 1.71 | 13.71 | 53.85 | 7.45 | 340.54 | 0.3797 | -1011.8 | -785.8 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 13.57 | 53.26 | 6.86 | 341.86 | 0.3745 | -860.0 | -709.7 | |
| 0.00 | 2.25 | 0.00 | 1.20 | 13.25 | 52.85 | 6.45 | 342.61 | 0.3675 | -1003.0 | -782.6 | |
| 0.00 | 2.60 | 0.00 | 1.38 | 13.09 | 52.54 | 6.14 | 343.28 | 0.3635 | -906.0 | -820.8 | |
| 4.15 | 7.88 | 2.23 | 4.22 | 14.39 | 52.55 | 6.14 | 344.27 | 0.3839 | -935.1 | -661.1 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 11.22 | 52.07 | 5.67 | 342.96 | 0.3319 | -1022.0 | -824.8 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 13.75 | 52.10 | 5.69 | 344.91 | 0.3719 | -680.0 | -610.3 | |
| 15.40 | 80.22 | 8.19 | 42.68 | 13.27 | 51.96 | 5.56 | 344.91 | 0.3638 | -1183.7 | -610.6 | |
| 0.00 | 1.56 | 0.00 | 0.82 | 12.03 | 51.87 | 5.47 | 344.20 | 0.3439 | -975.0 | -855.1 | |
| 0.00 | 2.94 | 0.00 | 1.55 | 11.69 | 51.77 | 5.37 | 344.19 | 0.3380 | -994.0 | -799.7 | |
| 0.00 | 2.42 | 0.00 | 1.28 | 11.91 | 51.75 | 5.34 | 344.44 | 0.3414 | -759.0 | -715.5 | |
| 0.00 | 1.30 | 0.00 | 0.69 | 12.60 | 51.73 | 5.33 | 345.02 | 0.3523 | -624.0 | -481.6 | |
| 5.88 | -10.00 | 3.14 | -10.00 | 13.71 | 51.73 | 5.32 | 345.83 | 0.3698 | -1018.7 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 12.35 | 51.70 | 5.29 | 344.93 | 0.3481 | -812.0 | -773.6 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 12.09 | 51.63 | 5.23 | 344.92 | 0.3438 | -770.0 | -626.0 | |
| 0.78 | -10.00 | 0.42 | -10.00 | 14.06 | 51.46 | 5.06 | 346.74 | 0.3743 | -862.9 | 999999 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 15.38 | 51.46 | 5.06 | 347.52 | 0.3950 | -782.0 | -728.6 | |
| 0.00 | 1.99 | 0.00 | 1.06 | 14.41 | 51.40 | 5.00 | 347.09 | 0.3796 | -118.0 | -59.4 | |
| 0.00 | 1.21 | 0.00 | 0.65 | 15.40 | 51.09 | 4.69 | 348.43 | 0.3942 | -869.0 | -693.1 | |
| 0.00 | 2.25 | 0.00 | 1.20 | 14.02 | 50.96 | 4.56 | 347.97 | 0.3720 | -594.0 | -596.9 | |
| 0.00 | 5.54 | 0.00 | 2.93 | 13.00 | 50.76 | 4.36 | 347.91 | 0.3550 | 251.0 | 196.7 | |
| 0.00 | 3.55 | 0.00 | 1.90 | 14.72 | 50.58 | 4.18 | 349.32 | 0.3819 | -732.0 | -516.0 | |
| 5.71 | 27.69 | 3.03 | 14.70 | 13.51 | 50.46 | 4.06 | 348.99 | 0.3621 | -482.2 | 301.4 | |
| 0.00 | 0.95 | 0.00 | 0.50 | 13.09 | 49.72 | 3.32 | 350.78 | 0.3533 | 994.0 | 803.0 | |
| 1.90 | 4.76 | 1.01 | 2.53 | 13.95 | 49.43 | 3.02 | 351.93 | 0.3664 | 920.9 | 697.2 | |
| 0.00 | 4.67 | 0.00 | 2.49 | 14.30 | 49.40 | 3.00 | 352.13 | 0.3720 | 899.0 | 711.0 | |
| 0.00 | 1.82 | 0.00 | 0.96 | 13.31 | 49.36 | 2.95 | 351.86 | 0.3560 | 1001.0 | 881.7 | |
| 0.00 | 3.98 | 0.00 | 2.11 | 13.66 | 49.33 | 2.93 | 352.07 | 0.3616 | 358.0 | 632.2 | |
| 0.00 | 1.64 | 0.00 | 0.86 | 11.89 | 49.13 | 2.72 | 351.92 | 0.3322 | 877.0 | 738.5 | |
| 0.00 | 0.78 | 0.00 | 0.41 | 14.01 | 49.03 | 2.63 | 353.00 | 0.3666 | 747.0 | 610.4 | |
| 0.00 | 1.99 | 0.00 | 1.06 | 14.52 | 48.91 | 2.51 | 353.47 | 0.3746 | -807.0 | -653.4 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 11.82 | 48.79 | 2.39 | 352.88 | 0.3304 | 904.0 | 730.4 | |
| 0.00 | 1.04 | 0.00 | 0.54 | 11.54 | 48.73 | 2.32 | 352.96 | 0.3256 | 786.0 | 619.1 | |
| 0.00 | 2.08 | 0.00 | 1.10 | 13.88 | 48.38 | 1.98 | 354.68 | 0.3633 | 956.0 | 818.1 | |
| 0.00 | 2.68 | 0.00 | 1.43 | 14.58 | 48.36 | 1.96 | 354.92 | 0.3747 | 653.0 | 439.7 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 14.23 | 47.99 | 1.59 | 355.81 | 0.3685 | 820.0 | 574.4 | |
| 4.07 | 10.82 | 2.18 | 5.79 | 14.87 | 47.72 | 1.31 | 356.63 | 0.3786 | 948.8 | 352.1 | |
| 0.00 | 1.38 | 0.00 | 0.74 | 14.36 | 47.34 | 0.94 | 357.52 | 0.3700 | 924.0 | 695.0 | |
| 0.00 | 1.90 | 0.00 | 1.02 | 15.35 | 47.01 | 0.61 | 358.47 | 0.3859 | 906.0 | 633.8 | |
| 6.32 | 15.58 | 3.36 | 8.28 | 13.94 | 46.70 | 0.30 | 359.21 | 0.3629 | 1130.1 | 781.3 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 16.10 | 46.58 | 0.18 | 359.57 | 0.3978 | 741.0 | 595.4 | |
| 1.90 | 8.65 | 1.02 | 4.63 | 15.03 | 46.55 | 0.14 | 359.63 | 0.3806 | 1050.4 | 788.4 | |
| 0.00 | 1.56 | 0.00 | 0.83 | 14.17 | 46.45 | 0.05 | 359.87 | 0.3665 | 895.0 | 622.8 | |
| 0.00 | 1.21 | 0.00 | 0.64 | 13.30 | 46.36 | -0.04 | 0.12 | 0.3524 | 1009.0 | 774.6 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 16.10 | 46.36 | -0.04 | 0.10 | 0.3978 | 725.0 | 567.7 | |
| 0.00 | 1.82 | 0.00 | 0.97 | 14.42 | 46.24 | -0.16 | 0.43 | 0.3707 | 1133.0 | 844.4 | |
| 0.87 | 3.98 | 0.46 | 2.13 | 14.84 | 46.09 | -0.32 | 0.82 | 0.3775 | 1004.1 | 781.7 | |
| 0.00 | 1.47 | 0.00 | 0.79 | 15.74 | 46.02 | -0.38 | 0.94 | 0.3921 | 809.0 | 645.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
