SDO HMI 2014-03-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.15 | 56.02 | 3.09 | 28.09 | -16.33 | 45.09 | -1.32 | 172.61 | 0.1637 | 386.8 | 97.4 | |
|
previous
or next observation for the same group /

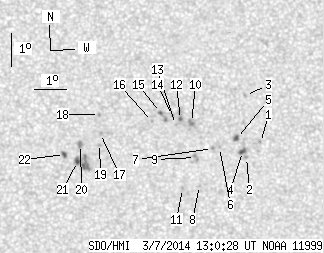

back to the solar disc SDO HMI 2014-03-07 13:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.35 | 48.46 | 2.06 | 192.28 | 0.1628 | -802.0 | -633.3 | |
| 0.00 | 1.30 | 0.00 | 0.65 | -16.80 | 48.03 | 1.63 | 189.30 | 0.1692 | 850.0 | 725.5 | |
| 0.00 | 1.47 | 0.00 | 0.74 | -14.93 | 47.99 | 1.58 | 191.28 | 0.1373 | 876.0 | 696.6 | |
| 1.56 | 3.29 | 0.78 | 1.65 | -16.62 | 47.91 | 1.50 | 188.76 | 0.1657 | 1109.5 | 875.0 | |
| 1.13 | 2.86 | 0.56 | 1.43 | -16.23 | 47.72 | 1.31 | 188.02 | 0.1586 | 1112.9 | 885.4 | |
| 0.00 | 1.13 | 0.00 | 0.56 | -16.50 | 47.19 | 0.79 | 184.68 | 0.1622 | 930.0 | 673.2 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -16.53 | 46.97 | 0.57 | 183.39 | 0.1625 | 975.0 | 788.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -17.64 | 46.57 | 0.17 | 180.88 | 0.1815 | 698.0 | 547.9 | |
| 0.00 | 3.29 | 0.00 | 1.65 | -16.80 | 46.45 | 0.04 | 180.25 | 0.1669 | 955.0 | 805.6 | |
| 0.00 | 3.55 | 0.00 | 1.78 | -15.75 | 46.32 | -0.08 | 179.49 | 0.1487 | 1087.0 | 887.4 | |
| 0.00 | 0.95 | 0.00 | 0.48 | -17.73 | 46.04 | -0.36 | 178.10 | 0.1832 | 847.0 | 740.7 | |
| 0.43 | 5.37 | 0.22 | 2.69 | -15.65 | 45.98 | -0.42 | 177.25 | 0.1472 | 1131.4 | 861.9 | |
| 0.00 | 0.61 | 0.00 | 0.30 | -15.80 | 45.83 | -0.57 | 176.30 | 0.1500 | 678.0 | 552.9 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -15.53 | 45.74 | -0.67 | 175.57 | 0.1454 | 1005.0 | 823.4 | |
| 0.43 | 4.41 | 0.22 | 2.21 | -15.44 | 45.37 | -1.03 | 173.05 | 0.1445 | 1013.4 | 864.3 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.71 | 45.12 | -1.28 | 171.68 | 0.1497 | 631.0 | 436.1 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -16.06 | 43.51 | -2.90 | 162.46 | 0.1619 | -707.0 | -549.7 | |
| 0.00 | 1.21 | 0.00 | 0.61 | -15.49 | 43.48 | -2.92 | 161.15 | 0.1526 | -971.0 | -740.2 | |
| 0.00 | 0.61 | 0.00 | 0.30 | -16.36 | 43.47 | -2.93 | 162.82 | 0.1670 | -528.0 | -647.0 | |
| 0.00 | 3.20 | 0.00 | 1.61 | -16.39 | 42.88 | -3.52 | 159.69 | 0.1707 | -1208.0 | -962.2 | |
| 1.47 | 13.41 | 0.74 | 6.75 | -16.90 | 42.78 | -3.63 | 160.20 | 0.1795 | -970.2 | -910.4 | |
| 1.13 | 2.77 | 0.57 | 1.39 | -16.69 | 42.38 | -4.03 | 157.76 | 0.1785 | -957.4 | -715.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
