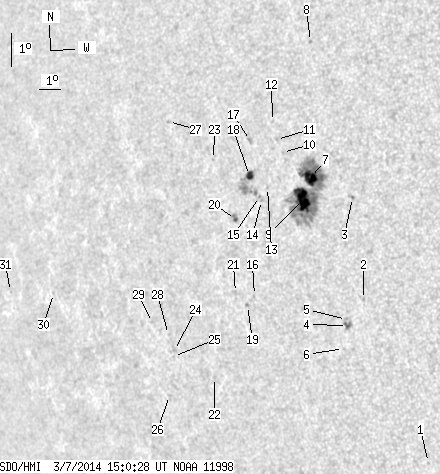

SDO HMI 2014-03-07 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 39.97 | 199.34 | 28.04 | 141.10 | -10.19 | 359.26 | -46.04 | 97.19 | 0.7162 | 566.6 | 307.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.52 | 0.00 | 0.35 | -18.43 | 3.27 | -42.04 | 109.49 | 0.6762 | 458.0 | 448.8 | |
| 0.00 | 1.30 | 0.00 | 0.88 | -13.35 | 1.87 | -43.44 | 101.83 | 0.6858 | 686.0 | 517.9 | |
| 0.00 | 0.95 | 0.00 | 0.64 | -10.30 | 2.02 | -43.29 | 97.35 | 0.6825 | -585.0 | -447.5 | |
| 0.00 | 4.67 | 0.00 | 3.22 | -14.06 | 1.02 | -44.29 | 102.78 | 0.6969 | 780.0 | 630.3 | |
| 0.00 | 1.47 | 0.00 | 1.01 | -13.88 | 1.02 | -44.28 | 102.52 | 0.6967 | 493.0 | 452.3 | |
| 0.00 | 0.78 | 0.00 | 0.54 | -14.73 | 0.67 | -44.63 | 103.69 | 0.7016 | 418.0 | 340.6 | |
| 12.46 | 141.02 | 8.65 | 98.27 | -9.55 | 0.37 | -44.93 | 96.28 | 0.7030 | 1007.0 | 387.7 | |
| 0.00 | 1.21 | 0.00 | 0.84 | -5.53 | 0.91 | -44.40 | 90.49 | 0.6987 | 665.0 | 558.8 | |
| 22.41 | -7.00 | 15.67 | -7.00 | -10.17 | 359.92 | -45.38 | 97.17 | 0.7085 | 910.4 | 999999 | |
| 0.00 | 0.43 | 0.00 | 0.31 | -8.71 | 359.30 | -46.00 | 95.12 | 0.7162 | 572.0 | 516.8 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -8.30 | 359.11 | -46.20 | 94.55 | 0.7188 | 603.0 | 464.5 | |
| 0.00 | 0.95 | 0.00 | 0.68 | -7.75 | 359.01 | -46.29 | 93.80 | 0.7202 | 473.0 | 284.1 | |
| 0.00 | 0.78 | 0.00 | 0.56 | -9.68 | 358.48 | -46.83 | 96.49 | 0.7259 | 568.0 | 486.0 | |
| 0.00 | 0.87 | 0.00 | 0.62 | -10.04 | 358.14 | -47.16 | 96.99 | 0.7298 | 719.0 | 592.4 | |
| 0.00 | 0.95 | 0.00 | 0.69 | -9.91 | 358.08 | -47.23 | 96.82 | 0.7306 | 660.0 | 592.6 | |
| 0.00 | 0.78 | 0.00 | 0.57 | -12.81 | 357.20 | -48.10 | 100.76 | 0.7411 | 403.0 | 458.0 | |
| 0.00 | 2.77 | 0.00 | 2.01 | -8.22 | 357.97 | -47.33 | 94.51 | 0.7323 | 649.0 | 522.2 | |
| 4.41 | 22.15 | 3.21 | 16.14 | -9.25 | 357.75 | -47.55 | 95.93 | 0.7345 | 585.2 | 42.9 | |
| 0.00 | 1.12 | 0.00 | 0.83 | -13.08 | 356.81 | -48.49 | 101.10 | 0.7457 | 537.0 | 492.7 | |
| 0.69 | 3.46 | 0.51 | 2.56 | -10.49 | 356.88 | -48.43 | 97.62 | 0.7445 | 61.0 | -263.9 | |
| 0.00 | 2.51 | 0.00 | 1.87 | -12.64 | 356.37 | -48.94 | 100.50 | 0.7505 | 579.0 | 427.3 | |
| 0.00 | 0.87 | 0.00 | 0.67 | -15.06 | 354.65 | -50.65 | 103.59 | 0.7706 | -138.0 | -157.3 | |
| 0.00 | 0.87 | 0.00 | 0.65 | -8.63 | 356.23 | -49.08 | 95.14 | 0.7524 | 348.0 | 362.9 | |
| 0.00 | 1.04 | 0.00 | 0.83 | -14.07 | 352.99 | -52.31 | 102.24 | 0.7877 | -450.0 | -442.0 | |
| 0.00 | 0.78 | 0.00 | 0.62 | -14.25 | 352.89 | -52.42 | 102.46 | 0.7889 | -545.0 | -439.4 | |
| 0.00 | 1.64 | 0.00 | 1.34 | -15.37 | 352.28 | -53.02 | 103.85 | 0.7956 | -533.0 | -414.6 | |
| 0.00 | 1.47 | 0.00 | 1.15 | -7.31 | 354.33 | -50.97 | 93.53 | 0.7743 | 216.0 | 224.1 | |
| 0.00 | 0.61 | 0.00 | 0.49 | -13.58 | 352.85 | -52.45 | 101.60 | 0.7890 | -626.0 | -541.6 | |
| 0.00 | 1.12 | 0.00 | 0.92 | -13.14 | 352.17 | -53.13 | 101.04 | 0.7960 | -544.0 | -484.4 | |
| 0.00 | 0.69 | 0.00 | 0.64 | -11.76 | 347.25 | -58.06 | 99.36 | 0.8441 | -440.0 | -406.8 | |
| 0.00 | 0.35 | 0.00 | 0.34 | -11.43 | 344.78 | -60.52 | 99.05 | 0.8660 | 332.0 | 211.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
