SDO HMI 2014-03-07 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.10 | 60.75 | 3.56 | 30.48 | -16.39 | 45.28 | -0.03 | 180.10 | 0.1631 | 163.8 | 200.0 | |
|
previous
or next observation for the same group /

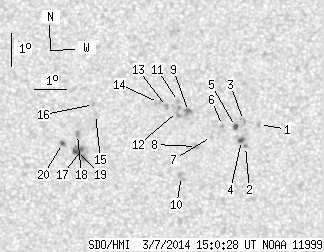

back to the solar disc SDO HMI 2014-03-07 15:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 0.87 | -16.10 | 48.48 | 3.17 | 199.01 | 0.1639 | -845.0 | -614.7 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -16.77 | 48.05 | 2.75 | 195.48 | 0.1727 | 799.0 | 663.4 | |
| 0.00 | 2.34 | 0.00 | 1.17 | -15.98 | 47.98 | 2.67 | 196.42 | 0.1594 | 628.0 | 656.5 | |
| 1.64 | 2.86 | 0.83 | 1.43 | -16.59 | 47.92 | 2.62 | 195.08 | 0.1692 | 1153.5 | 951.6 | |
| 1.47 | 2.68 | 0.74 | 1.35 | -16.17 | 47.73 | 2.43 | 194.69 | 0.1613 | 1105.0 | 785.4 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -16.14 | 47.33 | 2.03 | 192.38 | 0.1592 | 930.0 | 732.8 | |
| 0.00 | 1.38 | 0.00 | 0.69 | -16.47 | 46.99 | 1.69 | 189.98 | 0.1637 | 754.0 | 588.2 | |
| 0.00 | 2.68 | 0.00 | 1.35 | -16.77 | 46.53 | 1.22 | 187.04 | 0.1677 | 1078.0 | 817.0 | |
| 0.00 | 4.33 | 0.00 | 2.17 | -15.72 | 46.28 | 0.97 | 186.32 | 0.1491 | 1172.0 | 988.7 | |
| 0.00 | 5.02 | 0.00 | 2.53 | -17.68 | 46.06 | 0.76 | 183.99 | 0.1825 | 817.0 | 790.2 | |
| 0.00 | 1.56 | 0.00 | 0.78 | -15.42 | 45.97 | 0.66 | 184.48 | 0.1434 | 964.0 | 813.2 | |
| 0.00 | 5.97 | 0.00 | 2.99 | -15.72 | 45.94 | 0.63 | 184.12 | 0.1485 | 969.0 | 871.2 | |
| 0.00 | 1.99 | 0.00 | 1.00 | -15.57 | 45.60 | 0.29 | 181.94 | 0.1456 | 1036.0 | 935.1 | |
| 0.00 | 3.37 | 0.00 | 1.69 | -15.45 | 45.35 | 0.05 | 180.31 | 0.1435 | 589.0 | 598.7 | |
| 0.00 | 0.87 | 0.00 | 0.43 | -15.80 | 43.40 | -1.90 | 167.90 | 0.1531 | -986.0 | -867.5 | |
| 0.00 | 1.04 | 0.00 | 0.52 | -15.50 | 43.34 | -1.96 | 167.09 | 0.1482 | -1007.0 | -814.4 | |
| 0.78 | 14.88 | 0.39 | 7.48 | -16.85 | 42.95 | -2.35 | 166.79 | 0.1725 | -1191.0 | -849.5 | |
| 0.00 | 3.03 | 0.00 | 1.52 | -16.40 | 42.84 | -2.47 | 165.47 | 0.1654 | -1136.0 | -960.7 | |
| 2.34 | -17.00 | 1.17 | -17.00 | -16.91 | 42.80 | -2.51 | 166.04 | 0.1741 | -998.2 | 999999 | |
| 0.87 | 2.08 | 0.43 | 1.04 | -16.67 | 42.37 | -2.94 | 163.34 | 0.1720 | -941.3 | -782.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
