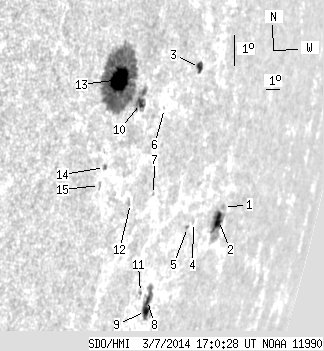

SDO HMI 2014-03-07 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 50.43 | 255.95 | 59.73 | 293.33 | -13.53 | 109.51 | 65.30 | 258.44 | 0.9016 | 333.6 | 201.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 17:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.73 | 0.00 | 2.73 | -15.05 | 117.21 | 73.01 | 256.48 | 0.9513 | 130.0 | 155.9 | |
| 6.75 | 26.47 | 10.58 | 41.42 | -15.47 | 117.06 | 72.85 | 256.05 | 0.9503 | 432.1 | 264.0 | |
| 3.89 | 5.97 | 5.01 | 7.69 | -11.33 | 112.47 | 68.27 | 260.71 | 0.9246 | 475.4 | 264.7 | |
| 0.00 | 1.04 | 0.00 | 1.46 | -15.79 | 114.83 | 70.63 | 255.80 | 0.9379 | 261.0 | 199.2 | |
| 0.00 | 1.12 | 0.00 | 1.56 | -15.99 | 114.43 | 70.23 | 255.60 | 0.9355 | -23.0 | -48.9 | |
| 0.00 | 0.69 | 0.00 | 0.82 | -12.81 | 110.44 | 66.24 | 259.19 | 0.9104 | -238.0 | -201.5 | |
| 0.00 | 1.04 | 0.00 | 1.26 | -15.37 | 111.07 | 66.87 | 256.36 | 0.9142 | -466.0 | -406.9 | |
| 2.68 | 20.50 | 3.48 | 26.68 | -18.44 | 112.87 | 68.67 | 252.99 | 0.9257 | -490.9 | -111.3 | |
| 5.19 | -8.00 | 6.76 | -8.00 | -18.77 | 112.98 | 68.78 | 252.63 | 0.9264 | -502.6 | 999999 | |
| 4.33 | 190.56 | 4.82 | 202.13 | -12.85 | 108.69 | 64.49 | 259.21 | 0.8976 | -267.8 | 250.2 | |
| 0.00 | 1.30 | 0.00 | 1.63 | -18.28 | 112.13 | 67.93 | 253.17 | 0.9210 | -537.0 | -457.6 | |
| 0.00 | 0.95 | 0.00 | 1.09 | -15.81 | 109.58 | 65.38 | 255.90 | 0.9037 | 117.0 | 196.7 | |
| 27.59 | -10.00 | 29.08 | -10.00 | -12.31 | 106.99 | 62.79 | 259.87 | 0.8846 | 823.6 | 999999 | |
| 0.00 | 1.90 | 0.00 | 2.02 | -14.97 | 107.23 | 63.03 | 256.86 | 0.8861 | -429.0 | -343.8 | |
| 0.00 | 2.68 | 0.00 | 2.84 | -15.52 | 107.19 | 62.99 | 256.23 | 0.8857 | -393.0 | -316.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
