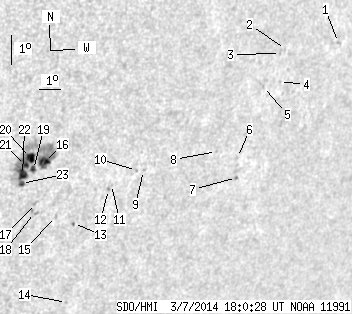

SDO HMI 2014-03-07 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.73 | 109.49 | 18.15 | 75.52 | -26.40 | 85.43 | 41.78 | 239.02 | 0.6977 | -471.4 | -360.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-03-07 18:00:28 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.64 | 0.00 | 1.36 | -21.50 | 96.74 | 53.09 | 248.49 | 0.8018 | 558.0 | 422.8 | |
| 0.00 | 0.43 | 0.00 | 0.34 | -21.96 | 94.21 | 50.56 | 247.50 | 0.7775 | 473.0 | 375.0 | |
| 0.00 | 0.61 | 0.00 | 0.47 | -22.10 | 94.02 | 50.37 | 247.28 | 0.7759 | 578.0 | 501.4 | |
| 0.00 | 1.04 | 0.00 | 0.82 | -22.95 | 94.40 | 50.75 | 246.28 | 0.7812 | 253.0 | 280.9 | |
| 0.00 | 1.38 | 0.00 | 1.08 | -23.17 | 93.70 | 50.05 | 245.85 | 0.7746 | 662.0 | 558.6 | |
| 0.00 | 0.69 | 0.00 | 0.54 | -25.44 | 93.59 | 49.94 | 242.96 | 0.7783 | 620.0 | 545.0 | |
| 0.00 | 1.04 | 0.00 | 0.82 | -26.05 | 93.90 | 50.25 | 242.26 | 0.7827 | 441.0 | 498.2 | |
| 0.00 | 0.69 | 0.00 | 0.53 | -25.35 | 92.48 | 48.83 | 242.80 | 0.7672 | 540.0 | 458.2 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -26.23 | 89.37 | 45.72 | 240.77 | 0.7383 | -472.0 | -407.9 | |
| 0.00 | 0.86 | 0.00 | 0.63 | -26.25 | 89.05 | 45.40 | 240.63 | 0.7351 | -679.0 | -597.4 | |
| 0.00 | 0.35 | 0.00 | 0.25 | -26.78 | 88.13 | 44.48 | 239.62 | 0.7274 | -552.0 | -510.8 | |
| 0.00 | 1.04 | 0.00 | 0.75 | -26.95 | 88.07 | 44.42 | 239.38 | 0.7274 | -642.0 | -548.0 | |
| 0.00 | 1.21 | 0.00 | 0.86 | -28.13 | 87.03 | 43.38 | 237.43 | 0.7211 | 556.0 | 537.3 | |
| 0.00 | 0.95 | 0.00 | 0.70 | -30.63 | 88.06 | 44.41 | 234.60 | 0.7411 | -587.0 | -497.8 | |
| 0.00 | 1.47 | 0.00 | 1.03 | -27.98 | 86.13 | 42.48 | 237.28 | 0.7112 | -441.0 | -401.3 | |
| 7.35 | 89.87 | 5.02 | 61.00 | -26.31 | 84.86 | 41.21 | 239.02 | 0.6913 | -813.8 | -460.8 | |
| 0.00 | 1.90 | 0.00 | 1.31 | -27.64 | 85.06 | 41.41 | 237.28 | 0.6988 | -781.0 | -562.5 | |
| 0.00 | 3.37 | 0.00 | 2.33 | -27.92 | 85.15 | 41.50 | 236.94 | 0.7009 | -582.0 | -610.3 | |
| 2.16 | -16.00 | 1.47 | -16.00 | -26.59 | 84.50 | 40.85 | 238.48 | 0.6885 | -712.4 | 999999 | |
| 6.23 | -16.00 | 4.22 | -16.00 | -26.23 | 84.22 | 40.56 | 238.86 | 0.6839 | -1037.2 | 999999 | |
| 2.42 | -16.00 | 1.64 | -16.00 | -26.49 | 84.11 | 40.46 | 238.44 | 0.6839 | -1166.8 | 999999 | |
| 6.75 | -16.00 | 4.57 | -16.00 | -26.78 | 84.10 | 40.45 | 238.04 | 0.6850 | -924.2 | 999999 | |
| 1.82 | -16.00 | 1.23 | -16.00 | -27.07 | 84.18 | 40.53 | 237.69 | 0.6870 | -707.2 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
